GA155 Grid Adaptor for Purus Mini Drains & PK155 Grates – Secure Wet Room Fit
Versatile grid adaptor for Purus Mini wet room drains and PK155 stainless steel grates. Ensures secure, flush fit over vinyl flooring. Ideal for use with Maxxus floor formers and compatible with NOOD water traps. Two Riser rings are supplied with the adaptor. 147mm overall size. 109mm diameter.

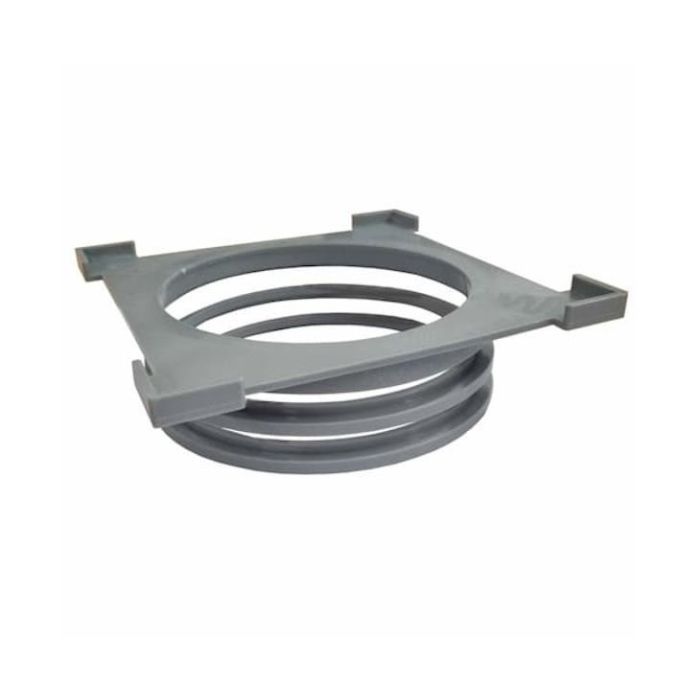

The PK155 Grid adaptor, is for use with the Purus Mini Drains and the Purus PK155 Grids. The grid adaptor allows the user to easily install the compatible Purus grates/grids and wastes.
Technical details:
- Use the appropriate number of riser rings for your tile thickness
- Supplied with 2 riser rings, extra riser rings can be purchased separately - Please contact us
- Width and Length of 147mm
- Diameter of 109mm
- Number of rings for tile thickness: 6-8mm tile = 0 rings, 10-12mm = 1 ring, up to 15mm = 2 rings, up to 18mm = 3 rings, 20mm tiles = 4 rings
Compatible Grids:
- Purus PK155 Stainless Steel Art Deco Design Grate for Tiled Floors - 154x154mm (SKU: 7138358)
- Purus PK155 Stainless Steel Drop Design Grate for Tiled Floors - 154x154mm (SKU: 7138360)
- Purus PK155 Stainless Steel Classic Design Grate for Tiled Floors - 154x154mm (SKU: 7138359)
- Purus PK155 Stainless Steel Wave Design Grate for Tiled Floors - 154x154mm (SKU: 7138361)
- Purus SS PVD Coated Grid for Tiled Floors, 154x154mm - Black (SKU: 153872-843)
- Purus SS PVD Coated Grid for Tiled Floors, 154x154mm - Copper (SKU: 153872-842)
- Purus SS PVD Coated Grid for Tiled Floors, 154x154mm - Brushed Brass (SKU: 153872-845)
Compatible Wastes:
- Purus Minimax 2-Part Wet Floor Gulley, Horizontal Outlet (SKU: 52719)
- Purus Mini Oden 50 Horizontal Outlet (SKU: 7113535UK)
- Purus Minimax 50 Horizontal Outlet (SKU: 7113764UK)
- Purus Mini Brage 50 Vertical Outlet (SKU: 7113539UK)
- Purus Mini Brage 110 Vertical Outlet (SKU: 7113538UK)
Warranty:
- Life of Tiling guarantee
| Manufacturer | Purus |
|---|---|
| Grate Material / Finish | Plastic / Grey |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 2pm |
| Returns Status | Returnable in 14 days |
