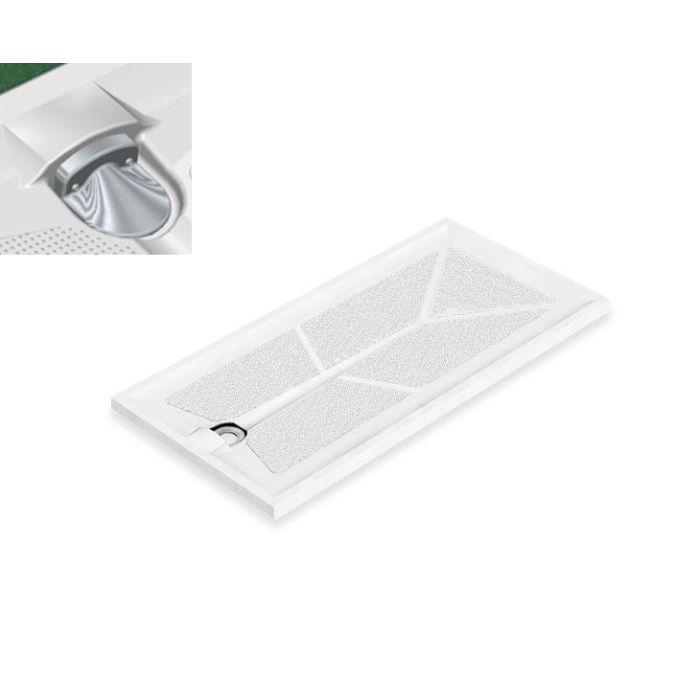

AKW Braddan Surface Mounted SHWR Tray, w/ Upward Pumped Waste - Choice of Size, OPT Ramps
AKW Braddan 40mm thick choice of size shower tray, for creating corner and alcove, surface-mounted (order doors separately). Slip resistance textured surface for added safety. A strong tray with integral added strength. Designed for unbreachable floors where a gravity waste is not possible. No under-tray foaming required. Central waste position at the end of the tray, with a 35mm fall inside the tray to the factory fitted upward pumped waste. Includes 3x separate tiling upstands to ensure a watertight seal between tray and tiles and secure fitting of tray. Compatible with AKW shower enclosures and door sets from the Larenco, Level Best, Silverdale, and Standard screen ranges. Maximum load capacity of 30 stone / 190kg. Optional 20 and 40mm high ramps.
The AKW Braddan shower tray is available in a large range of sizes and offers easy installation. The tray is 40mm thick and can be installed in a corner or alcove and is suitable for unbreachable floors because of the upward pumped waste, surface-mounted.
The trays are unhanded with a centre waste outlet the upward pumped waste is included.
The 1800mm long trays are supplied with a ‘trim to length’ kit, allowing up to 300mm to be cut off. Note: trimmed trays are only suitable for alcove installations, not corners.
Create the perfect shower room with the addition of a compatible AKW shower enclosure or door set from the Larenco, Level Best, Silverdale® and Standard Screens ranges.
Key benefits:
- Suitable for use on unbreachable floors
- Can be installed as a surface-mounted step-in shower enclosure (order shower doors or screen separately)
- The tray creates a visually defined showering area useful for those with visual impairment
- Slip resistance textured surface a safer showering experience for the user
- Excellent water drainage with a 35mm fall inside the tray
- 40mm thick multi-purpose tray
- Integral added strength for extra peace of mind
- No under tray foaming is needed for quick and easy installation
- Weight limit: 30 stone/190kg
- Non-handed shower trays for both left or right-handed installations
- Upward pumped waste included
- 1800mm trays can be cut down to 1500mm and supplied with a trim to length kit
- Three separate tiling upstands supplied. Ensures a watertight seal between tray and tiles and secure fitting of tray
- Pipe duct kits available to avoid the re-routing of existing pipework (order separately)
- Optional ramps: 20mm and 40mm straight and corner ramp kits are available - Provides easy access for semi-recessed and surface mounted installations
Waste:
- Upward pumped waste included
Technical details:
- Tray height: 40mm
- Material composition:
- - GRP (Glass-reinforced plastic) all trays except:
- - SMC (sheet moulded compound) 1200x700; 1200x820; 1300x700; 1420x700; 1700x700 & 1800x700mm
- Weight limit: 30 stone/190kg
- Fall to Waste: 35mm
- Supplied with Pumped upward waste (pump not included)
- To be used in conjunction with a AKW Digi-pump shower waste pump (not included)
- Screen Compatibility: Larenco, Level Best, Silverdale® and Standard Screens
Optional - Aluminium Ramp Kits:
- Product Code: 25000 - 20mm Straight Ramp (length 1800mm)
- Product Code: 25001 - 20mm Corner Ramp (for 900x900mm tray)
- Product Code: 25002 - 40mm Straight Ramp (length 1800mm)
- Product Code: 25003 - 40mm Corner Ramp (for 900x900mm tray)
- Product Code: 25012 - 20 or 40mm Corners Made-to-Measure (Order separately)
Warranty:
- Lifetime Warranty (please refer to AKW’s terms and conditions)
Manufacturer Product Codes:
- Tray with Upward Pump Waste code: 16523, 16471, 16473, 16083, 16529, 16168, 16197, 16361, 16090, 16175, 16135, 16521, 16100, 16141, 16082, 16109, 16150, 16496, 16532, 16443, 16121, 16129, 16161, 16120
| Manufacturer | AKW / Contour |
|---|---|
| Brand / Model | AKW - Braddan |
| Cut to Length Range (mm) | 1500-1850 |
| Tray Size (mm) | 800x800, 820x820, 900x900, 1000x700, 1000x800, 1000x1000, 1200x650, 1200x700, 1200x760, 1200x820, 1200x900, 1300x700, 1300x820, 1400x900, 1420x700, 1420x820, 1500x700, 1500x820, 1600x700, 1700x700, 1800x700, 1800x820, 1800x900 |
| Handing | Unhanded |
| Entry Configuration | Front Entry (Alcove), Corner Entry |
| Step-in Height (mm) | Level Access - 0, Semi-recessed - 20, Low Level Step-in - 40 |
| Thickness of Tray (mm) | 40 |
| Waste Compatibility | Pumped Waste |
| Tray Edge for Floor Finish | Not Applicable |
| Ramp or Step Available | Ramp |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 1.30pm |
| Returns Status | Returnable in 14 days |
