Bellamy House showroom
Bathroom Area
Bathroom Area
Bellamy House Showroom

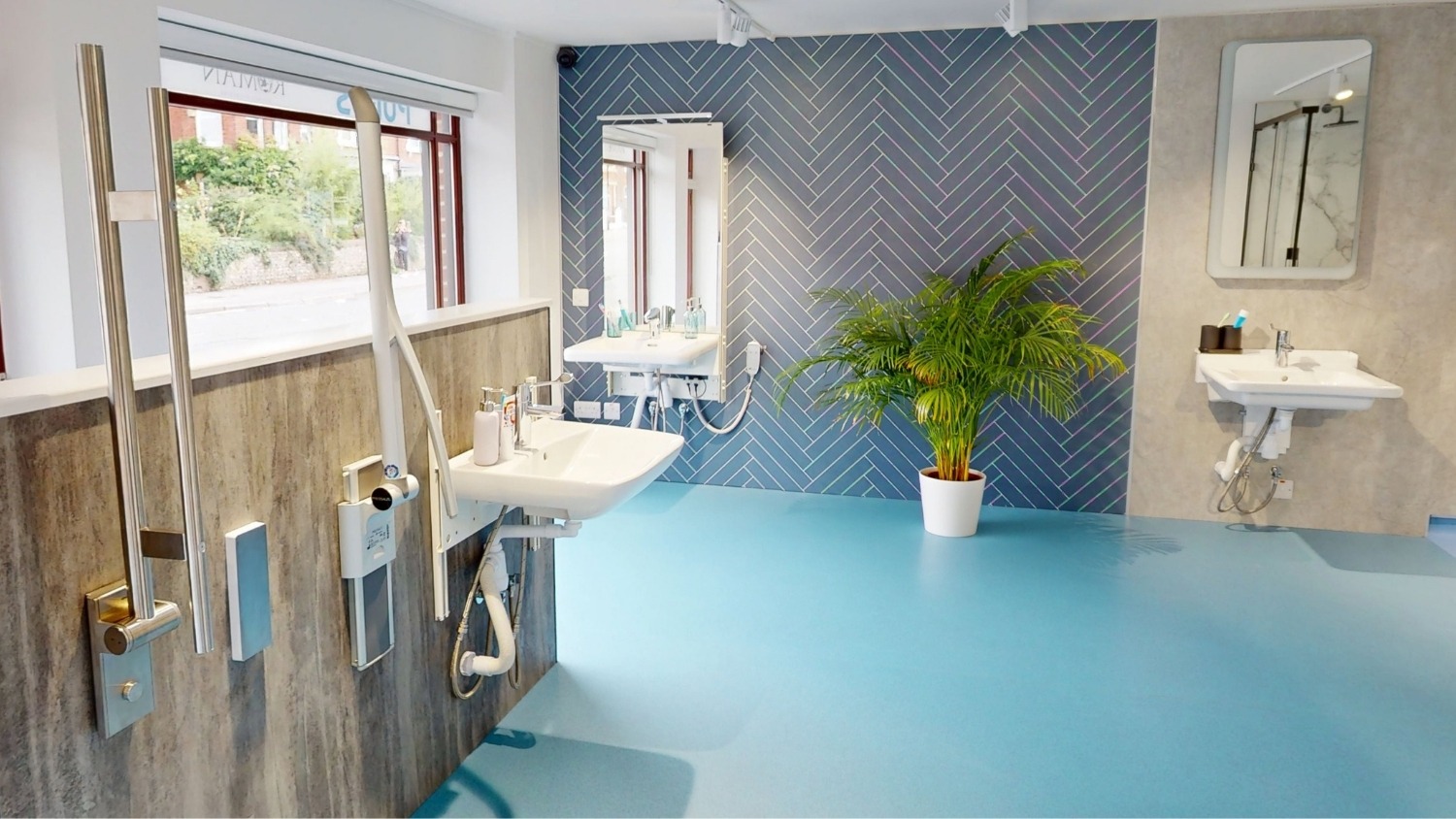

Bathroom Area
A multi-user accessible bathroom demonstrating three different Granberg height-adjustable washbasin systems, fold-away support rails and practical waterproof wall finishes.
Three approaches to washbasin adjustment
Compare occasional manual, gas-assisted and fully electric
height adjustment within the same bathroom display.
9 highlighted features
Explore washbasin lifts, support rails and waterproof wall finishes.
Multi-user bathroom
Compare products designed around different users and levels of adjustment.
Three Granberg washbasin lifts
Basicline 403, 433 and 406 are all demonstrated in one room.
View in person or online
Visit Bellamy House or explore the bathroom through Matterport.
One bathroom, different users
Compare different approaches to accessible washing and support
The Bathroom Area demonstrates how an accessible washroom can accommodate different users without relying on one permanently fixed washbasin height or one type of support product.
Three Granberg systems show the difference between occasional manual adjustment, gas-assisted adjustment and fully electric height control. Folding and removable support rails demonstrate how physical support can also be present when required and moved away when it is not.
The display is completed with Showerwall wall panels, allowing practical bathroom products and decorative waterproof finishes to be viewed together as part of a complete room.
What the room demonstrates
Accessibility can adapt without making the room feel clinical
01
Different washbasin heights
Compare three methods of changing the working height.
02
Support when it is needed
Fold or remove support rails when additional space is required.
03
Practical finishes
See accessible equipment alongside modern waterproof wall panels.
Interactive room overview
Explore the features in the Bathroom Area
Select a numbered marker to move to its product description.
Desktop: hover over a number to see its label.
Mobile: use the numbered key below.
Interactive 3D walkthrough
Walk through the Bathroom Area from home
Move around the bathroom, inspect each washbasin from different positions and understand how the support products and surrounding space relate to one another.
Should the embedded tour not display,
open the tour in a new window
.
Granberg Basicline 403
Simple manual height adjustment for occasional changes
The Basicline 403 provides a straightforward way to alter washbasin height where changes are only required occasionally. The complete basin assembly moves along the wall-mounted track before being secured at the chosen height.
300mm adjustment
A wide stepless adjustment range for different users.
Manual operation
Designed for occasional rather than frequent height changes.
Compact basin
Kitchen display uses the Granberg 425-011 washbasin.
Accessible tap option
Displayed with a long-lever thermostatic mixer.
Granberg Basicline 433
Move the washbasin, mirror and lighting together
The Basicline 433 is the most immediately adaptable system in this room. Electric operation allows the basin height to change continuously using a wired control, while the integrated mirror and lighting travel with the washbasin.
250mm electric movement
Continuously variable height adjustment.
Moving mirror
The mirror follows the washbasin as its height changes.
Integrated LED light
Lighting forms part of the complete lifting assembly.
Safety protection
A safety stop responds if the lift encounters an obstruction.
Granberg Basicline 406
Manual adjustment with gas-spring assistance
The Basicline 406 sits between a fixed-height basin and a fully electric lift. A built-in gas spring assists the movement, with the basin locking into a series of useful height positions.
190mm adjustment
Provides a useful range for occasional height changes.
12mm increments
Select from closely spaced fixed height positions.
Gas assistance
Reduces the effort required during manual adjustment.
Rear storage shelf
Provides useful space behind the washbasin.
Explore by bathroom zone
See how the products work within a complete room
The nine highlighted features are grouped around support, adjustable washing and the different bathroom finishes displayed.

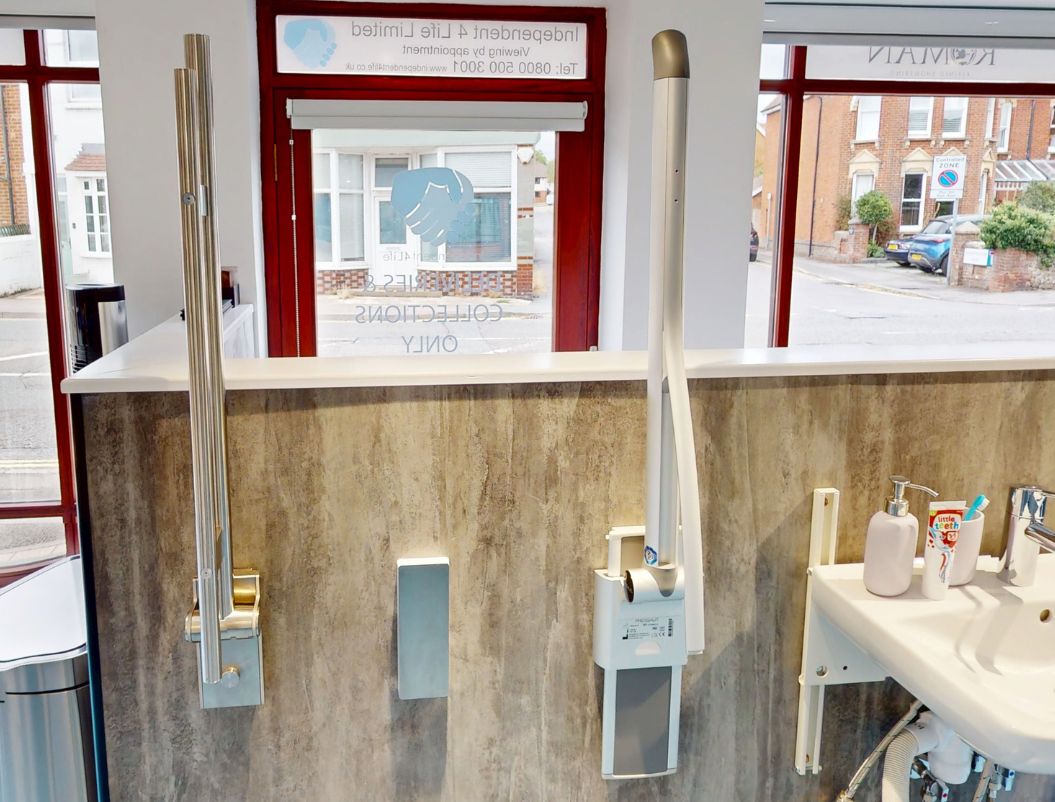

Products 1–3
Support and transfer
Removable and fold-away rails from HEWI and Pressalit.
View support products ↓
Products 4–6
Manual and electric washing
Compare Basicline 403 with the fully electric Basicline 433.
View washbasin products ↓

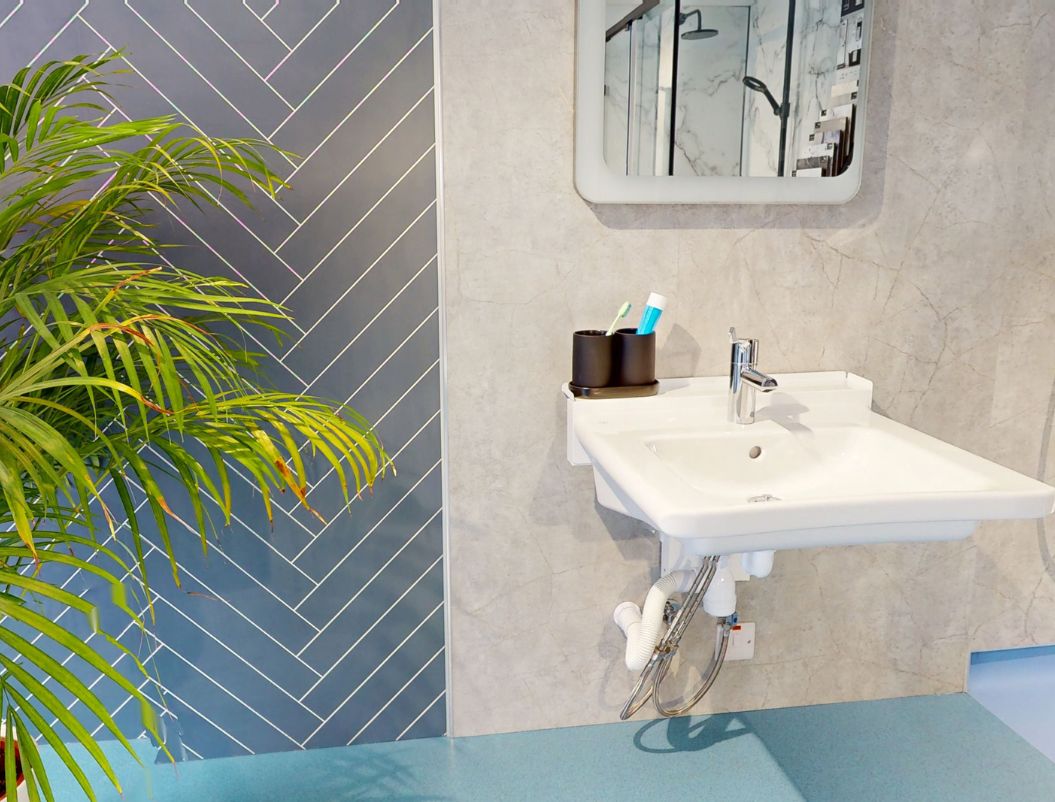

Products 7–9
Gas-assisted washing and finishes
Basicline 406 sits between two contrasting Showerwall finishes.
View right-hand products ↓Detailed product directory
Products currently highlighted in the Bathroom Area
Select any product row below to open its description, principal features and product or enquiry link.
1–3 Removable and fold-away support

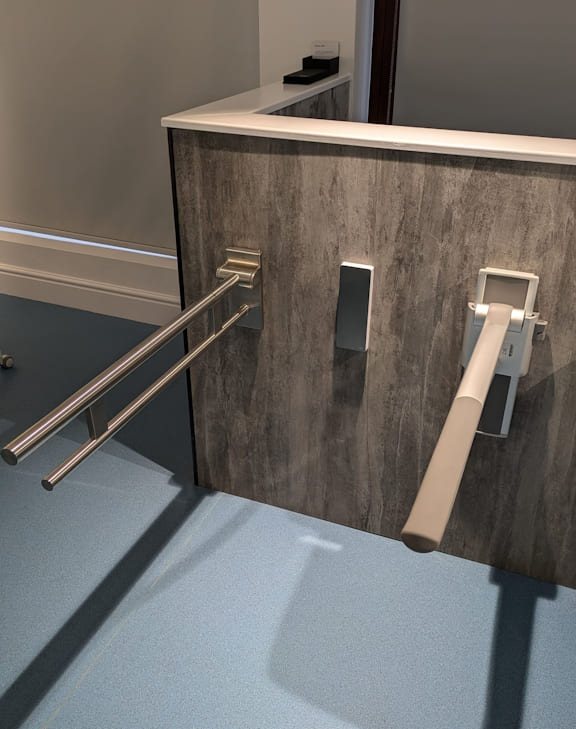

1 HEWI Mobile Duo Grab Rail Removable folding support rail with two gripping levels Removable support
The HEWI Duo Mobile support rail provides two parallel stainless-steel gripping levels and can be folded away when the support is not required.
- Two parallel gripping levels
- Stainless-steel construction
- Folding support arm
- Friction hinge
- Concealed mounting arrangement
- Suitable for wet and dry areas

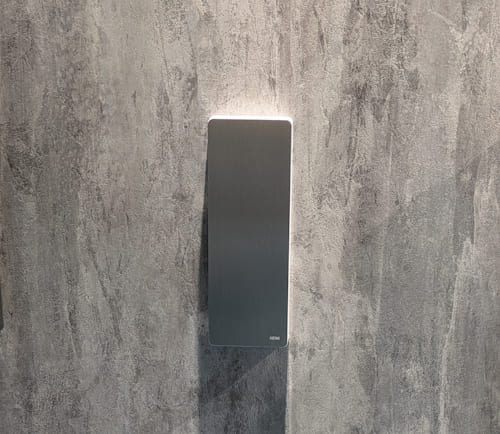

2 HEWI System 900 Mounting Plate & Cover Discreet wall fitting for removable HEWI support rails Support accessory
The System 900 mounting plate allows a compatible HEWI Mobile support rail to be removed when it is not needed. A matching cover conceals the wall mounting point.
- Designed for HEWI Mobile rails
- Allows the rail to be removed
- Cover conceals the fixing point
- High-quality stainless steel
- Choice of finishes
- Useful in multi-user bathrooms
3 Pressalit PLUS Counterbalanced Support Arm Foldable support arm with height adjustment Adjustable support
Display code: R391485xxx
A foldable Pressalit PLUS support arm with a counterbalanced mechanism and up to 240mm of height adjustment. The showroom rail is displayed in Anthracite.
- Up to 240mm height adjustment
- Counterbalanced movement
- Ergonomic grip
- Folds against the wall
- Soft slip-resistant surface
- Suitable for wet environments
4–6 Manual and electric washbasin adjustment

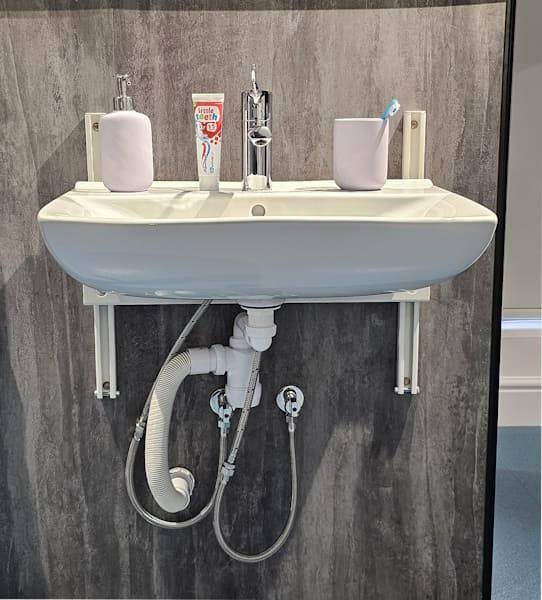

4 Granberg Basicline 403-11-05 Manual height-adjustable washbasin for occasional adjustment Feature: washbasin lift
Product code: 403-11-05
A manually height-adjustable washbasin system intended for situations where the working height only needs to be altered occasionally.
- 300mm stepless adjustment
- Manual bolt-secured adjustment
- 425-011 compact washbasin
- Overflow and plug
- Flexible waste arrangement
- Displayed with long-lever thermostatic tap
The manual height adjustment requires two able persons when the basin height is being changed.

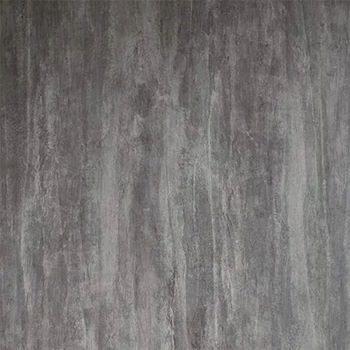

Explore Basicline 403 →5 Showerwall Washed Charcoal Décor Textured concrete-style waterproof wall panelling Wall finish
Product code: SW58
Washed Charcoal is a concrete-inspired décor from the Showerwall Impression Collection with a textured surface designed to provide a more tactile, organic appearance.
- Exterior-grade MDF core
- High-pressure laminate surface
- Non-porous hygienic finish
- Grout-free installation
- Proclick and square-cut options
- Matt Black trims displayed
6 Granberg Basicline 433-10-05 Electric washbasin lift with moving mirror and LED lighting Feature: electric lift
Product code: 433-10-05
A complete electrically height-adjustable washbasin system with an integrated mirror and LED lighting that move together with the basin.
- 250mm continuous electric adjustment
- Wired hand control
- Integrated mirror
- Integrated LED lighting
- 425-010 ergonomic washbasin
- Safety-stop system
The showroom display is shown with the Granberg 425-110 touch-free infrared mixer tap with side temperature control.
Explore Basicline 433 →7–9 Gas-assisted washing and waterproof finishes
7 Showerwall Nordic Herringbone Blue Décor Waterproof patterned wall panel with Proclick joining system Wall finish
Product code: SWT01
The distinctive blue herringbone wall behind the central basin is formed using 600mm-wide waterproof panels with a mechanical Proclick joint.
- 600mm-wide panel
- High-pressure plywood laminate
- 100% waterproof
- No grout required
- Proclick locking system
- Can be installed over existing tiles

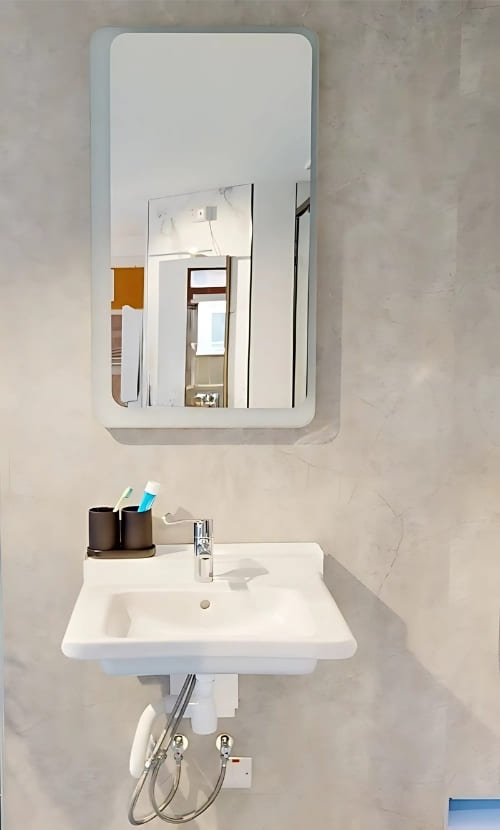

8 Granberg Basicline 406-1 Gas-assisted manually height-adjustable washbasin bracket Feature: gas assisted
Display: 406-1 / 425-004
The Basicline 406 uses a gas spring to assist manual washbasin adjustment. The left-hand toggle releases the mechanism so the basin can move between a series of closely spaced height positions.
- 190mm adjustment range
- 12mm height increments
- Manual gas-assisted operation
- Left-hand adjustment toggle
- Storage shelf behind washbasin
- 425-004 ergonomic basin displayed
Displayed with the Inta IT1006CP Safe Touch thermostatic mixer tap with a 190mm lever.
Explore Basicline 406 →9 Showerwall Silver Slate Matt Décor Low-reflectivity slate-style bathroom wall panelling Wall finish
Product code: SW71
Silver Slate Matt is a slate-inspired décor from the Showerwall Majestic Collection with a soft-touch, low-reflectivity finish.
- Exterior-grade MDF core
- High-pressure laminate surface
- Matt slate-style finish
- Non-porous hygienic surface
- Proclick and square-cut options
- Satin Silver trims displayed
See the display in use
Bathroom Area demonstration
Watch a short overview of the bathroom display before exploring the room in person or through the 3D showroom.
Why visit the showroom?
Compare the washbasin systems for yourself
Find a comfortable washbasin height
Assess basin position from a wheelchair, chair or standing position.
Operate the electric Basicline 433
See how the basin, mirror and lighting move together.
Compare manual adjustment
Understand the difference between Basicline 403 and gas-assisted 406.
Check knee and leg clearance
Approach each washbasin and compare basin depth and plumbing space.
Try the support products
Compare removable and fold-away support rails and their grip positions.
Compare the bathroom finishes
See the different Showerwall colours, textures and jointing systems in person.
Guided showroom consultation
Explore the Bathroom Area with our team
Book a one-to-one visit at Bellamy House or arrange a guided virtual tour. We can demonstrate each washbasin lift, discuss support positioning and compare the products relevant to your bathroom project.
