Granberg Kitchen One

A flexible multi-user kitchen centred around an electrically height-adjustable island, accessible storage, shallow sinks and adaptable working areas.

Explore the kitchen ↓ Enter the 3D tour Book a showroom tour

Designed to be experienced See worktops, cabinets and storage move within a complete operational kitchen.

15 highlighted features Explore lifting systems, storage, sinks, taps and accessories.

Multi-user design Working areas can adapt for seated and standing users.

Granberg centrepiece Featuring the Centerlift 6490H, Diago 504 and Sidelift 6400.

View in person or online Visit Bellamy House or explore the kitchen in Matterport.

One kitchen, different users

Designed around flexibility rather than a single fixed height

Kitchen One demonstrates how several accessible systems can work together within one coordinated room. The central island, side worktop and wall storage each move independently, allowing the layout to adapt to different users and activities.

The room combines Granberg lifting systems with shallow insulated sinks, hanging cabinets, pull-out storage and practical kitchen accessories.

Use the numbered overview to identify each feature, then select the product rows below to view specifications and product links.

What the room demonstrates

Accessible design can still feel natural

Shared working heights

Adjust work surfaces for seated and standing use.

Storage that moves

Lower cabinets, shelves and contents towards the user.

Integrated details

Combine shallow sinks, services and movable storage.

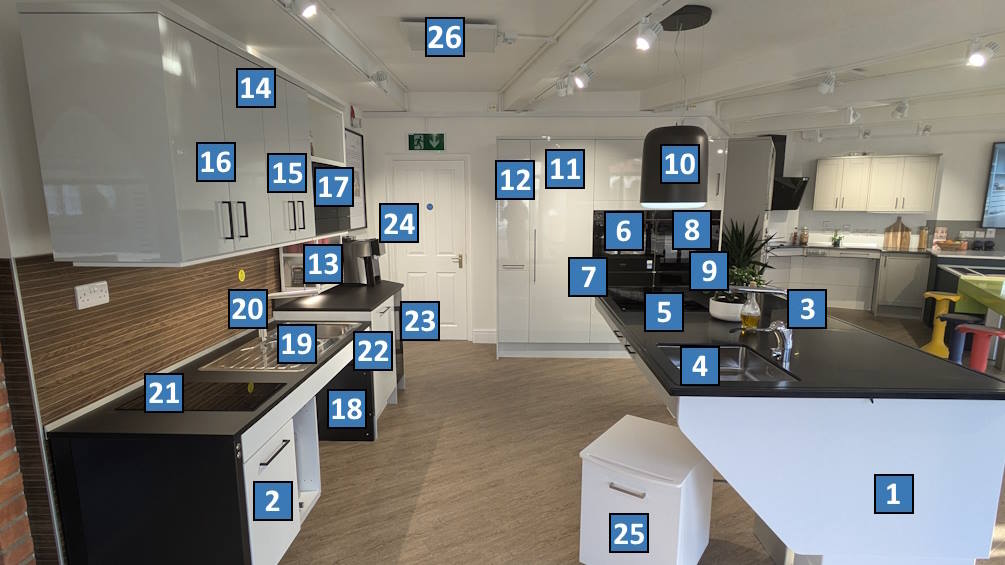

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

1 Centerlift 6490H 2 Hanging Cabinets 3 Granberg Mixer Tap 4 EST-500 Sink 5 Caple Vela Hood 6 VS TAL Larder 7 Verti 840KA 8 Diago 504 9 Vibo Baskets 10 iMove Shelves 11 Sidelift 6400 12 ES25 Sink 13 Quooker Front Tap 14 Two-Zone Hob 15 Mini Cabinets

Kitchen One centrepiece

Granberg Centerlift 6490H

An entire kitchen island that adjusts to the user

The Centerlift allows the complete island worktop to rise or lower electrically. Kitchen One demonstrates how the system can incorporate a shallow sink, accessible tap and hanging storage.

400kg maximum load Designed for substantial worktop installations.

400mm adjustment Change the island height for different users.

Hanging storage Cabinets can move with the work surface.

Made to specification Available in a range of frame widths.

Explore the Centerlift → View showroom details

Granberg Diago 504

Bring complete wall cabinets forward and down

The Diago moves complete wall cabinets diagonally towards the front edge of the worktop, bringing the cabinet and its contents closer to the user.

450mm movement Cabinets travel diagonally towards the user.

Up to 150kg Supports multiple cabinets and their contents.

1200–1800mm widths Suitable for substantial storage arrangements.

Safety protection Stop plates respond to an obstruction.

Explore the Diago → View showroom details

Accessible wall storage

Central height-adjustable kitchen island

Products 1–5

The central island

Centerlift, hanging cabinets, tap, shallow sink and cooker hood.

View island products ↓

Products 6–10

Wall and larder storage

Electric cabinet lifts, pull-down shelves and tall storage.

View storage products ↓

Products 11–15

The adjustable side worktop

Sidelift, shallow sink, Quooker tap, hob and movable cabinets.

View worktop products ↓

1–5 Central island and overhead extraction

1 Granberg Centerlift 6490H Electrically height-adjustable kitchen island system FEATURE: ACCESSIBLE ISLAND SYSTEM

Product code: 6490HA-01

The defining feature of Kitchen One. The Centerlift raises and lowers the complete island work surface and can carry hanging cabinets, drawers, a shallow sink and other integrated components.

Electric operation
400mm height adjustment
Maximum load: 400kg
White or anthracite frames
Widths from 990–3290mm
Mini control buttons included

View Centerlift products →

2 Granberg Hanging Cabinets Storage designed to move with the island or worktop Moving storage

Products: 760, 761 and 762 series

Compact cabinets designed to hang beneath compatible Centerlift and Sidelift frames, allowing useful storage to move with the worktop.

Widths from 300–800mm
Drawer and waste-bin options
Under-sink versions
Soft-closing storage
White cabinet finish
Compatible safety accessories

Shop hanging cabinets →

3 Granberg 60210 Monobloc Mixer Tap Long-lever mixer designed for accessible sinks Accessible control TAP

Product code: 60210

A single-lever mixer with an extra-tall spout and extended operating lever, developed for accessible sinks and lifting systems.

190mm operating lever
Adjustable swivel range
Flow-control adjustment
Temperature limiter
Ceramic cartridge
Appliance isolation connection

View the mixer tap →

4 Granberg ErgoSteel Trendline EST-500 Insulated 120mm-deep shallow kitchen sink Shallow sink

Product code: 618EST-500

A shallow-bowl sink that reduces the depth occupied beneath the worktop and includes flexible waste components and underside heat insulation.

120mm bowl depth
540 × 440mm overall size
Several mounting methods
Pre-fitted insulation
Flexible waste kit
Multiple finishes

Explore Trendline sinks →

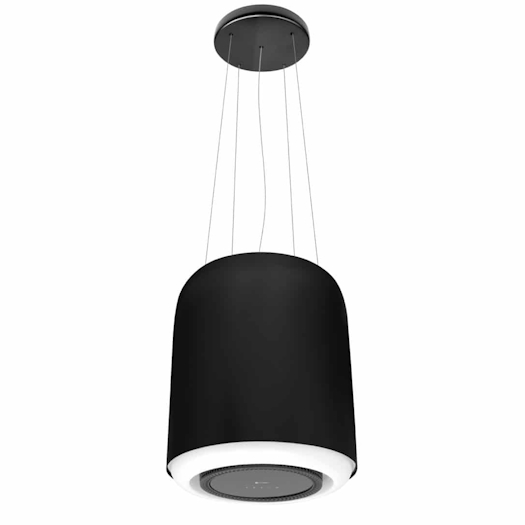

5 Caple Vela Island Cooker Hood Compact recirculating hood above the island showroom only

Product code: VEL410BK

A cylindrical island hood with adjustable suspension, remote control, integrated lighting and recirculating operation.

410mm body width
Adjustable hanging height
Remote and touch controls
LED ring light
Three extraction speeds
Recirculating installation

Ask about this display →

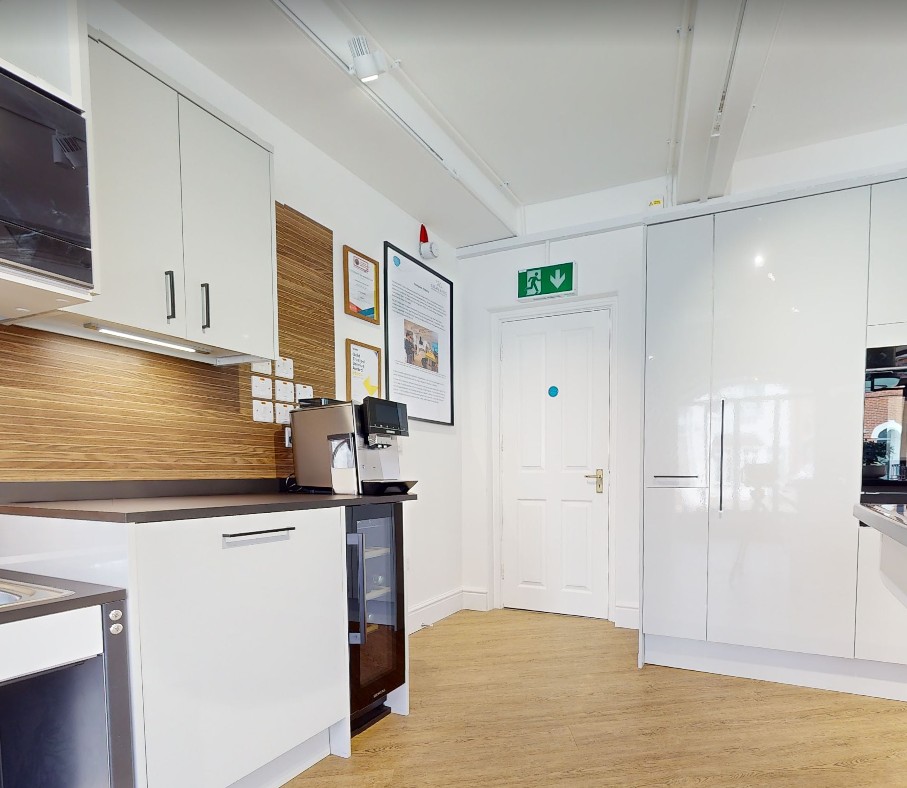

6–10 Accessible wall and larder storage

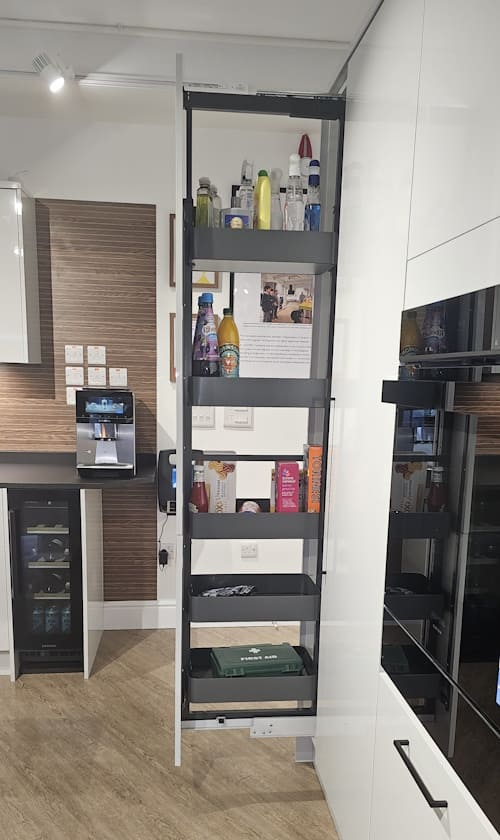

6 Vauth-Sagel VS TAL Pull-Out Larder Full-height pull-out kitchen storage Tall storage

A tall pull-out storage system that presents several organised shelf levels when the cabinet front is opened.

Full-height movement
Soft-closing action
Closed shelf sides
Concealed brackets
Planero-style finish
Multi-level storage

Explore pull-out larders →

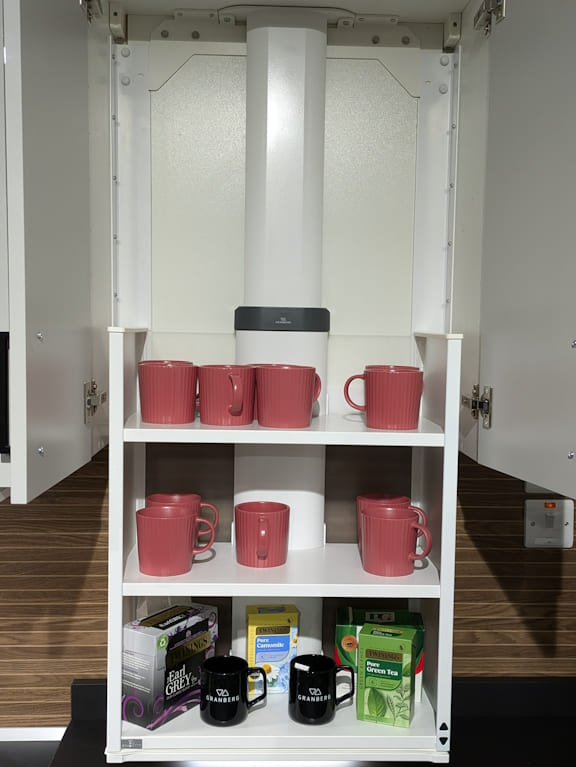

7 Granberg Verti 840KA Vertical internal wall-cabinet shelf lift Electric shelf system

Product code: 840KA

The Verti fits inside a wall cabinet and lowers its shelves vertically towards the worktop while the cabinet exterior remains fixed.

Electric vertical movement
Up to 485mm travel
Several cabinet widths
Retrofit potential
Different control options
Safety-stop system

Explore Verti lifts →

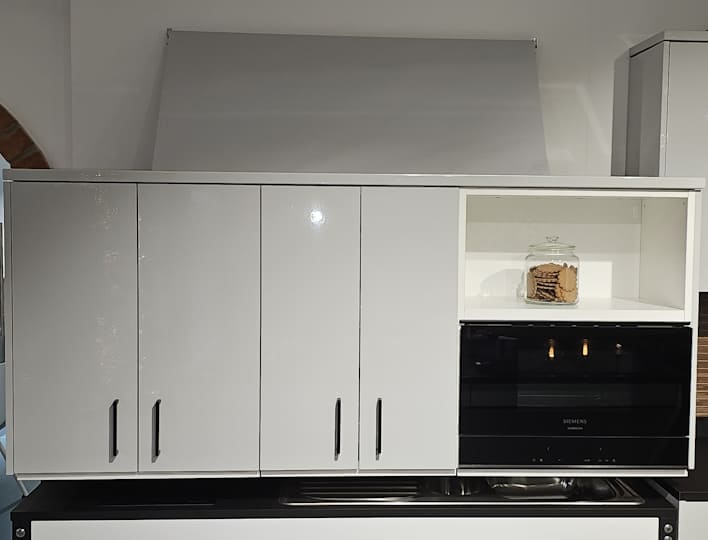

8 Granberg Diago 504 Diagonal lift for complete wall cabinets FEATURE: Electric cabinet system

Product code: 504-115

The Diago lowers one or more complete wall cabinets diagonally towards the worktop edge, bringing the cabinet and its contents closer to the user.

450mm diagonal movement
Maximum load: 150kg
Widths from 1200–1800mm
Multiple-cabinet support
Several controls
Safety-stop plates

Explore the Diago 504 →

9 Vibo Two-Tier Pull-Down Baskets Gas-assisted manual wall-unit storage Manual storage

Product code: 504.59.231

A manual two-tier wire basket system that lowers from a wall cabinet using an integrated handle and gas-assisted movement.

500 or 600mm cabinets
Chrome-plated steel
Gas-spring assistance
Up to 420mm drop
Integrated handle
3kg per basket

Shop pull-down storage →

10 Kesseböhmer iMove Pull-Down Shelves Two-tier internal wall-cabinet shelf system Manual storage

Display code: KIMOVE600DOA

A two-tier pull-down shelf system displayed with an extended handle to make operation easier.

Up to 340mm movement
4kg per tray
Several cabinet widths
Multiple finishes
Optional handle extension
Manual operation

Shop pull-down storage →

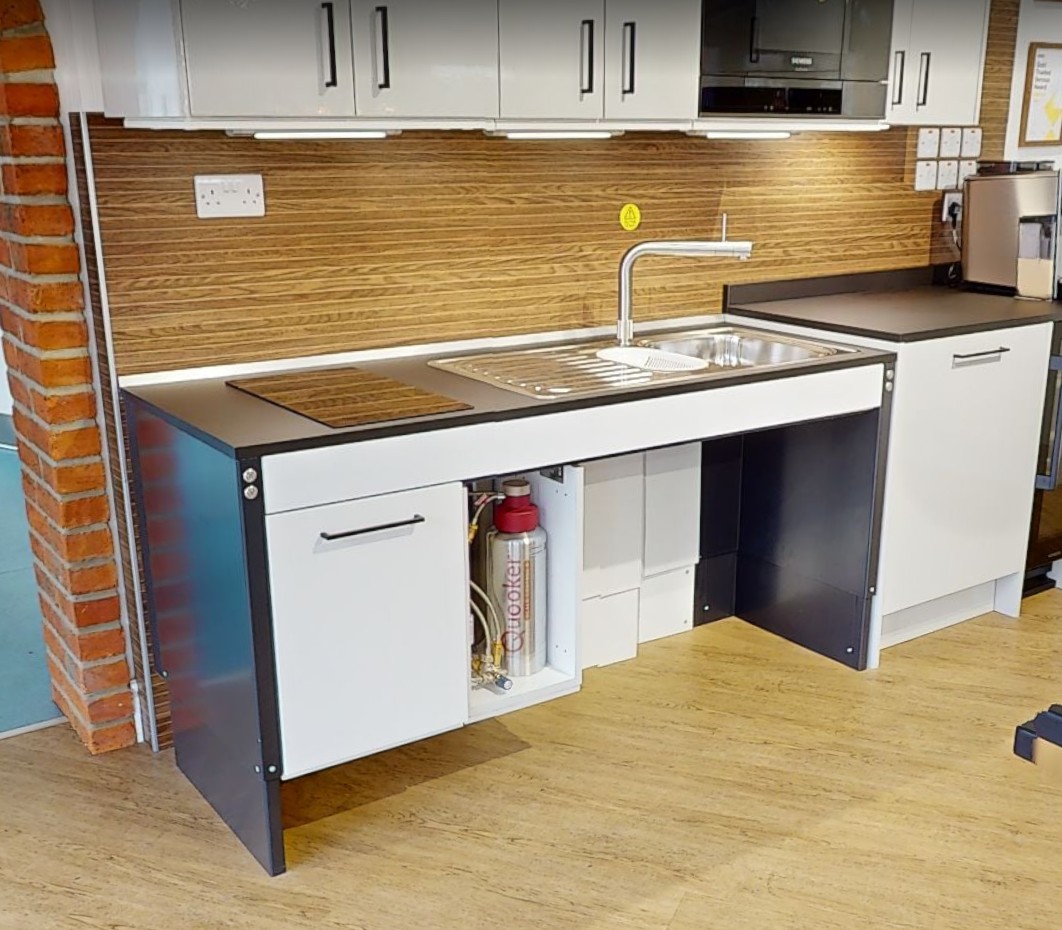

11–15 Adjustable side worktop and movable storage

11 Granberg Sidelift 6400 Floor-mounted adjustable worktop lift FEATURE: worktop lift system

Display code: 6400HA-1590-07

A floor-mounted worktop lift that can incorporate a sink, hob and compatible hanging storage.

Electric adjustment
700–1000mm working height
400kg lifting power
Custom widths
Optional hanging cabinets
Safety-stop system

Explore Sidelift systems →

12 Granberg ES25 Shallow 1½-Bowl Sink Insulated sink with draining board Shallow sink

Product code: 618ES25-097

A reversible stainless-steel sink with shallow insulated bowls, designed to preserve more space beneath an adjustable worktop.

120mm bowl depths
Inset or undermount
Insulated undersides
Flexible waste kit
Reversible orientation
971 × 496mm size

View the ES25 sink →

13 Quooker Front Hot-Water Tap Hot, cold and boiling water from one tap Showroom only

The showroom installation combines the Quooker Front tap with a Combi tank and Scale Control R protection.

Hot, cold and boiling water
Front-mounted control
Combi-tank installation
Scale protection
Filter warning
Showroom consultation

Ask about Quooker →

14 Two-Zone Inset Induction Hob Compact plug-in hob for lighter cooking Specialist product

A compact inset induction hob intended for lighter cooking duties and connection through a standard 13-amp plug.

Two induction zones
Inset installation
13-amp connection
No dedicated hard wiring
Compact format
Available by enquiry

Ask about this hob →

15 Granberg Mini Cabinets on Wheels Movable storage beneath lifting systems Flexible storage

Products: 770-040-01 and 771-040-01

Compact mobile cabinets that can sit beneath selected Granberg lifting systems and move away when clear knee space is required.

Drawer or waste-bin versions
Soft-close storage
Four main castors
Additional stability wheel
Integrated grip
Pre-assembled

Shop mini cabinets →

Should the embedded tour not display, open the tour in a new window .

Why visit the showroom?

Experience the movements for yourself

Find a comfortable worktop height

Compare seated and standing working positions.

Check knee and leg clearance

Explore the space beneath shallow sinks and worktops.

Operate different controls

See how each lifting system responds during adjustment.

Lower wall storage

Compare Verti shelf movement with Diago cabinet movement.

Compare sink depth and reach

Review shallow bowls and accessible tap positioning.

Understand the complete layout

Consider circulation, storage and preparation together.

Guided showroom consultation

Explore Kitchen One with our team

Book a one-to-one appointment at Bellamy House or arrange a guided virtual tour. We can demonstrate the lifting systems and discuss which products are relevant to your project.

01 Operate the showroom products in person.

02 Join a guided video tour from home or work.

03 Discuss layouts, dimensions and compatibility.

Book a one-to-one tour → Contact our team
