Adjustment
Manual or electric?
Choose crank adjustment where the preferred height changes periodically, or powered adjustment where frequent changes and easier operation are important.
300mm manual · 400mm electricToilet Lifters
Accessible Toilets
Toilet Lifters

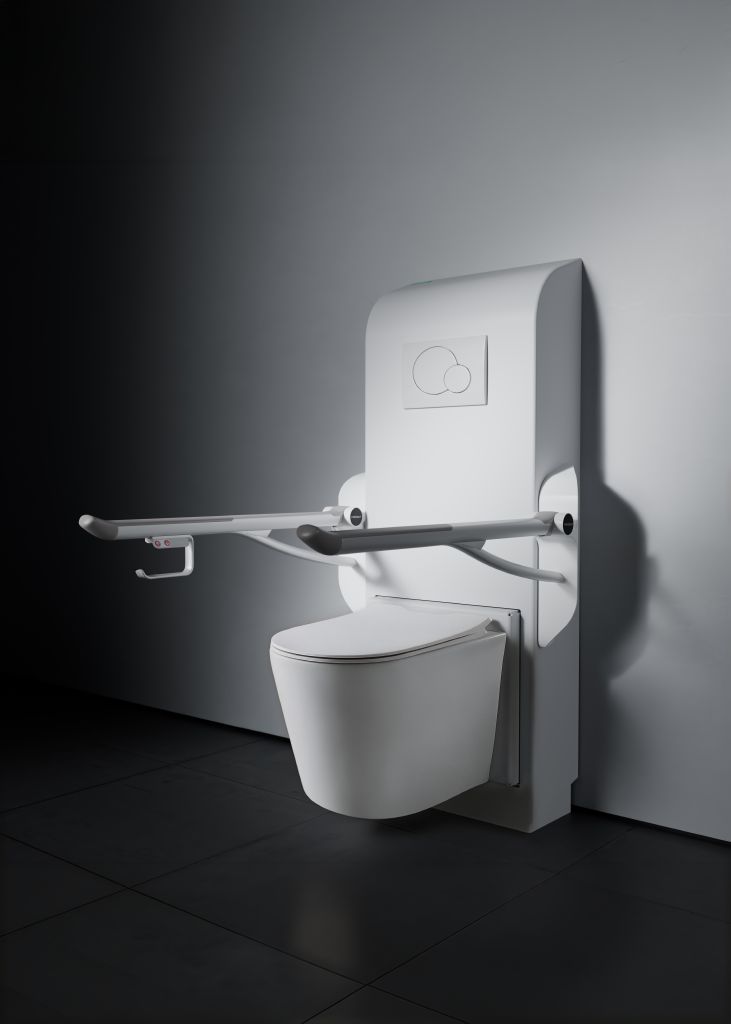

Adjust the position of the complete WC to suit different users, transfer methods and working heights. Choose manual or electric Pressalit SELECT lifters, with TL2 models adding integrated side profiles for compatible folding support arms.
Manual
300mm adjustment
Crank-handle operation from approximately 425–725mm
Electric
400mm adjustment
Powered movement from approximately 425–825mm
TL1 or TL2
Choose support integration
TL2 adds vertical side profiles for compatible PLUS support arms
Drainage
Wall or floor outlet
Current SELECT lifters accommodate both principal WC outlet arrangements
Change the whole WC height
The pan itself moves rather than relying only on a raised toilet
seat or permanently high installation.
Adapt for different users
One toilet can work at different heights for wheelchair users,
ambulant users and different transfer techniques.
Manual or powered
Choose occasional crank adjustment or electric control where
height changes are required more frequently.
Add support with TL2
Integral side profiles allow compatible Pressalit PLUS support
arms to be positioned with the toilet.

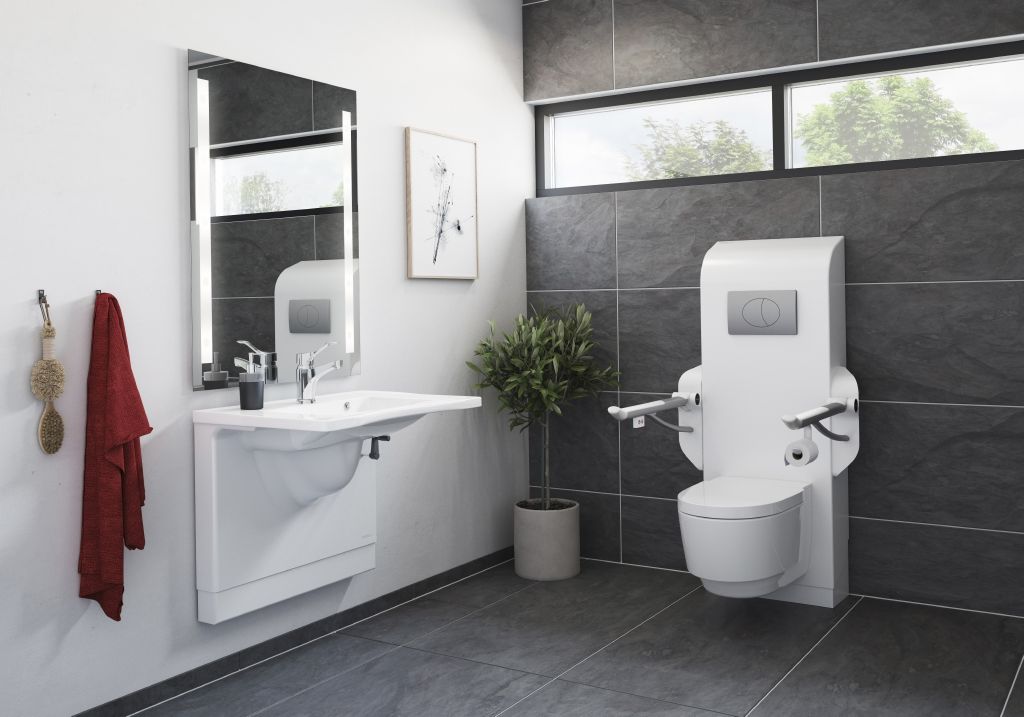

Put the toilet at the height the user needs
A fixed WC height does not suit every transfer
Toilet height can have a major effect on sitting down, standing up and transferring from a wheelchair. A low position may suit one person while another user may benefit from a substantially higher pan.
A toilet lifter changes the position of the complete wall-hung WC, creating a much wider adjustment range than a conventional fixed installation or raised seat.
That also makes the system useful in multi-user bathrooms. Manual adjustment can suit installations where the preferred height changes occasionally, while electric versions allow much more frequent adjustment with a wired hand control.
Start here
Explore toilet lifters & compatible support
Start with the toilet lifter itself. If folding support arms need to move vertically with the WC installation, select a TL2 lifter and then choose the appropriate compatible arm.
01
Primary range

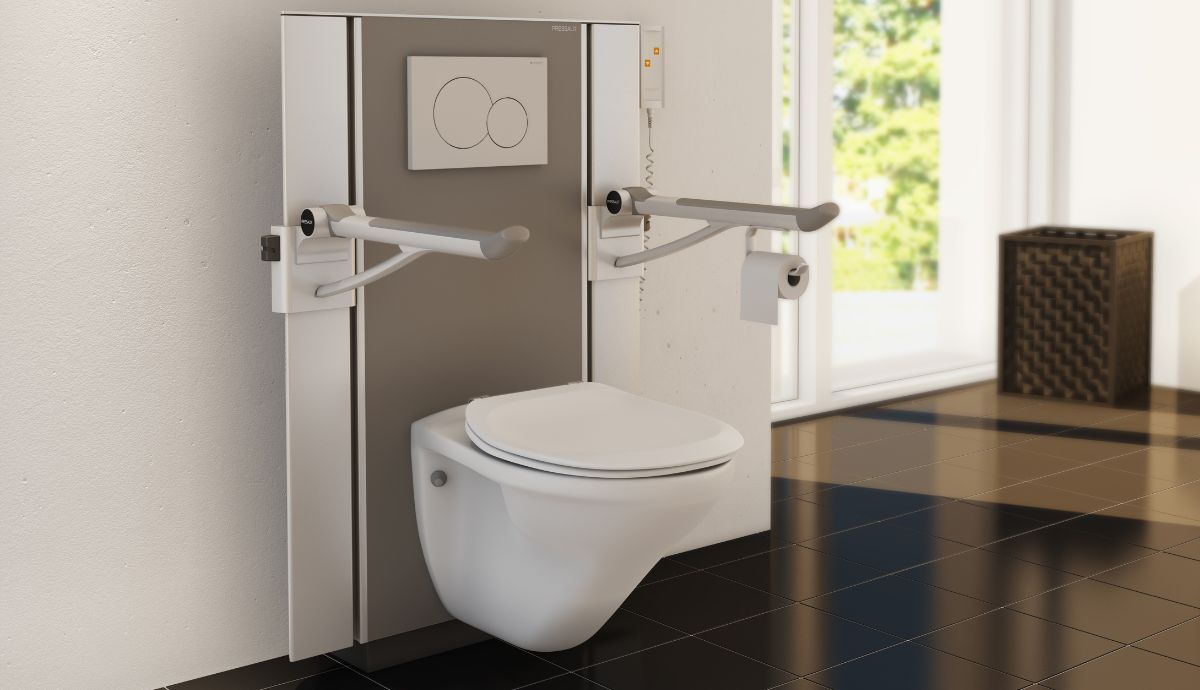

Pressalit SELECT TL1 & TL2
Manual & Electric - Toilet Pan Lifters
Height-adjustable WC mounting systems available as TL1 or TL2, with manual crank or powered adjustment and versions for both floor and wall waste outlets.
TL1
TL2
Manual
Electric
Floor outlet
Wall outlet
Shop Toilet Pan Lifters
02
TL2 support
Accessories
Folding counterbalanced PLUS support arms designed for the vertical side profiles of SELECT TL2 toilet lifters, available in different lengths and handed versions, as well as WC pans.
700mm
850mm
Left / right
Counterbalanced
Shop TL2 Support Arms
Configure the lifter
Four decisions define the system
Pressalit's current SELECT range is easier to understand once the installation is broken into movement, support, drainage and WC choice.
Support
TL1 or TL2?
TL1 provides the height-adjustable WC system alone. TL2 adds integral vertical profiles so compatible Pressalit support arms can form part of the installation.
TL2 when moving support arms are requiredWaste connection
Wall or floor outlet?
Select the lifter version around the proposed or existing WC drainage arrangement before ordering and before services are finalised.
Both outlet formats availableWC
Which toilet pan?
Pan projection, seat, support-arm length and any shower-toilet functions need to be considered together rather than selecting the lifter in isolation.
Build one compatible toilet systemSELECT TL1 or TL2
The difference is built into the sides of the lifter
Both series move the toilet vertically. The important distinction is whether the installation also needs vertically adjustable Pressalit PLUS support arms.
Height adjustment without integral arm profiles
TL1 is the simpler SELECT lifter where the WC needs to move but support arms do not need to mount directly onto the sides of the lifter.
Manual or electric:
choose crank-handle or wired powered operation.
Wall or floor outlet:
both drainage arrangements are represented in the current range.
Flexible WC choice:
combine with a suitable compatible toilet pan and seat.
Add integrated support-arm positioning

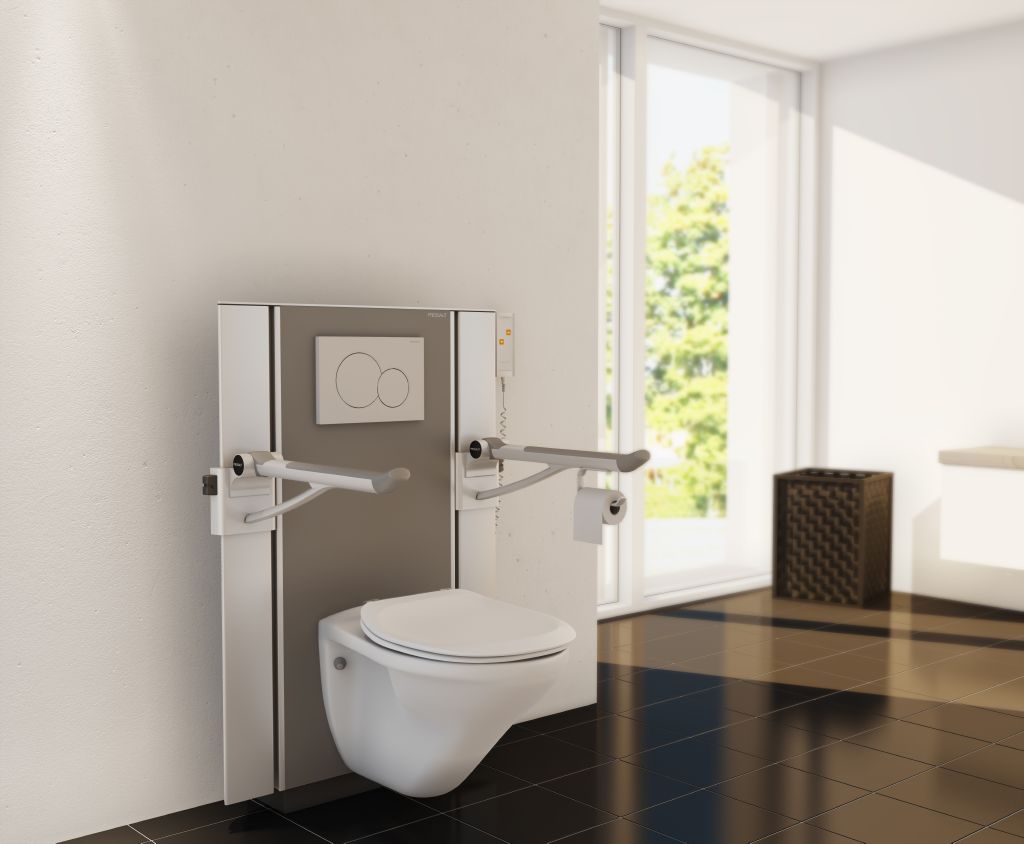

TL2 adds vertical profiles to both sides of the toilet lifter. Compatible PLUS support arms can mount directly to these profiles and be positioned around the user.
Integral side profiles:
no separate vertical wall track is required for compatible TL2 arms.
Support-arm choice:
current I4L options include 700mm and 850mm left- and right-hand arms.
Multi-user flexibility:
WC height and support position can be considered together.
Manual or powered?
How often will the height need to change?
Both systems create an adjustable toilet. The more frequently the WC height needs to change, the more useful powered adjustment becomes.
Manual · 300mm
Crank-handle adjustment from approximately 425–725mm.
Electric · 400mm
Wired hand-control adjustment from approximately 425–825mm.
Periodic adjustment
Manual operation can suit a toilet normally left at one
user's preferred height.
Frequent adjustment
Electric models are particularly useful in shared bathrooms
or where carers reposition the toilet regularly.
See the movement
Watch a Pressalit toilet lifter in operation
A video demonstration makes the practical benefit easier to understand: rather than adapting the user around one fixed toilet position, the WC itself can move vertically to suit the situation.
Pressalit Toilet Lifter
See how changing the WC height can support different users and transfers.

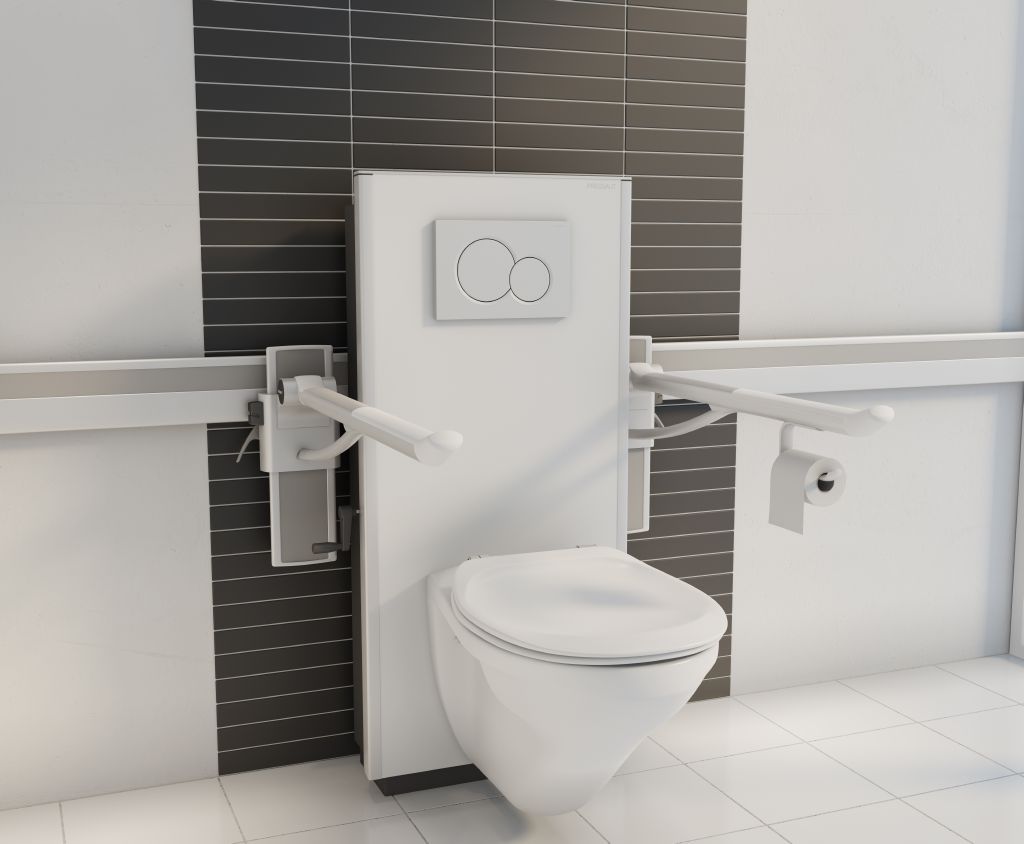

Secondary range · TL2 support
Position support around the toilet as well as the toilet itself

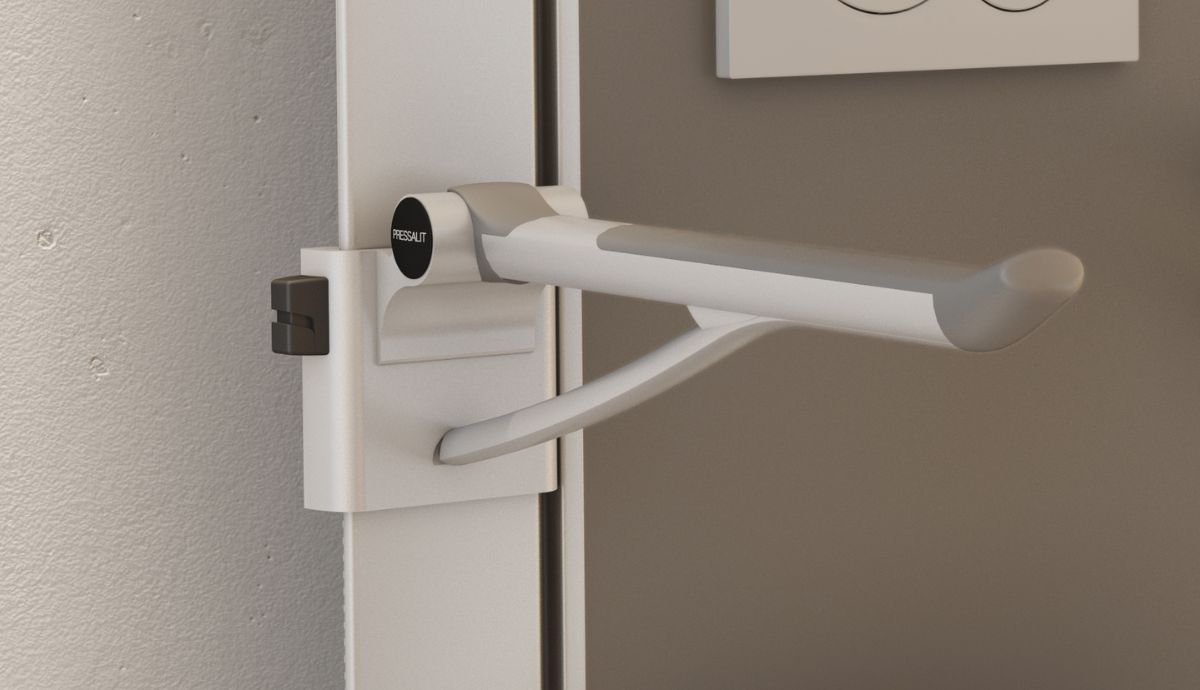

SELECT TL2 side profiles allow compatible Pressalit PLUS support arms to form part of the lifter system, providing support for sitting, standing and side transfers.
700mm or 850mm:
choose arm length around the WC projection and intended user.
Left and right hand:
handed versions allow controls and operation to be arranged appropriately.
Counterbalanced:
the folding mechanism provides controlled movement between
horizontal and upright positions.
Grip surface:
PLUS arms use a soft, slip-resistant gripping area designed
to feel warmer than bare metal.
See a working system at Bellamy House
Pressalit SELECT TL2 in our Accessible Toilet
The working Accessible Toilet display uses an electric SELECT TL2 with side profiles, allowing visitors to see how the toilet height and surrounding support can work together in a complete room.
The complete display
The showroom TL2 provides 400mm of electric adjustment from
approximately 425–825mm and carries a Geberit AquaClean Mera
Comfort shower toilet, with Pressalit support arms alongside.
Before specifying the lifter
Six decisions should be made around the complete toilet zone
A toilet lifter changes more than WC height. The pan, support products, drainage, electrical services and transfer space all need to work together throughout the adjustment range.
Transfer height
Establish the WC heights needed for wheelchair transfer, sitting, standing and any other regular users of the bathroom.
Manual or electric
Consider how often the height will change and whether the user or carer needs simple powered adjustment while the toilet is occupied.
Support arms
If support arms need to mount directly to the lifter, specify TL2 and select their length and handing around the user and WC.
Pan & projection
Confirm the compatible wall-hung WC or shower toilet, seat arrangement and projection before choosing surrounding support.
Waste & services
Select the correct wall- or floor-outlet lifter and plan any electrical, flushing or shower-toilet services around the full movement.
Supporting structure
The wall and fixing arrangement must be suitable for the lifter, WC, user and any support products forming part of the installation.
Toilet lifters are structural and moving bathroom equipment. Always follow the current Pressalit installation and operating instructions for the exact SELECT model selected. Confirm wall construction, mounting fixings, drainage, electrical requirements, compatible WC, support-arm arrangement and clear movement zone before installation.
Adapt the toilet around the user
Choose the height, operation and support as one system
Start with manual or electric adjustment, choose TL1 or TL2 according to the support arrangement, then match the outlet, toilet pan and surrounding equipment to the complete bathroom.
