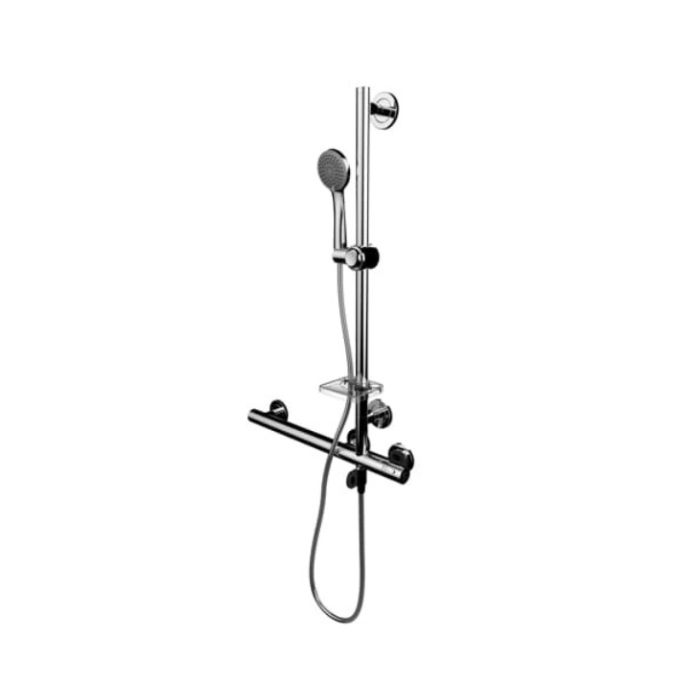

AKW Onyx Combo L Shape Grab Rail & Mixer Shower RH
This AKW Onyx Combo L shape grab rail & mixer shower RH, this mixer shower has two individual lever paddles for easy to control temperature and flow, accommodates varying user needs such as height with an adjustable holder and providing additional user support with the L shaped grab rail that supports 150kg of load. 2m long hose. TMV2 and WRAS approved.
AKW Onyx Combo with an L shaped right-handed grab rail and mixer shower.
This mixer shower is designed to accommodate varying user needs such as user height with the adjustable holder or a 2m long hose providing manoeuvrability when showering independently or with assistance. TMV2 and WRAS approval provide peace of mind.
Key benefits:
- Varying user heights accommodated by adjustable holder for roaming handset
- Multifunctional shower head offers 3 different spray modes
- Multifunctional shower head features silicone nozzles for ease of cleaning
- Easy to clean
- Mixer valve is cool to touch when in use preventing scalding
- two lever paddles allowing for easy to control temperature and flow
- two interchangeable white and black paddles
- Icons on the valve
- 2m long hose provides manoeuvrability when showering
- TMV2 approved mixer valve offers thermostatic protection
Includes:
- 2m Shower hose
- Additional shower head holder
- Sliding shower head bracket
- Interchangeable mixer valve paddles in white and black
- Clear soap dish
- Vertical load bearing riser rail
- Horizontal load bearing grab rail
Technical details:
- Max. grab rail weight load of 150kg
- Fixing points per wall flange: 3
- Wall flanges: 5
- Fixing points for additional shower head holder: 2
- Inlet cold temperature range 4 – 25°C
- Inlet hot temperature range 55 – 65°C
- Temperature range 16 – 49°C
- Safety setting max. temperature: 38°C
- Safety setting override max. temperature: 49°C
- Approx. flow rate: 8.5 l/min (3 bar)
- Inlet connections: ½"
- Outlet fitting: ½"
- Dynamic pressure: 0.5 – 5 bar
- Static pressure 1 – 10 bar
- Horizontal rail length (mm): 601
- Horizontal rail length flange to flange (mm): 342
- Vertical rail length (mm): 900
- Vertical rail length from flange to flange (mm): 755
- Tube diameter horizontal (mm): 42
- Tube diameter vertical (mm): 32
- Wall clearance horizontal (mm): 56
- Wall clearance vertical (mm): 61
- Hose length (mm): 2000
- 3 mode, lever twist shower head
Approvals:
- WRAS Approved
- TMV2 Approved
Manufacturer warranty:
- 3 year manufacture warranty
| Manufacturer | AKW / Contour |
|---|---|
| Shower Type | Direct Fed (Mixer) |
| Shower Features | Shower Arm, Shower Head, Shower Valves, Adjustable Riser Rail, Shower Head Holder |
| Fixings | Concealed |
| Control | Manual Lever |
| Hose Length (mm) / Application | 2000 / Shower Hose |
| Water Pressure | Normal Mains |
| Technologies | Thermostatic Control, Safe Touch, Anti-Scald, Temperature Adjustable |
| Approvals | WRAS Approved, TMV2 (Domestic Sector) |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 1.30pm |
| Returns Status | Returnable in 14 days |
