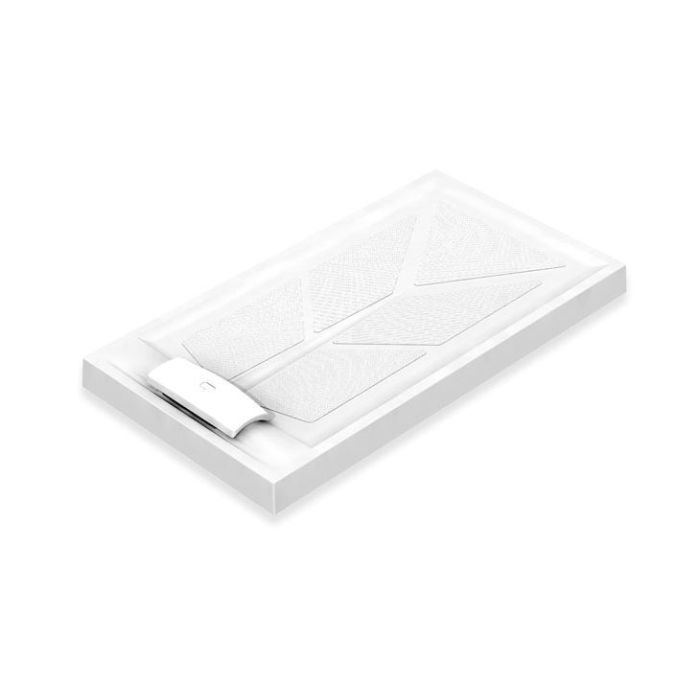

AKW Sulby Step-in SHWR Tray, 110mm High, Built in Gravity Waste - Choice of Size
AKW Sulby step-in shower tray for corners and alcoves is available in a range of sizes. Quick and easy installation, the tray is 110mm thick for surface mounting on unbreachable screed/concrete floors. Slip resistant surface, constructed of hand laid fibre glass (GRP) double thickness encapsulated sterling board and steel reinforcing sections making it very strong and stable. Non-handed so fits left or right. Built in above floor gravity waste with 8 possible side outlet points for the wastewater. Compatible with AKW Silverdale and Standard shower screens. Weight limit 190.5kg / 30 stones.
The AKW Sulby is a step-in shower tray designed for unbreachable floors for alcove and corner installations on screed/concrete floors.
The tray doesn’t require under tray foaming. The tray has a built-in above floor gravity waste.
The trays are 110mm high with a 35mm fall inside the tray, factory fitted above floor gravity waste that has 8 possible side outlet points.
The tray is compatible with AKW Standard and Silverdale shower screens
Key benefits:
- Suitable for unbreachable floors
- Step-in shower tray for a defined showering area, ideal for those with visual impairments
- Constructed of hand laid fibre glass (GRP) double thickness encapsulated sterling board and steel reinforcing sections
- Non handed
- 30mm flat area on external edge of tray, allowing screens to close onto a flat area
- Pipe work can be concealed within the height of the tray giving the bathroom a clean look
- Tiling upstands supplied for corner or alcove installations
- Built-in gravity waste that does not penetrate the floor
- Easily removable cover to access trap
- Adjustable water trap of 31mm or 38mm
- 8 different pre jigged waste exit points underneath the tray
- Up to 30 stone point loaded / 190.5kg weight bearing
- The Sulby tray is slip resistant, providing a safer showering experience for the user
- Choice of corner, side and end ramps for easy access are available
Sulby factory fitted waste:
- Gravity waste with a built-in filter
- The trap and strainer can be removed to give clear access for rodding
- 124mm depth below mounting surface
- 50mm water trap depth (seal)
- Threaded waste fitting
- Limited to 7 litres per minute flow rate
Technical details:
- Up to point load (kg / Stone): 190.5 / 30
- Unhanded
- Locate above screed/concrete floors
- Waste pipework can be taken out beneath the tray in several side positions
- Manufactured by AKW
Warranty:
- Lifetime manufacturer guarantee
Manufacturer product codes:
- 110mm High Tray with Gravity Waste code: 17202, 17201
| Manufacturer | AKW / Contour |
|---|---|
| Model | AKW - Sulby |
| Tray Size (mm) | 1300x700, 1420x700 |
| Handing | Unhanded |
| Entry Configuration | Front Entry (Alcove), Corner Entry |
| Step-in Height (mm) | Step-In - 110 |
| Thickness of Tray (mm) | 110 |
| Waste Compatibility | Gravity Waste |
| Tray Edge for Floor Finish | Not Applicable |
| Ramp or Step Available | Step, Ramp |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 1.30pm |
| Returns Status | Returnable in 14 days |
