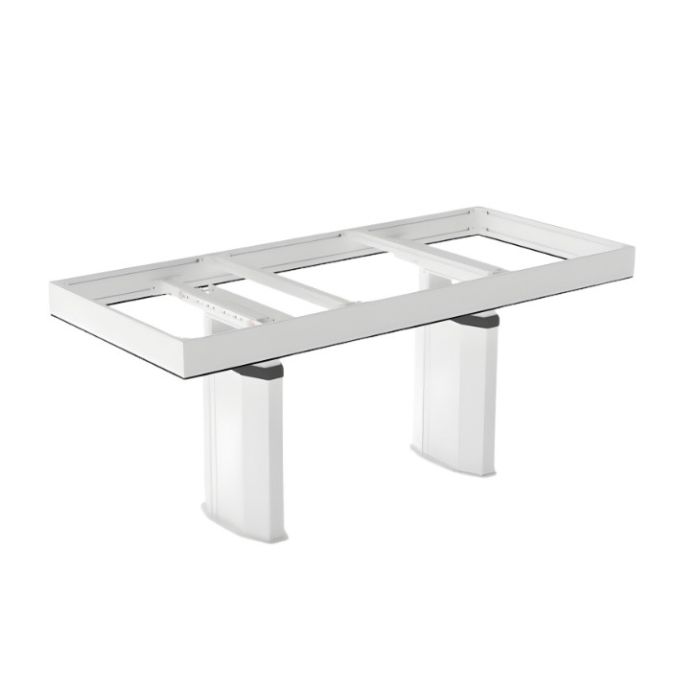

Granberg CENTERLIFT 9600HC Height-adjustable Kitchen Island — Depth 780 mm - White

The Granberg CENTERLIFT 9600HC is a premium motorised height-adjustable kitchen island lifting system designed to create an ergonomic, inclusive and accessible kitchen for users of all heights and abilities.

Whether standing, seated or working from a wheelchair, the CENTERLIFT 9600HC allows the kitchen island to be raised or lowered at the touch of a button, providing the ideal working height for cooking, food preparation, baking and everyday family life.

Designed for 800 mm deep worktops, the adjustable aluminium lifting frame accommodates worktop widths from 1200 mm to 2800 mm, allowing seamless integration with kitchens from virtually any kitchen manufacturer.

Finished in a durable White (RAL 9003) powder-coated finish, the CENTERLIFT 9600HC creates a flexible kitchen environment where everyone can comfortably cook, prepare food and socialise together.

Important: This is a kit system supplied for on-site assembly. Front panels and decorative finishes require sizing and fitting during installation. Worktop, sink, tap, appliances, plumbing components and electrical accessories are not included unless specifically stated.

Key Benefits

• Motorised height-adjustable kitchen island lifting system
• Stepless 400 mm height adjustment from 700–1100 mm, excluding worktop
• Maximum lifting capacity of 200 kg
• Suitable for worktop widths from 1200–2800 mm
• Designed for 800 mm deep worktops
• Compatible with kitchens from virtually any kitchen manufacturer
• Motors can be positioned sideways to accommodate sinks, hobs and services
• Integrated safety strip immediately stops movement if an obstruction is detected
• Plug and Play electronics for straightforward installation
• Supplied with brackets for mounting the worktop
• Creates an inclusive kitchen suitable for standing and seated users

Technical Specification

• Model: CENTERLIFT 9600HC
• Product code: 9600HC-01
• Colour: White (RAL 9003)
• Frame depth (mm): 780
• Suitable worktop depth (mm): 800
• Adjustable frame width (mm): 1180–2780
• Supported worktop width (mm): 1200–2800
• Height adjustment: Motorised, steplessly adjustable, 400 mm travel (700–1100 mm excluding worktop)
• Maximum lifting capacity: 200 kg
• Lifting speed: 30 mm/sec
• Operation: Corded control button or remote control
• Safety: Integrated safety strip beneath the frame perimeter
• Electrical connection: 2 × UK 3-pin plugs, 230 V, maximum 5 A
• Plumbing connections: Flexible hoses required, not supplied
• Material: Powder-coated aluminium frame
• Integrated appliance compatibility: Suitable for sink bowls up to 120 mm deep
• Installation: Floor mounted with adjustable motor positions for sinks and hobs
• IP rating: IP20
• Front height (mm): 103

Choice of Control

• Corded Control Button, Black (Product Code: 61322-10)
• - Provides reliable hard-wired operation of the lifting system
• Key Lock for Control Button (Product Code: 61360)
• - Locks the control button to prevent unauthorised use
• Remote Control - Single Channel, Black (Product Code: 61385-10)
• - Provides convenient wireless operation of one Granberg lifting system
• Multi-Channel Remote Control (Product Code: 6138x-10)
• - Operates up to five compatible Granberg kitchen lifting systems from one remote control. Please contact us to discuss your requirements

Optional Service / Drain Column

• Floor-mounted service column designed for the CENTERLIFT 9600 system
• Supports and conceals electrical cables, plumbing connections and flexible hoses
• Creates a neat, professional installation beneath the worktop
• Dimensions (W × D): 200 × 300 mm
• Material: Anodised aluminium
• Hose Cover / Service Column (Product Code: 61508-06)

Frequently Asked Questions

Can the CENTERLIFT 9600HC be fitted into any kitchen?
Yes. The lifting frame is designed to integrate with kitchens from virtually any kitchen manufacturer.

Can a sink or hob be installed?
Yes. The adjustable motor positions allow sinks and hobs to be incorporated into the worktop. Sink bowls up to 120 mm deep can be integrated.

How much weight can the lift raise?
The CENTERLIFT 9600HC has a maximum lifting capacity of 200 kg, including the worktop, appliances and items placed on the island.

Is the system suitable for wheelchair users?
Yes. The electrically height-adjustable worktop allows seated and standing users to position the kitchen island at a comfortable and ergonomic working height.

What worktop sizes are supported?
The adjustable frame supports worktops from 1200 mm to 2800 mm wide and is designed for 800 mm deep worktops.

Does the product include the worktop?
No. The lifting system is supplied with fittings for the worktop, but the worktop itself is not included.

Warranty

• 5-year Granberg manufacturer warranty on the lifting system
• Register the product on Granberg's website to receive the full 5-year warranty. Without registration, the standard 3-year warranty applies
