Granberg CENTERLIFT 9600HD Height-adjustable Kitchen Island — Depth 880 mm - Anthracite

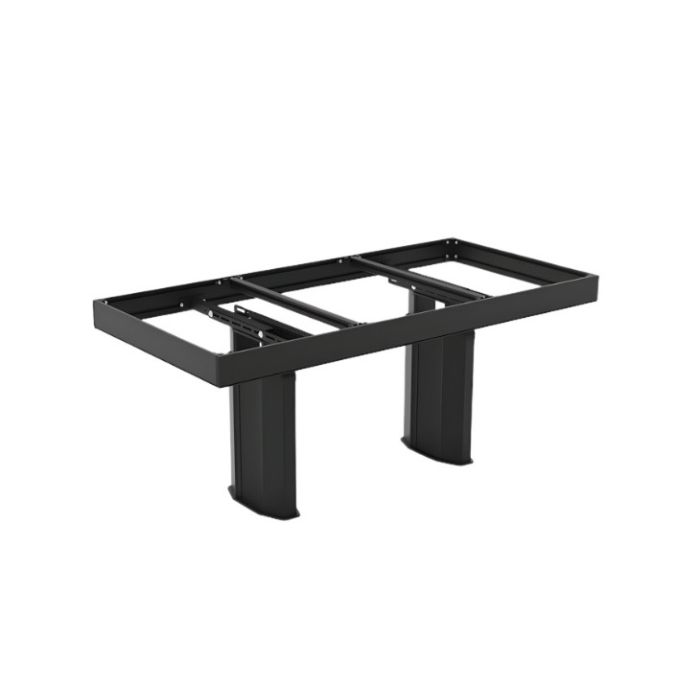

The Granberg CENTERLIFT 9600HD is a motorised height-adjustable kitchen island lifting system for accessible kitchens. It allows seated and standing users to adjust the work surface for food preparation, cooking, dining and everyday activities.

Designed for 900 mm deep worktops, the 880 mm deep aluminium frame is available in nine widths from 1180 to 2780 mm, supporting worktops from 1200 to 2800 mm wide. Choose the frame width to suit your kitchen layout.

The lifting system provides 400 mm of stepless height adjustment, from 700 to 1100 mm above the floor, excluding the worktop. Its Anthracite Sablé (YW359F) powder-coated finish coordinates with contemporary cabinetry and a choice of optional laminate worktops.

Optional Laminate Worktop – Eight Décors

Complete your island with a made-to-measure Granberg laminate worktop. The lifting system and worktop can be purchased together as a set by selecting the required worktop option on this page.

The optional worktops are 30 mm thick, with square-finished, edge-banded edges. All eight décors are available for this 900 mm deep worktop:

• White K1040 UN: a clean, neutral white finish
• White P0464: an alternative plain white laminate finish
• Black Brazil: a near-black finish with subtle mineral-effect mottling
• Grey Dust: a grey surface with darker granular detailing
• Virrvarr Antracit: anthracite grey with fine intersecting lighter lines
• Svartvit Granit: a dark granite-effect pattern with white and grey flecks
• Lava Dust: a light surface with fine grey speckling
• Block Board Beech: a warm timber-effect finish with a beech block pattern

Confirm the finished worktop dimensions and selected décor before manufacture. Sink and hob cut-outs are not included with the optional standalone laminate worktop.

Custom-made worktops are non-returnable and non-refundable once manufacturing has started, except where faulty or not made to the agreed specification. Your statutory rights are unaffected.

Key Benefits

• Motorised kitchen island lift for seated and standing users
• 400 mm height adjustment from 700 to 1100 mm, excluding the worktop
• Maximum lifting capacity of 200 kg, including the worktop and its contents
• Nine frame widths to suit worktops from 1200 to 2800 mm wide
• 880 mm frame depth for a 900 mm deep worktop
• Optional 30 mm laminate worktop in eight décors
• Compatible with kitchens from virtually any kitchen manufacturer
• Laterally adjustable motor positions to accommodate sinks, hobs and services
• Integrated safety strip beneath the frame stops movement when activated
• Plug-and-play electronics
• Worktop mounting brackets supplied

Technical Specification

• Model: CENTERLIFT 9600HD
• Product code: 9600HD-07
• Frame finish: Anthracite Sablé (YW359F)
• Material: Powder-coated aluminium frame
• Frame depth: 880 mm
• Suitable worktop depth: 900 mm
• Available frame widths: 1180, 1380, 1580, 1780, 1980, 2180, 2380, 2580 and 2780 mm
• Corresponding worktop widths: 1200, 1400, 1600, 1800, 2000, 2200, 2400, 2600 and 2800 mm
• Height adjustment: Motorised, stepless, 400 mm travel
• Height above floor: 700–1100 mm, excluding worktop
• Maximum lifting capacity: 200 kg
• Lifting speed: 30 mm per second
• Operation: Corded control button or compatible remote control
• Safety: Integrated safety strip beneath the frame perimeter
• Electrical connection: Two 230 V plug connections, maximum 5 A each; 10 A combined
• Plumbing: Flexible connections required where a sink is fitted; not included unless selected
• Sink compatibility: Bowls up to 120 mm deep, subject to installation clearances
• Installation: Floor mounted
• IP rating: IP20
• Front height: 103 mm
• Optional laminate worktop: 30 mm thick, square-finished edges, eight décors

Choice of Control

• Corded Control Button, Black – 61322-10: wired operation of the lifting system
• Key Lock for Control Button – 61360: optional lock for the wired control button to prevent unauthorised use
• Single-Channel Remote Control, Black – 61385-10: wireless operation of one compatible lifting system
• Multi-Channel Remote Control – 6138x-10: options for controlling multiple compatible Granberg lifting systems; contact us to confirm the appropriate model

Optional Services Cover

The 61508-06 Hose Cover / Service Column conceals cables, plumbing connections and flexible hoses beneath the island.

• Designed for the CENTERLIFT 9600 system
• Floor-mounted installation
• Dimensions: 200 × 300 mm, width × depth
• Material: Anodised aluminium

Supply and Installation

This is a lifting system supplied for on-site assembly and installation. The motor units must be positioned and secured to a suitable floor in accordance with Granberg’s installation instructions.

The worktop is included only when selected as an option. Sinks, taps, appliances, plumbing components and additional electrical accessories are excluded unless specifically selected or stated as included. Any additional decorative panels require coordination with the installation.

Check the selected frame width, finished worktop dimensions, appliance clearances and service connections before ordering. Services and surrounding furniture must accommodate the full movement of the lifting system.

Frequently Asked Questions

Can the CENTERLIFT 9600HD be used with my kitchen?

The lifting system can be integrated with kitchens from virtually any kitchen manufacturer. The frame, worktop and surrounding furniture must be coordinated to suit the installation.

Can I purchase the lift and worktop together?

Yes. Select an optional Granberg laminate worktop on this page to purchase the lifting system and worktop as a set. Eight décors are available, with a 30 mm thickness and square-finished edges.

What worktop sizes does this model support?

The 9600HD is designed for 900 mm deep worktops. Nine frame widths accommodate corresponding worktop widths from 1200 to 2800 mm.

Is the frame width adjustable after purchase?

The frame is ordered in the selected width. The nine width options are separate sizes. The motor positions can be adjusted laterally during installation to accommodate the planned layout.

Can a sink or hob be installed?

Yes, subject to the appliance dimensions and installation clearances. Sink bowls up to 120 mm deep can be integrated. Any required worktop cut-outs and flexible service connections must be planned separately.

How much weight can the lift raise?

The maximum lifting capacity is 200 kg, including the worktop, fitted equipment and items placed on the island.

Is it suitable for wheelchair users?

The height adjustment allows the surface to be positioned for seated or standing use. Worktop height, knee clearance, reach and appliance positions should be planned around the individual user.

Warranty

The lifting system carries a 5-year Granberg manufacturer warranty when registered on Granberg’s website. Without registration, the standard 3-year warranty applies. The optional laminate worktop is supplied with a separate 3-year warranty.
