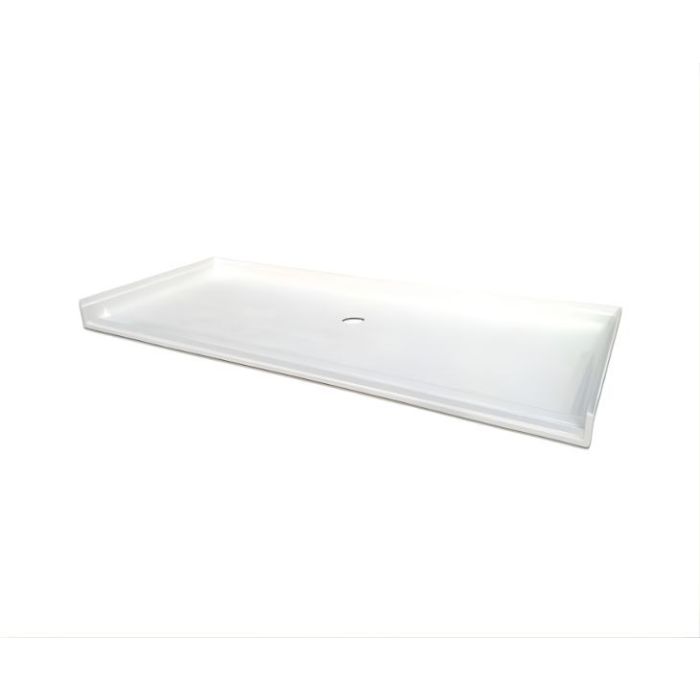

Contour Eagle TWO Level Access Alcove Shower Tray No TRUESEAL2 - Choice of Size & Waste
AKW / Contour Eagle TWO bath replacement cut to length shower tray for level access. Unhanded. Front entry alcove tray. Suitable for timber or solid floors. For tiled floor finishes. 26mm thick. Manufactured in the UK from Glass fibre-reinforced plastic (GRP). Max load: 270kg. Choice of sizes 1850x745m and 1850x845mm, each can be reduced in size to 1500mm. End plate supplied for the cut edge. Choice of gravity or pumped waste options.
The Contour Eagle TWO is the perfect solution where a bathtub is no longer practical for users with mobility difficulties or requiring wheelchair access.
Once fitted an Eagle TWO tray provides barrier-free, level access in an alcove space (between three walls).
This tray can be cut to length from either end, from 1850mm down to 1500mm, supplied with an end plate to enclose the cut end of the tray allowing you to fit the exact space left by the previous bath.
Key benefits:
- Tray length 1850mm, 745 or 845mm width
- Tray can be cut to length from 1850mm to 1500mm as required
- Barrier free, level access - assists effortless wheelchair entry
- Quick and easy to install
- Anti-slip surface for an assured underfoot grip
- For tiled floor finishes only
Waste options:
90mm Dia. Gravity Waste
- AKW Product Code: 25120
- 50mm Deep Water Trap - Prevents bad odour backflow
- Top access, easy to clean
- Ideal for shower trays on wooden floor installations
- Depth required under the tray: 90mm
- Manufactured by AKW
GW90 Low Depth Gravity Waste
- AKW Product Code: 25404
- 50mm water trap depth (seal)
- Built in strainer - Catches hair and debris which can be removed for cleaning
- Unique swivel outlet for quick and easy installation
- Designed for ease of installation and flexibility of fitting
- Depth required under the tray: 60mm
- Manufactured by AKW
DW90 Low Height Dry Waste with Domed Cover
- AKW Product Code: 25492-UK
- Meets the performance requirements of British Standards - Ensures product is fully compliant and safe for site requirements
- Useful for solid floors or shallow joists
- Top access, easy to clean
- High flow rate - Accommodates (27l/min with a 15mm head and 1m of pipe)
- Depth required under the tray: 48mm
- Manufactured by AKW
GW90 Metal Topped 90mm Dia. Waste
- AKW Product Code: 25434
- Very compact design, ideal for solid floor or shallow joists installations
- Good seals and location - For easy installation and watertight fitting
- Top access, easy to clean
- Suitable for push fit pipe (with included adaptor) Suitable for push fit pipe (with included adaptor)
- Suitable for push fit pipe (with included adaptor) Suitable for solvent weld pipe (with included adaptor)
- Depth required under the tray: 53mm
- Manufactured by AKW
tdpw90 - 90mm Wide Pumped Waste (15mm JG Outlet)
- AKW Product Code: 25105
- To be used in conjunction with a AKW DigiPump shower waste pump
- Built in strainer - Catches hair and debris which can be removed for cleaning
- Opens for easy cleaning and rodding - Ensuring easy maintenance
- Good seals and location - For easy installation and watertight fitting
- 15mm outlet, John Guest Speedfit Outlet for easy installation
- Depth required under the tray: 36mm
- Manufactured by AKW
- Pump not included
PW90 Pumped Waste (22mm JG Outlet)
- AKW Product Code: 25406
- To be used in conjunction with a AKW DigiPump shower waste pump
- Built in strainer - Catches hair and debris which can be removed for cleaning
- Opens for easy cleaning and rodding - Ensuring easy maintenance
- Good seals and location - For easy installation and watertight fitting
- 22mm outlet, John Guest Speedfit Outlet for easy installation
- Bayonet or screw fit cover
- Baffles reduce noise escaping chambers
- Depth required under the tray: 45mm
- Manufactured by AKW
- Pump not included
Technical details:
- Size (mm): 1850x745 or 1850x845
- Max load (kg): 270
- Tray can be trimmed at either end down to 1500mm - 1 x end plate supplied to conceal cut end
- Unhanded - tray has a central waste and three tiling lips for alcove installation (between three walls)
- Manufactured in the UK from Glass fibre-reinforced plastic (GRP)
- Locate in wooden or solid floors - minimal need for additional support under the tray
- Requires only 18mm of existing floor to be removed (apart from the trap area)
- The 14mm tiling lip is watertight and will easily accommodates wallboards and wall tiles
Warranty:
- Lifetime manufacturer warranty
Manufacturer product codes:
- Tray only, no TRUESEAL2 code: ET745NTNW, ET845NTNW
- Tray with gravity waste, no TRUESEAL2 code: ET745NT, ET845NT
| Manufacturer | AKW / Contour |
|---|---|
| Brand / Model | AKW / Contour - Eagle TWO |
| Cut to Length Range (mm) | 1500-1850 |
| Tray Size (mm) | 1850x745 - Can be cut down to 1500, 1850x845 - Can be cut down to 1500 |
| Handing | Unhanded |
| Entry Configuration | Front Entry (Alcove) |
| Step-in Height (mm) | Level Access - 0 |
| Thickness of Tray (mm) | 26 |
| Waste Compatibility | Gravity Waste, Pumped Waste |
| Tray Edge for Floor Finish | No TRUESEAL2 - Tiles |
| Stock status | Made to order |
|---|---|
| Delivery time | 1-2 weeks |
| Returns Status | Returnable in 14 days |
