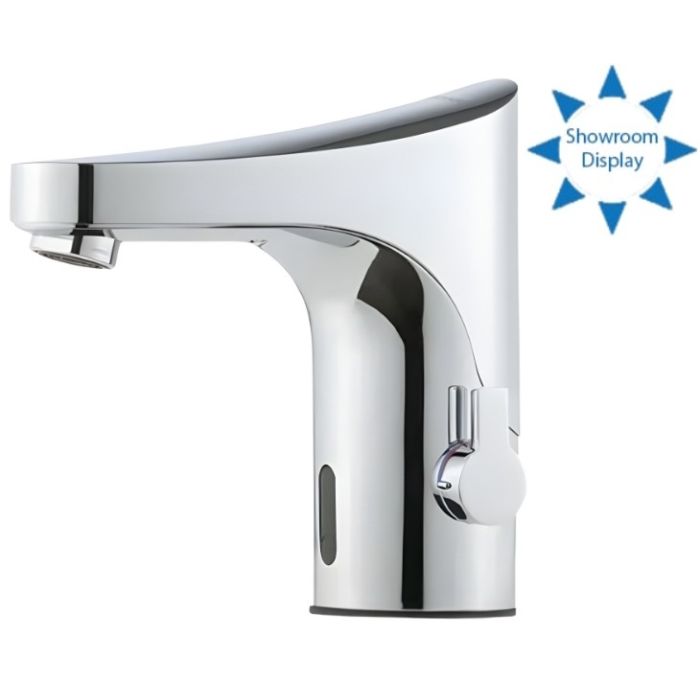

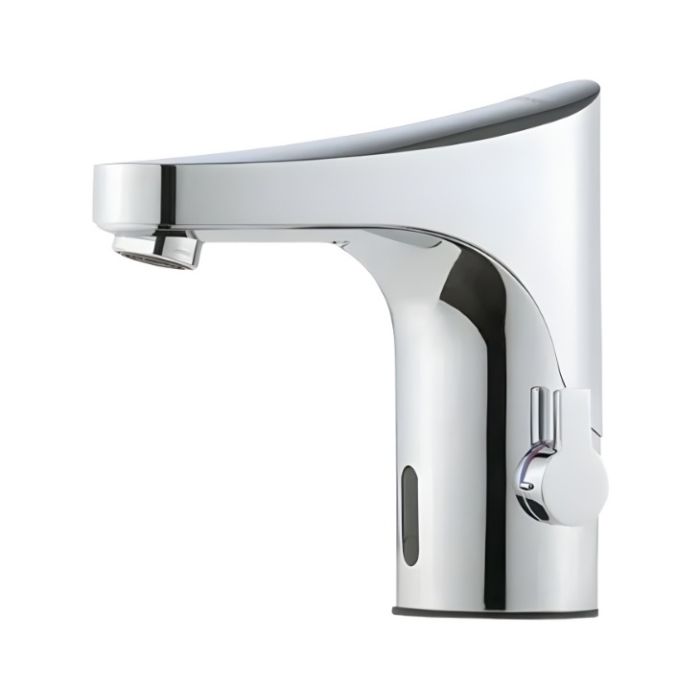

FMM Granberg 425-110 Infrared Washbasin Mixer Tap - (6V Battery Operated)

The FM Mattsson 9000E Tronic, also referred to as the Granberg 425-110, is an infrared touch-free mixer tap designed for washbasins.

Touch-free operation helps improve hygiene by reducing the need to make physical contact with the tap, while also supporting lower water and energy consumption.

The water temperature can be adjusted using the lever on the side of the mixer. The lever can be fixed to limit the maximum temperature and help reduce the risk of scalding, or removed completely where a fixed water temperature is required.

The tap also includes a programmable hygienic flush function designed to help prevent stagnant water and reduce the risk of bacterial growth within the system.

Key benefits:

• Infrared touch-free operation for improved hygiene
• Helps reduce water and energy consumption
• Adjustable maximum temperature
• Adjustable flush time
• 30-second rinse function activated via the sensor
• Built-in temperature control lever on the side of the tap
• Temperature lever can be removed where a fixed temperature is required
• Soft-closing solenoid valve
• Can be temporarily turned off for 60 seconds, for example during cleaning
• Energy and water-saving constant-flow aerator, 5 l/min at 200–600 kPa
• System for thermal disinfection against Legionella
• Flush timeout safety shut-off to help prevent flooding
• Programmable hygienic flush function helps prevent stagnant water and inhibit bacterial growth
• Low power consumption with long-life battery included
• Approved non-return valves to EN 1717
• Manufactured using environmentally considerate materials
• Lead-free and nickel-free construction
• All technical components are integrated into the mixer body for easier maintenance

Technical details:

• Finish: Chrome plated
• Spout projection (mm): 108
• Tap height (mm): 145
• Automatic sensor calibration
• After setting the desired temperature, the control knob can be replaced with a cover
• 350 mm stainless steel braided soft PEX® hoses with integrated non-return valves and filters
• Required mounting hole diameter (mm): 33.5–37
• Maximum mounting surface thickness (mm): 40
• Backflow protection unit type: EB
• Sensor IP rating: IP67
• Power supply: 6 V battery

Warranty:

• 5-year Warranty
• The product is covered by a 5-year warranty against manufacturing defects.
