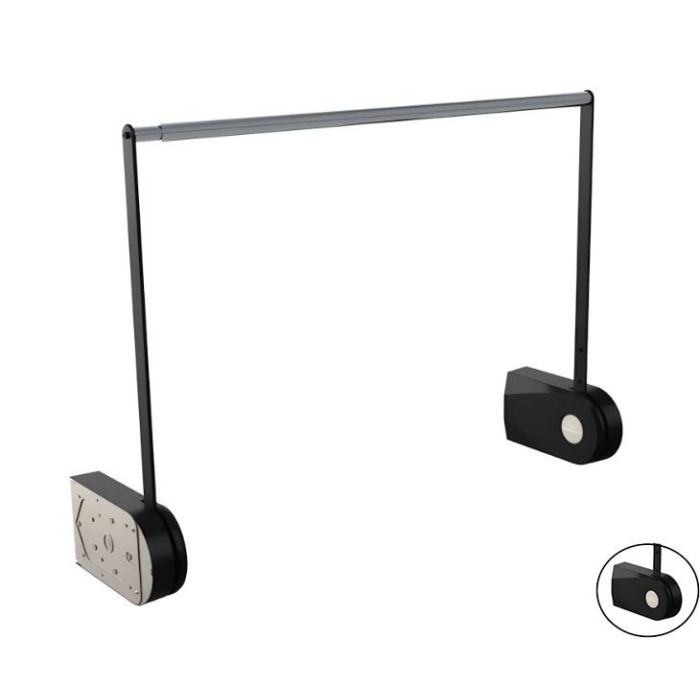

Granberg BUTLER 730 Electric Wardrobe Lift, Cabinet Width 600–1600 mm – Jet Black Motor Covers & Black Arms

Granberg BUTLER 730 Electric Wardrobe Lift – Jet Black

The Granberg BUTLER 730 is an electric wardrobe lift designed to make high-level hanging storage accessible. At the touch of a button, the clothes rail moves outwards and downwards, bringing clothes within comfortable reach. Stepless adjustment allows the rail to stop at the preferred height.

The Jet Black version, Product Code 730-160-10, features Jet Black (RAL 9005) plastic housings, black anodised aluminium arms and a chrome-plated clothes rail.

The BUTLER 730 is particularly suitable for accessible bedrooms, dressing rooms, hotels and residential interiors where upper wardrobe space needs to remain practical for seated and standing users. Its electric movement helps reduce the need to stretch upwards or manually pull down a conventional wardrobe rail.

Why Choose the BUTLER 730?

• Motorised clothes rail moves approximately 704 mm downwards and 591 mm outwards.
• Clothes rail moves forwards and downwards to improve access to hanging garments.
• Suitable for wardrobe widths from 600–1600 mm.
• Helps make upper wardrobe storage accessible while retaining space below for shelving, drawers or other storage.
• Suitable for seated users, wheelchair users and people with limited reach.
• Stepless electric adjustment allows the rail to stop at the preferred height.
• Maximum clothes-rail load of 30 kg.
• Integrated safety stop halts movement if an obstruction is encountered.
• Quiet motorised operation.
• Bluetooth control button supplied as standard; optional wireless hand controls available.

Suitable Wardrobe Widths

The BUTLER 730 is supplied with two telescopic clothes rails to suit the following wardrobe widths. Check the clear internal cabinet width before installation.

• Wardrobe widths 600–900 mm: internal cabinet width 545–868 mm; telescopic rail width 453–776 mm.
• Wardrobe widths 1000–1600 mm: internal cabinet width 945–1568 mm; telescopic rail width 853–1476 mm.

Controls and Accessories

A compact Bluetooth control button is included as standard. The black button has white symbols, measures 60 mm in diameter and 8 mm high, and can be mounted using double-sided adhesive tape.

Optional black radio hand controls are available for operating one or more BUTLER systems:

• 1 lifting system – Product Code: 61345-10
• 2 lifting systems – Product Code: 61347-10
• 3 lifting systems – Product Code: 61348-10
• 4 lifting systems – Product Code: 61349-10
• 5 lifting systems – Product Code: 61350-10

Where a wireless remote is specified, the remote receiver is supplied for each BUTLER lifting system.

Included as Standard

• 1 × Granberg BUTLER 730 electric wardrobe lift.
• 2 x Telescopic clothes rails: 453-776mm and 853-1476mm.
• 1 × Control unit with two motor connection cables.
• 1 × Power supply unit with UK plug.
• 1 × Bluetooth control button.

Technical Specification

• Product Code: 730-160-10
• Product: Granberg BUTLER 730 electric wardrobe lift
• Finish: Jet Black (RAL 9005) plastic housings; black anodised aluminium arms; chrome-plated clothes rail
• Wardrobe width: 600–1600 mm (see cabinet width options above)
• Movement: Electrically outwards and downwards, stepless
• Vertical adjustment: Approximately 704 mm
• Outward movement: Approximately 591 mm
• Movement speed: 47 mm/sec
• Approximate lifting/lowering cycle: 15 seconds
• Maximum load: 30 kg
• Minimum internal cabinet height: Approximately 700–810 mm when fitting above a shelf
• Electrical supply: 230 V, 50/60 Hz
• Connection: UK 3-pin plug
• Rated current: 2.9 A
• Noise level: 52 dB
• Delivery package dimensions: Approximately 900 × 490 × 90 mm
• Delivered weight: Approximately 18 kg

Planning and Installation

• Confirm wardrobe width, internal dimensions and clearance for the full movement of the lift.
• Allow sufficient clearance for the 704 mm downward and 591 mm outward movement.
• Securely anchor the wardrobe to the wall. Cabinet panels, fixings and supporting structure must withstand the loads generated during operation; reinforcement may be needed.
• Keep shelves, doors, drawers, handles and other fittings outside the moving lift's path, avoiding trapping or crushing points.
• The required wardrobe depth will depend partly on the type and size of clothing being stored.
• Ensure the power supply remains accessible for servicing.
• Installation should be carried out by suitably competent installers in accordance with the manufacturer's instructions.

Warranty

Granberg provides a 5-year manufacturer warranty when the system is registered in accordance with its warranty requirements. Without registration, the standard 3-year warranty applies.
