Granberg Electric Height Adjustable Washbasin System - BASICLINE 415-0 - White
Height adjustable washbasin bracket for basins up to 590mm wide. Electrically adjustable via wired hand control and or remote hand control. 250mm continuously variable height. Ideal for situations where the height is changed regularly. Optional safety stop system, flexible waste kit. Bare system - order washbasin, taps and flexible feeds separately.

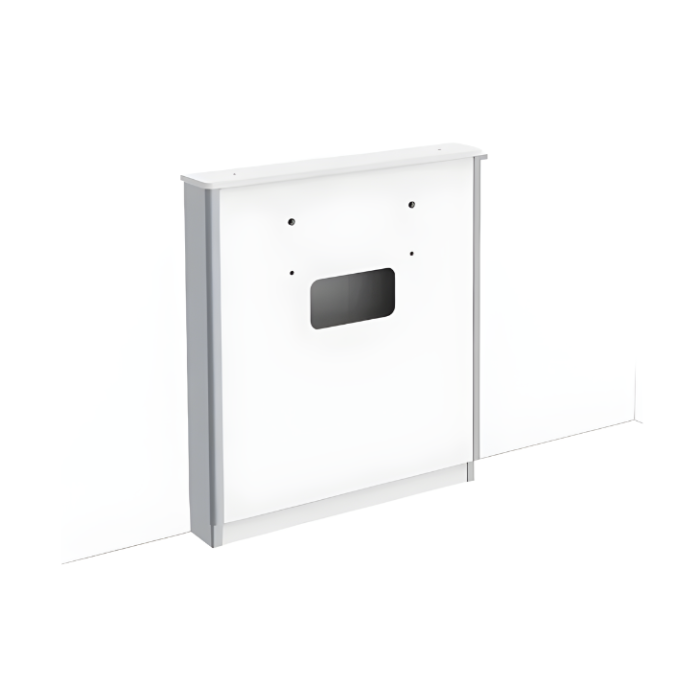

The Granberg Basicline 415-0 is a height adjustable bracket mount for washbasins.
The system moves electrically to the required height using the corded hand control and or optional handheld remote control; it is ideal for situations where the height is frequently changed.
The system can be completed with a washbasin, tap, 500mm flexible hoses and waste (available separately).
Key benefits:
- Height adjustable bracket for washbasins
- 250mm continuously variable height
- Electric, steplessly adjustable washbasin unit, low profile
- Low level - can be installed beneath a mirror or cabinet
- Electric operation with corded hand control, and or optional handheld radio control (Product Code: 61386-10)
- Easy-to-use controller
- Plumbing connections are elegantly concealed in the lifting unit
Compatible washbasins:
- Max. weight (kg): 40
- Max. width (mm): 590
- Max. depth (mm): 600
- Washbasin centre-to-centre fixings (mm): 280
Technical details:
- Width of bracket (mm): 650
- Depth of bracket (mm): 107
- Height adjustment (mm): 250
- Speed (mm / second): 18
- Lifting force (kg): 100
- Electrical connection: Mains UK plug for 230 V, max 1.5A
- Note: If ordering the optional handheld remote control a double plug socket is required
- IP-class: IPX4
- Wired hand controller, IP65 rated, with support hook
Material construction:
- Back panel: 4 mm compact laminate with sides of anodised aluminium
- Top shelf: 12 mm compact laminate
- Installation cover: 4 mm compact laminate
Optional:
- 425-331 - Flexible drain hose with water trap
- 61386-10 - Remote Hand control (single channel)
- 425-403 - Safety stop switch - prevents the descent of the lift in the event of an obstruction
- Note: If selecting the optional handheld radio control, the safety switch is recommended
Warranty:
- 5 year manufacturer warranty
- This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
Order separately:
- Washbasin, tap and 500mm flexible tap feeds
| Manufacturer | Granberg |
|---|---|
| Bracket Range | Granberg BASICLINE 415 |
| Bracket Operation | Electric |
| Bracket Adjustment | Wired Hand Control & or Remote Control |
| Height Adjustment (mm) | 250 |
| For Washbasin Range | BASICLINE 425-003, BASICLINE 425-010, BASICLINE 425-011, BASICLINE 425-015 |
| Bracket Mounting | Floor & Wall |
| Safety Stop | No |
| Stock status | Available to order |
|---|---|
| Delivery time | 1-2 weeks |
| Returns Status | Returnable in 14 days |
