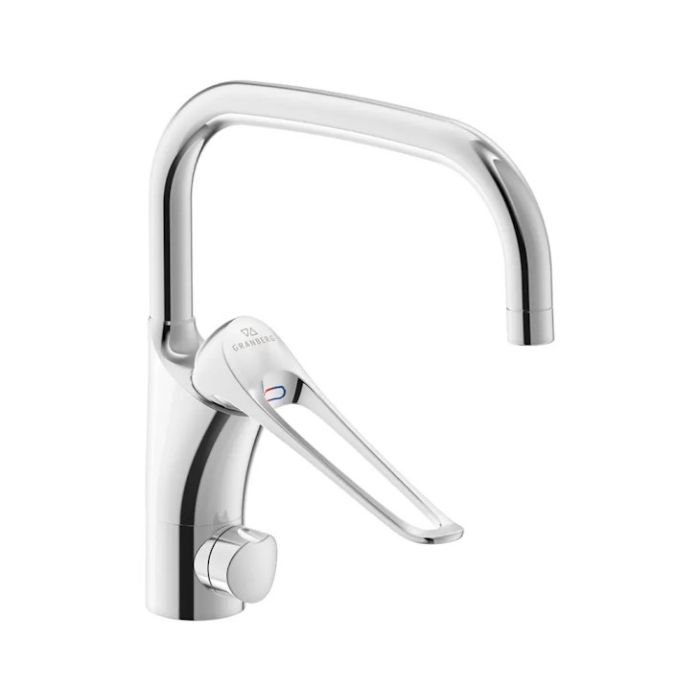

Granberg Ergo KM11 Single Lever Kitchen Mixer with Dishwasher Shut-off

The Granberg Ergo KM11 is an ergonomic single-lever kitchen mixer with an integrated front-mounted dishwasher shut-off valve. Designed specifically for accessible and inclusive kitchens, it combines an extended operating lever, a lower U-shaped swivel spout and extra-long flexible connection hoses to provide convenient operation in both fixed and height-adjustable kitchen installations.

The extended 165 mm lever improves reach and provides a large, comfortable operating surface, making the mixer easier to use for seated users, wheelchair users and people with reduced strength, grip or dexterity. The optimised lower-spout design also makes the water outlet easier to reach while maintaining generous clearance beneath the spout for everyday kitchen tasks.

A ceramic dishwasher shut-off valve is integrated into the front of the mixer body, allowing the appliance water supply to be isolated without reaching beneath the sink or worktop. The valve can be configured for either the cold or hot water supply and is supplied preset for connection to cold water.

The Ergo KM11 can be fitted to Granberg height-adjustable worktops and sink units, as well as conventional fixed sinks and worktops. Its 800 mm braided Soft PEX® connection hoses provide the additional flexibility required for moving kitchen installations, helping to maintain reliable water connections throughout repeated height adjustment.

Cold start technology helps reduce unnecessary hot water use by supplying cold water when the lever is operated from its central starting position. An Eco Flow aerator limits water consumption to 6.0 litres per minute at 3 bar, while the adjustable flow and temperature limiters provide additional control over water use and outlet temperature.

The chrome U-spout rotates smoothly and can be fitted with a limiting ring to restrict its movement to 60°, 85° or 110°. It can alternatively be configured for unrestricted 360° rotation, allowing the mixer to be adapted to the sink layout and surrounding worktop area.

Lead-free construction, a soft-closing ceramic cartridge and Sound Class 1 performance make the Ergo KM11 suitable for homes, schools, care facilities, public kitchens and other frequently used environments where accessibility, durability and dependable operation are essential.

Key benefits:

• Ergonomic single-lever kitchen mixer for accessible and inclusive kitchens
• Integrated front-mounted dishwasher shut-off valve
• Shut-off valve can be connected to the cold or hot water supply
• Supplied preset for cold-water operation
• Front-mounted control avoids the need to reach beneath the sink
• Extended 165 mm lever for increased reach and easier operation
• Optimised lower U-spout improves accessibility for seated users
• Suitable for fixed and height-adjustable kitchen installations
• Compatible with Granberg height-adjustable worktops and sink systems
• Extra-long flexible hoses accommodate moving installations
• Cold start technology helps reduce unnecessary hot water use
• Eco Flow aerator reduces water and energy consumption
• Soft-closing ceramic cartridge
• Adjustable flow limiter and temperature limiter
• Lead-free construction
• Quiet operation – Sound Class 1

Integrated appliance shut-off valve:

• Shut-off valve integrated into the front of the tap body
• Provides convenient isolation of the dishwasher or washing machine water supply
• Easy to access without opening a cabinet or reaching beneath the worktop
• Can be configured for either cold or hot water connection
• Factory preset for cold water

Swivel spout:

• Chrome U-shaped swivel spout
• Swivel spout with limiting ring, adjustable to 60°, 85°, 110° or unrestricted 360° rotation
• Rotation can be selected to suit the sink size, worktop layout and surrounding installation

Designed for accessible kitchens:

• Extended lever provides increased reach from a seated position
• Large open lever design is easier to operate with limited grip or dexterity
• Lower spout arrangement improves access to the water outlet
• Suitable for wheelchair-accessible homes and adapted kitchens
• Ideal for care facilities, assisted-living environments, schools and public kitchens
• Suitable for frequently used installations requiring durability and reliable operation

Dimensions:

• Overall tap height: 296 mm
• Spout outlet height: 190 mm
• Spout reach: 233 mm
• Maximum forward projection to end of lever: 184 mm
• Lever length: 165 mm
• Maximum worktop or sink thickness: 45 mm
• Tap hole size: Ø34–37 mm

Technical details:

• Finish: Chrome
• Operation: Single lever
• Flow rate at 3 bar: 6.0 litres/min
• Cold start function
• Eco Flow water-saving aerator
• Soft-closing ceramic cartridge
• Adjustable flow limiter
• Adjustable temperature limiter
• Integrated shut-off valve for dishwasher or washing machine
• Dishwasher valve supply: Switchable between cold and hot water
• Dishwasher valve factory setting: Cold water
• Flexible braided Soft PEX® connection hoses
• Connection hose length: 800 mm
• Water connection: G3/8 swivel nut
• Protection module: AA, applicable to the spout outlet
• Sound classification: Class 1
• Lead-free construction

Ideal for:

• Accessible and adapted kitchens
• Wheelchair-accessible homes
• Height-adjustable worktops and sink units
• Care homes and assisted-living accommodation
• Schools, colleges and training kitchens
• Public and community kitchens
• Inclusive kitchen renovations
• Fixed kitchen sinks requiring an accessible appliance shut-off control

Warranty:

• 5 years Warranty
• The product is covered by a 5-year warranty against manufacturing defects

FAQs:

• Is the Granberg Ergo KM11 suitable for wheelchair-accessible kitchens?
  Yes. Its extended lever, lower spout and front-mounted appliance shut-off valve are designed to improve reach and ease of operation, particularly from a seated position.
• What is the control on the front of the mixer?
  It is an integrated ceramic shut-off valve used to isolate the water supply to a dishwasher or washing machine.
• Why is a front-mounted dishwasher valve useful?
  It allows the appliance water supply to be turned on or off without reaching inside a cabinet or beneath the sink.
• Can the dishwasher valve be connected to hot water?
  Yes. The valve can be configured for either the cold or hot water supply, although it is supplied preset for cold water.
• Can the KM11 be installed on a height-adjustable kitchen?
  Yes. It is suitable for Granberg height-adjustable worktops and sink systems. The supplied 800 mm flexible connection hoses accommodate the movement of the installation.
• Can it also be fitted to a conventional fixed sink?
  Yes. The KM11 can be installed in fixed sinks and worktops as well as height-adjustable kitchen systems.
• How far does the spout project?
  The spout reach from the tap centreline to the outlet is 233 mm. The maximum forward projection to the end of the extended lever is 184 mm.
• Does the spout rotate?
  Yes. The limiting ring can be configured for 60°, 85° or 110° movement, or the spout can be allowed to rotate freely through 360°.
• What is cold start technology?
  Cold start means the mixer initially supplies cold water when the lever is operated from its central position, helping to avoid unnecessary hot water and energy use.
• What flow rate does the mixer provide?
  The rated flow rate is 6.0 litres per minute at a pressure of 3 bar.
