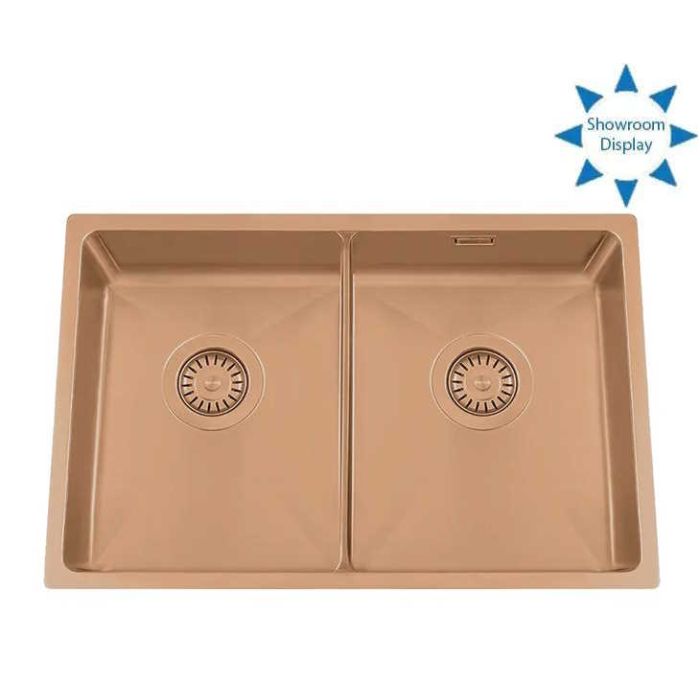

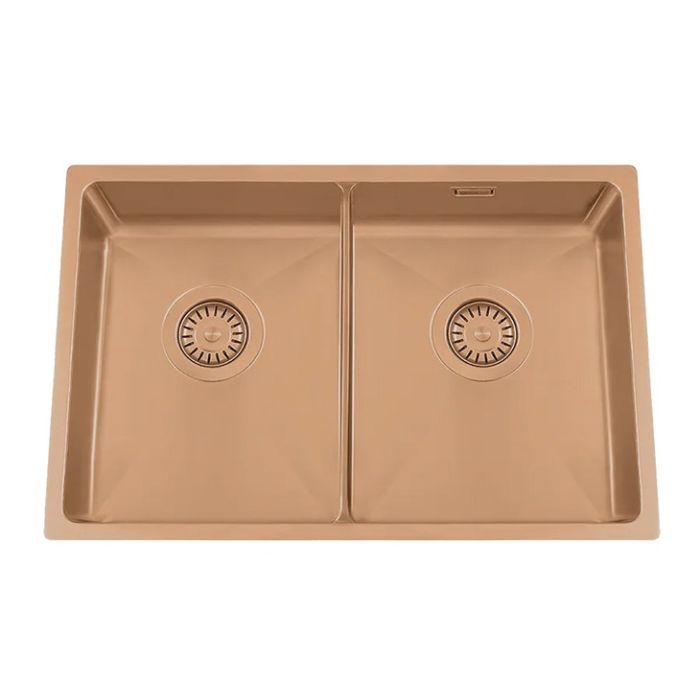

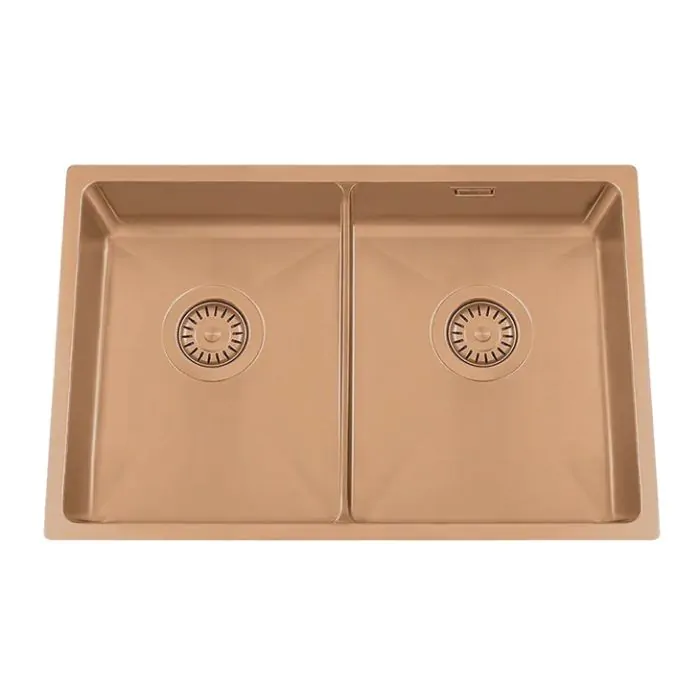

Granberg Ergosteel Trendline Copper PVD coated Insulated Kitchen Sink EST-80k - 72.8 cm, Inc. Flexible Waste Kit

The Granberg EST-80K twin shallow bowl kitchen sink has 4 mounting methods. 120mm depth twin bowl. Total width 728 x total depth of 440mm. Brushed Copper PVD coated Stainless steel. Suitable for domestic and commercial accessible kitchens. There is no deck space for mounting on the sink. Includes shallow waste/water trap and flexible waste kit. The Granberg EST-80K includes a pre-fitted heat insulation pad, for the underside of the sink bowl to prevent leg/knee burns.

The Granberg Ergosteel Trendline EST-80K is an excellent large twin shallow bowl kitchen sink, its high quality materials making it ideal for both domestic and commercial installations.

With two bowls and a shallow depth of just 120mm, this sink is ideal for insetting into a height adjustable worktop lift for a compact kitchen adaptation where space is limited.

PVD (Physical Vapor Deposition) creates a thin coating on the stainless-steel surface. PVD coated sinks are ideal for any kitchen environment because of their durable design and ease of maintenance. The PVD coating process is eco-friendly due to the lack of harmful chemicals in the production process.

Key benefits:

  • Provides added legroom under the sink, the specially designed waste/water trap is positioned towards the rear of the sink
  • Twin bowl sinks allow the user to do two separate tasks at once
  • Insulated to protect the users legs and knees
  • Profiled base improves water flow
  • Rear mounted overflow
  • Shallow dishwashing bowl with a depth of 120mm
  • Waste/water trap and overflow positioned to the rear of the sink bowl
  • Shallow waste/water trap with 90mm dia. waste outlet
  • Ideal for installing into a height adjustable worktop system
  • 1.2mm Brushed Copper PVD coated Stainless Steel construction
  • Universal flange allows it to be inset or under-mounted
  • Includes manual basket waste, overflow and a shallow water trap
  • Waste kit includes inlet options for washing machine and dishwasher waste feeds (See image gallery)
  • Includes 200-520mm flexible waste kit (Product Code: 61801)
  • Also available in PVD coated colour versions Black, Gold, Bronze and Champagne

Technical details:

  • For cabinet size (mm): 800
  • Plate thickness: 1.2mm, stainless steel
  • Brushed Copper PVD coated finish
  • Inside corner radius (mm): 20
  • Inner dimensions (mm): 340 / 340 x 400
  • Outer dimensions (mm): 728 x 440
  • Back to waste centre (mm): 145
  • Bowl depth (mm): 120
  • Overall Depth to waste outlet (mm): 125mm
  • Mounting: Inset, under-mounted, under gluing and planar gluing
  • Includes basket valve and water trap with flexible drain hose

Mounting - Inset

  • A hole is cut in the worktop and the inset sink is put in position from above. The inset sink is then fastened underneath with fittings while the outer edge lies on top of the worktop. This method is suitable for all types of worktop materials except natural stone. The hole should be cut-out on site by a fitter.

Mounting - Under-mounted

  • A hole with an edge is milled out in the worktop from below. The inset sink is then glued on from underneath. The thickness of the visible material above the sink varies depends on the thickness of material. Only suitable for installation in solid surface materials.

Mounting - Planar gluing

  • Attaches the sink to a worktop to the flat surface of the sink using adhesives to ensure a secure and watertight seal. Creates a seamless look with no visible edges. This mounting method is often used for under mount sinks. Only suitable for installation in solid surface materials.

Mounting - Under gluing

  • Under gluing a sink involves attaching the sink to the underside of the work top using an adhesive to secure the sink in place. Creates a watertight seal and a strong bond ensuring the sink is securely attached, creates a seamless look with no visible edges. Only suitable for installation in solid surface materials.

Heat Insulation Pad

  • The heat insulation pad prevents leg/knee burns
  • Materials: 4mm thick Cellular rubber
  • Temperature resistant acrylic glue

Warranty:

  • 2 year manufacturer warranty
Technical Information
Manufacturer Granberg
For Cabinet Size (mm) 800
Heat Insulated Yes
Bowl Depth (mm) 120
Sink Installation Inset, Undermount, Under gluing, Planar gluing
Stock status Available to order
Delivery time6 weeks
Returns Status Returnable in 14 days
