Granberg Fitting Kit for Cover Panels (Baselift & Manulift) - Alu-grey RAL 9006
Fitting kit for cover panels. Required to mount / hang the cover panels allowing them to slide up and down when fitted to any of the Granberg Baselift, Plusmodules and Manulift series of height adjustable worktop lifts. Fitting kit made of mild steel, powder coated Alu-grey RAL 9006. (Note the Cover Panels are not included, available separately in White).
This fitting kit by Granberg is used for the cover panels on Baselift, Plusmodules and Manulift series of height adjustable worktop lifts.
These fixings allow the cover panels to slide up and down regardless of height, to hide the wall legs, services and electric wiring. White cover panels available separately supplied in a custom width 590 to 2400mm (Product Code: 6260-240-01).
If you are fitting your own Cover Panels to colour match your kitchen. The Panels must be 12-20mm Thick x 438mm High x Length of worktop frame -10mm.
Key benefits:
- Fitting kit for cover panels
- 2x upper bracket fixings - hangs the top cover panel (not included)
- Each bracket mounts to the top frame plate of the worktop leg
- The top panel is retained by plastic turning knobs, allowing for easy panel removal
- The lower panel sits on the floor, fixed back to the wall
- 1x fitting kit required per 2400mm of worktop length

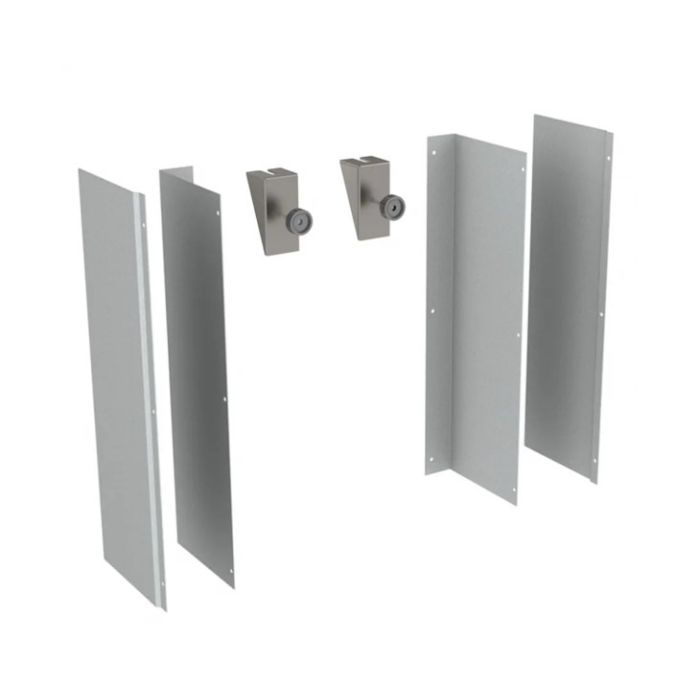

- Includes 2x pairs of sliding end/side panels - mild steel powder coated Alu-grey RAL 9006
- For the Granberg Baselift (HA / LA), Plusmodules, Manulift series
- See the PDF Downloads for more information
Warranty:
- 3 year manufacturer warranty
| Manufacturer | Granberg |
|---|---|
| Compatible Model | Baselift 6600, Baselift 6300HA, Baselift 6300LA, Baselift 6310HA, Baselift 6310LA, CRN Baselift 6301HA, CRN Baselift 6311HA, CRN Baselift 6301LA, CRN Baselift 6302HA, CRN Baselift 6312HA, CRN Baselift 6302LA, CRN Baselift 6303HA, CRN Baselift 6303LA, CRN Baselift 6313HA, Plusmodule 6305HA, Plusmodule 6305LA, Plusmodule 6306HA, Plusmodule 6306LA, Plusmodule 6315HA, Plusmodule 6315LA, Plusmodule 6316HA, Plusmodule 6316LA, Manulift 6350HA, Manulift 6380HA, Manulift 6380LA |
| Colour | Grey |
| Stock status | Available to order |
|---|---|
| Delivery time | 7-10 working days |
| Returns Status | Returnable in 14 days |
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
Fitting kit for cover panels. Required to mount / hang the cover panels allowing them to slide up and down when fitted to any of the Granberg Baselift, Plusmodules and Manulift series of height adjustable worktop lifts. Fitting kit made of mild steel, powder coated Alu-grey RAL 9006. (Note the Cover Panels are not included, available separately in White).
Product Code:
6260-005-06
