Granberg Fitting Kit for Cover Panels (Baselift & Manulift) - Anthracite

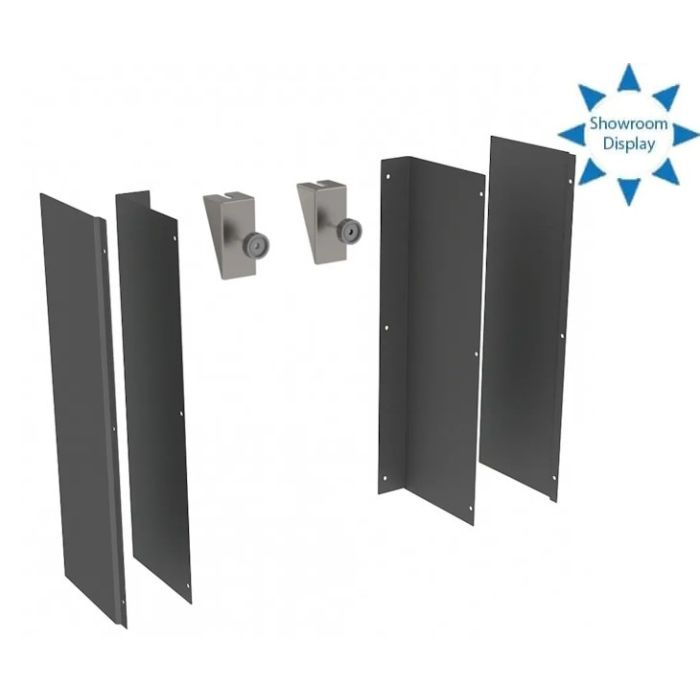

Fitting kit for cover panels. Required to mount / hang the cover panels allowing them to slide up and down when fitted to any of the Granberg Baselift, Plusmodules and Manulift series of height adjustable worktop lifts. Fitting kit made of mild steel, powder coated Anthracite. (Note the Cover Panels are not included, available separately in Anthracite).
The Granberg Cover Panel Fitting Kit is designed for installing cover panels to compatible Baselift, Plusmodules and Manulift height adjustable worktop lifting systems.
The fittings allow the cover panels to slide as the worktop is raised and lowered, providing a neat way to conceal the lifting legs, services and electrical wiring beneath the worktop. Granberg Anthracite cover panels are available separately, or the fitting kit can be used with suitable customer-supplied panels to coordinate with the surrounding kitchen.
Key benefits:
- Fitting kit for installing sliding cover panels beneath Granberg height adjustable worktops
- Helps conceal the worktop lifting legs, services and electrical wiring
- Allows the cover panels to move as the worktop height is adjusted
- Includes 2 upper bracket fixings for hanging the top cover panel
- Each upper bracket mounts to the top frame plate of the worktop leg
- Top panel is retained by plastic turning knobs for easy removal when access is required
- Lower cover panel sits on the floor and is fixed back to the wall
- Includes 2 pairs of sliding end/side panels
- End/side panels manufactured from mild steel with an Anthracite powder-coated finish
- One fitting kit is required for each 2400 mm of worktop length
- Compatible with Granberg Baselift HA and LA series
- Compatible with Granberg Plusmodules
- Compatible with Granberg Manulift series
Cover panel options:
- Granberg Anthracite cover panels are available separately in custom widths from 590 to 2400 mm
- Granberg Anthracite Cover Panel product code: 6260-240-07
- Alternatively, suitable cover panels can be supplied to coordinate with the surrounding kitchen
Customer-supplied cover panel requirements:
- Panel thickness (mm): 12-20
- Panel height (mm): 438
- Panel width: Worktop frame length minus 10 mm
Please note:
- Cover panels are not included with the fitting kit
- Please refer to the PDF downloads for further installation information
Warranty:
- 3-year manufacturer warranty
| Manufacturer | Granberg |
|---|---|
| Compatible Model | Baselift 6600, Baselift 6300HA, Baselift 6300LA, Baselift 6310HA, Baselift 6310LA, CRN Baselift 6301HA, CRN Baselift 6311HA, CRN Baselift 6301LA, CRN Baselift 6302HA, CRN Baselift 6312HA, CRN Baselift 6302LA, CRN Baselift 6303HA, CRN Baselift 6303LA, CRN Baselift 6313HA, Plusmodule 6305HA, Plusmodule 6305LA, Plusmodule 6306HA, Plusmodule 6306LA, Plusmodule 6315HA, Plusmodule 6315LA, Plusmodule 6316HA, Plusmodule 6316LA, Manulift 6350HA, Manulift 6380HA, Manulift 6380LA |
| Colour | Anthracite - 07 |
| Stock status | Available to order |
|---|---|
| Delivery time | 7-10 working days |
| Returns Status | Returnable in 14 days |
