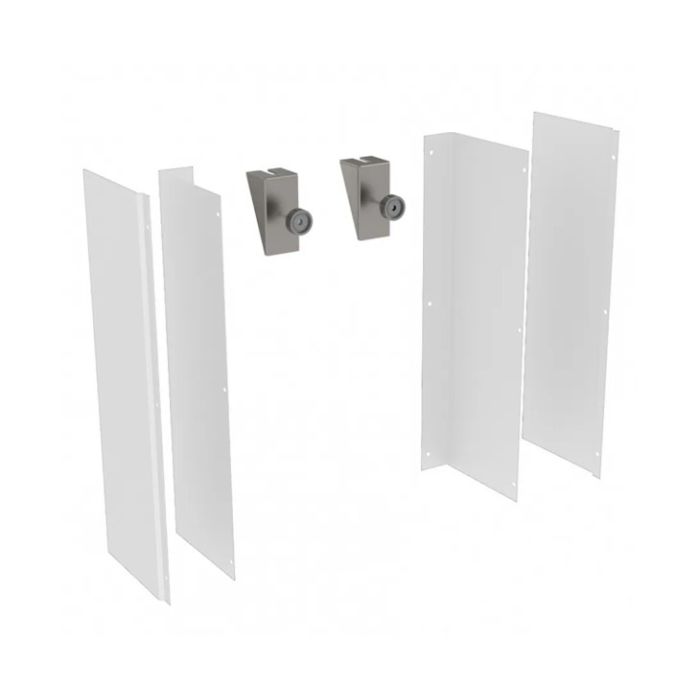

Granberg Fitting Kit for Cover Panels (Baselift & Manulift) - White
Fitting kit for cover panels. Required to mount / hang the cover panels allowing them to slide up and down when fitted to any of the Granberg Baselift, Plusmodules and Manulift series of height adjustable worktop lifts. Fitting kit made of mild steel, powder coated White. (Note the Cover Panels are not included, available separately in White).
The Granberg Cover Panel Fitting Kit is designed for use with the Baselift, Plusmodules and Manulift ranges of height-adjustable worktop lifts.
The fitting kit allows the cover panels to slide smoothly as the worktop is raised or lowered, concealing the wall-mounted lifting legs, plumbing services and electrical wiring for a neat, integrated finish.
White cover panels are available separately in custom widths from 590 mm to 2400 mm (Product Code: 6260-240-01).
If using your own cover panels to match the surrounding kitchen cabinetry, the panels must meet the following dimensions:
- Thickness: 12–20 mm
- Height: 438 mm
- Length: Worktop frame length minus 10 mm
Key Features and Benefits
- Fitting kit for cover panels on Granberg height-adjustable worktop lifts.
- Includes 2 upper mounting brackets for suspending the top cover panel (cover panel not included).
- Each upper bracket attaches to the top frame plate of the worktop lifting leg.
- The upper cover panel is secured using plastic turning knobs, allowing easy removal for maintenance and servicing.
- The lower cover panel rests on the floor and is secured to the wall.
- One fitting kit is required for every 2400 mm of worktop length.
- Includes 2 pairs of sliding end/side panels manufactured from mild steel with a white powder-coated finish.
- Compatible with Granberg Baselift (HA/LA), Plusmodules and Manulift worktop lift systems.
- See the PDF Downloads section for further technical information and installation details.
Warranty
Supplied with a 3-year manufacturer's warranty.
| Manufacturer | Granberg |
|---|---|
| Compatible Model | Baselift 6600, Baselift 6300HA, Baselift 6300LA, Baselift 6310HA, Baselift 6310LA, CRN Baselift 6301HA, CRN Baselift 6311HA, CRN Baselift 6301LA, CRN Baselift 6302HA, CRN Baselift 6312HA, CRN Baselift 6302LA, CRN Baselift 6303HA, CRN Baselift 6303LA, CRN Baselift 6313HA, Plusmodule 6305HA, Plusmodule 6305LA, Plusmodule 6306HA, Plusmodule 6306LA, Plusmodule 6315HA, Plusmodule 6315LA, Plusmodule 6316HA, Plusmodule 6316LA, Manulift 6350HA, Manulift 6380HA, Manulift 6380LA |
| Colour | White |
| Stock status | Available to order |
|---|---|
| Delivery time | 7-10 working days |
| Returns Status | Returnable in 14 days |
