Granberg Kitchen Worktop Lift Baselift Corner 6301HA, 103 mm Front, 45°- 90°, Wall-mounted

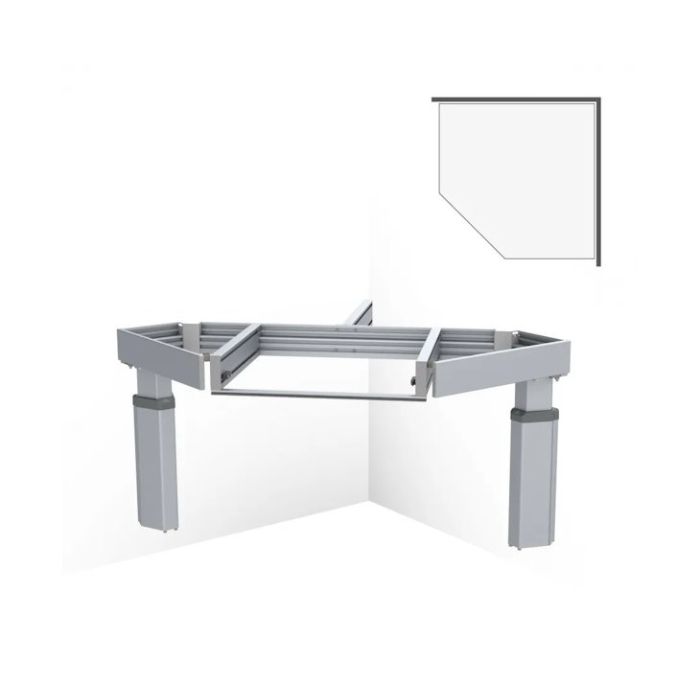

The Granberg Baselift Corner 6301HA is a wall-mounted electric height adjustable corner kitchen worktop lift, designed to create an accessible and ergonomic kitchen for both seated and standing users.

Designed with a 45° front edge and 90° corner at the wall, the 6301HA makes effective use of corner space while leaving the area beneath the worktop open for improved leg and knee clearance.

The HA version features Granberg's 103 mm high compartment frame, providing additional installation space beneath the worktop. This makes it particularly suitable for incorporating a shallow kitchen sink, cooking hob or integrated drawer.

The aluminium frame is prepared and assembled at the factory, with sideways and angle-adjustable consoles. The electronic and motor system uses Granberg's simple plug-and-play system to help simplify installation on site.

The 6301HA provides 300mm of smooth, stepless electric height adjustment, allowing the worktop to be positioned between 700-1000 mm above floor level, excluding the worktop.

Key benefits:

• Electric wall-mounted corner kitchen worktop lifting system
• Designed with a 45° front edge and 90° corner at the wall
• 300mm of stepless powered height adjustment
• Worktop height adjustable between 700-1000 mm above floor level, excluding the worktop
• 103 mm high HA compartment frame provides increased installation space
• Suitable for incorporating a shallow kitchen sink, cooking hob or integrated drawer
• Open space beneath the worktop provides improved leg and knee clearance for seated users
• 100 kg maximum distributed lifting force
• Adjustable frame depth between 560-590 mm from the wall
• Aluminium frame with sideways and angle-adjustable consoles
• Frame prepared and assembled at the factory to simplify installation
• Granberg plug-and-play electronic and motor system
• Factory-fitted safety stop strip beneath the front edge of the worktop
• Brackets and screws for installation of fascia fronts and worktop are included
• Can be combined with Granberg wall cabinet lifting systems to create a fully height adjustable kitchen solution

Plusmodules - extend the worktop lift:

• The Baselift Corner 6301HA can be extended using compatible Granberg Plusmodules
• A Plusmodule extends the height adjustable worktop frame from the corner module and adds an additional lifting leg to support the extended worktop
• A Plusmodule can be fitted to either the left or right side of the corner lift, or to both sides
• Each side can be extended by up to 2400 mm, allowing a considerably larger height adjustable worktop arrangement to be created
• When Plusmodules are fitted to both sides, both extended sections rise and lower together with the corner worktop as one complete height adjustable system
• Left and right Plusmodules are available separately and must be selected to suit the required kitchen layout and worktop dimensions
• Plusmodules provide additional flexibility for incorporating preparation areas, shallow sinks and cooking hobs within the height adjustable worktop
• Please refer to the compatible Plusmodules and PDF installation information, or contact us for help configuring your required layout

Integrated safety system:

• A safety stop strip is factory fitted beneath the front edge of the worktop
• If the safety strip comes into contact with an obstruction while the worktop is lowering, movement stops
• Optional side safety stop strips can be factory fitted to the left and/or right side where required
• Side safety stop strips may be required where the moving worktop is adjacent to fixed furniture or another potential trapping point
• A side safety stop strip is not required on a side where a compatible Plusmodule is being fitted
• Please refer to the Granberg installation instructions when designing and installing the complete system

Optional controls:

• Granberg Corded Control Button, Black - Product Code: 61320-10
• Granberg Double Control Frame, Black - For 2 Control Buttons - Product Code: 61352-10
• Granberg Corded Mini Touch Control Buttons for Baselift - Product Code: 61318
• Granberg Radio Hand Control for 1 lifting system, Black - Product Code: 61385-10
• Granberg Radio Hand Control for 2 lifting systems, Black - Product Code: 61387-10
• Granberg Safety Key Lock for wired controls only - Product Code: 61360
• Wired Mini control buttons and the Safety Key Lock can be factory fitted when ordered with a compatible aluminium fascia front
• Please specify the preferred control position when ordering

Controlling a worktop lift and wall cabinet lift:

• The Baselift Corner can be combined with a Granberg wall cabinet lifting system above to create a more completely height adjustable kitchen
• Where separate control buttons are required for the worktop lift and wall cabinet lift, they can be mounted neatly together using the Granberg Double Control Frame, Black (Product Code: 61352-10)
• The double frame provides one coordinated mounting position for two separate control buttons while allowing each lifting system to be operated independently
• Alternatively, compatible Granberg multi-system radio hand controls can be selected where appropriate

Optional 103 mm fascia fronts:

• Optional 103 mm high aluminium fascia fronts can be supplied factory fitted to the Baselift Corner
• The fascia fronts conceal the front of the compartment frame and provide a neat finished appearance beneath the worktop
• Choice of Anodised Aluminium, White Powder Coated Aluminium RAL 9003 or Anthracite finish
• Compatible wired control buttons and the Safety Key Lock can be factory fitted into the fascia front when selected
• Please specify the required position of factory-fitted controls when ordering

Optional accessories:

• Left and right Plusmodules for extending the height adjustable worktop by up to 2400 mm on either or both sides
• Integrated pull or push-to-open drawers can be incorporated into the 103 mm compartment frame where suitable
• Cover panels can be fitted beneath the lift to conceal the lifting motors, plumbing, drainage and electrical services
• Shallow bowl kitchen sinks can be incorporated into the worktop
• Cooking hobs can be incorporated subject to the required installation clearances and heat protection
• Granberg wall cabinet lifting systems can be installed above to provide accessible storage
• Mobile base cabinets can be positioned beneath suitable sections of the worktop
• See the PDF Downloads and compatible accessories for further information

Cover panels:

• Optional telescopic cover panels can be used to conceal the lifting motors, plumbing, drainage and electrical services beneath the worktop
• Two cover panels are required for the standard corner module
• Panel height: 438 mm
• Panel thickness: 12-20 mm
• If manufacturing your own panels, please refer to the Granberg drawings and installation instructions for the required dimensions

Technical details:

• Manufacturer: Granberg
• Product: Baselift Corner 6301HA
• Manufacturer product code: 6301HA-1045
• Overall module size (mm): 1045 x 1045
• Corner configuration: 45° front edge, 90° wall
• Installation: Wall-mounted
• Front frame height (mm): 103
• Height adjustment (mm): 300
• Worktop height range (mm): 700-1000, excluding worktop
• Operation: Motorised, stepless height adjustment
• Speed (mm/sec): 30
• Controls: Optional corded button or radio control
• Lifting force (kg): 100
• Safety: Factory-fitted safety stop strip beneath the front edge of the worktop
• Electrical connection: 2 x plugs for 230V, max. 5A
• IP-class: IP20
• Frame depth from wall (mm): 560-590
• Suitable worktop depth (mm): 565-630
• Worktop should be 15mm shallower than adjoining fixed cabinet worktops
• Worktop width: Width of the lift
• Clearance to wall or adjoining cabinet (mm): 5
• Clearance to wall for tiles (mm): 15
• Tiling: From 700mm above floor, alternatively down to floor level
• Plumbing connections: Connection using flexible hoses
• Cover panel quantity: 2
• Cover panel height (mm): 438
• Cover panel thickness (mm): 12-20
• Material: Aluminium frame
• Fittings supplied: Brackets for fascia fronts and worktop

CAD design service:

• A CAD design service is available to help configure the Granberg Baselift Corner system for your kitchen
• We can assist with the corner lift layout, Plusmodule extensions, worktop dimensions and the positioning of sinks, cooking hobs, drawers and compatible Granberg wall cabinet lifts
• Please contact us with your plans, dimensions and requirements to discuss your proposed installation

Warranty:

• 5-year manufacturer warranty when registered with Granberg
• This product is covered against manufacturing defects for 5 years when registered on Granberg's website
• Without registration, the standard 3-year manufacturer warranty applies

Please note:

• This is a made-to-order lifting system configured for the individual installation
• Due to the custom nature of this product, it is non-returnable
• Worktop, sink, tap, hob, drawers, controls, fascia fronts, Plusmodules, cover panels and other accessories are not included unless specifically selected or stated in your quotation or order
