Granberg Kitchen Worktop Lift Baselift Corner 6301LA, 40 mm Front, 45°- 90°, Wall-mounted

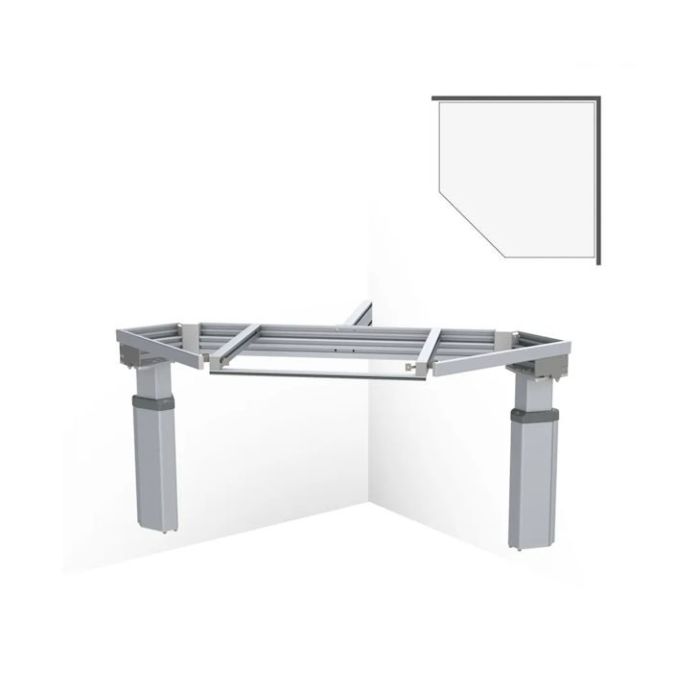

The Granberg Baselift Corner 6301LA is a wall-mounted electric height adjustable corner kitchen worktop lift, designed to create an accessible and ergonomic kitchen for both seated and standing users.

Designed with a 45° front edge and 90° corner at the wall, the 6301LA makes effective use of corner space while leaving the area beneath the worktop open for improved leg and knee clearance.

The LA version features Granberg's slim 40mm high frame, creating a discreet installation beneath the worktop. The frame can accommodate a compatible cooking hob, making the 6301LA ideal where a height adjustable preparation and cooking area is required.

The aluminium frame is prepared and assembled at the factory, with sideways and angle-adjustable consoles. The electronic and motor system uses Granberg's simple plug-and-play system to help simplify installation on site.

The 6301LA provides 300mm of smooth, stepless electric height adjustment, allowing the worktop to be positioned between 700-1000mm above floor level, excluding the worktop.

Key benefits:

• Electric wall-mounted corner kitchen worktop lifting system
• Designed with a 45° front edge and 90° corner at the wall
• 300mm of stepless powered height adjustment
• Worktop height adjustable between 700-1000mm above floor level, excluding the worktop
• Slim 40mm high LA frame creates a discreet installation beneath the worktop
• Suitable for incorporating a compatible cooking hob
• Open space beneath the worktop provides improved leg and knee clearance for seated users
• 100kg maximum distributed lifting force
• Adjustable frame depth between 560-590mm from the wall
• Aluminium frame with sideways and angle-adjustable consoles
• Frame prepared and assembled at the factory to simplify installation
• Granberg plug-and-play electronic and motor system
• Factory-fitted safety stop strip beneath the front edge of the worktop
• Brackets and screws for installation of fascia fronts and worktop are included
• Can be combined with Granberg wall cabinet lifting systems to create a fully height adjustable kitchen solution

Plusmodules - extend the worktop lift:

• The Baselift Corner 6301LA can be extended using compatible Granberg Plusmodules
• A Plusmodule extends the height adjustable worktop frame from the corner module and adds an additional lifting leg to support the extended worktop
• A Plusmodule can be fitted to either the left or right side of the corner lift, or to both sides
• Each side can be extended by up to 2400mm, allowing a considerably larger height adjustable worktop arrangement to be created
• When Plusmodules are fitted to both sides, both extended sections rise and lower together with the corner worktop as one complete height adjustable system
• Left and right Plusmodules are available separately and must be selected to suit the required kitchen layout and worktop dimensions
• Plusmodules provide additional flexibility for creating larger height adjustable preparation and cooking areas
• Please refer to the compatible Plusmodules and PDF installation information, or contact us for help configuring your required layout

Integrated safety system:

• A safety stop strip is factory fitted beneath the front edge of the worktop
• If the safety strip comes into contact with an obstruction while the worktop is lowering, movement stops
• Optional side safety stop strips can be factory fitted to the left and/or right side where required
• Side safety stop strips may be required where the moving worktop is adjacent to fixed furniture or another potential trapping point
• A side safety stop strip is not required on a side where a compatible Plusmodule is being fitted
• Please refer to the Granberg installation instructions when designing and installing the complete system

Optional controls:

• The Baselift Corner 6301LA can be operated using a choice of Granberg wired or wireless radio controls
• Granberg Corded Mini Touch Control Buttons for Baselift (Product Code: 61318)
• Granberg Radio Hand Control for 1 lifting system, Black (Product Code: 61385-10)
• Granberg Radio Hand Control for 2 lifting systems, Black (Product Code: 61387-10)
• Granberg Safety Key Lock can be used with the wired control to help prevent unauthorised operation (Product Code: 61360)
• Where a compatible fascia front is selected, the Mini wired control and Safety Key Lock can be factory fitted
• Please specify the required control position, for example left, centre or right, when ordering factory-fitted wired controls

Optional 40mm fascia fronts:

• Optional 40mm high aluminium fascia fronts can be supplied factory fitted to the Baselift Corner
• The fascia fronts conceal the front of the frame and provide a neat finished appearance beneath the worktop
• Choice of Anodised Aluminium, White Powder Coated Aluminium RAL 9003 or Anthracite finish
• The Granberg Mini wired control and Safety Key Lock can be factory fitted when selected
• Please specify the required position of factory-fitted controls when ordering

Optional accessories:

• Left and right Plusmodules for extending the height adjustable worktop by up to 2400mm on either or both sides
• Cover panels can be fitted beneath the lift to conceal the lifting motors, plumbing, drainage and electrical services
• A compatible cooking hob can be incorporated into the worktop subject to the required installation clearances and heat protection
• Heat protection panels are available for suitable cooking hob installations - please contact us for further information
• Granberg wall cabinet lifting systems can be installed above to provide accessible storage
• Mobile base cabinets can be positioned beneath suitable sections of the worktop
• See the PDF Downloads and compatible accessories for further information

Cover panels:

• Optional telescopic cover panels can be used to conceal the lifting motors, plumbing, drainage and electrical services beneath the worktop
• Two cover panels are required for the standard corner module
• Panel height: 438mm
• Panel thickness: 12-20mm
• If manufacturing your own panels, please refer to the Granberg drawings and installation instructions for the required dimensions

Technical details:

• Manufacturer: Granberg
• Product: Baselift Corner 6301LA
• Manufacturer product code: 6301LA-1045
• Overall module size (mm): 1045 x 1045
• Corner configuration: 45° front edge, 90° wall
• Installation: Wall-mounted
• Front frame height (mm): 40
• Free space for compatible electric hob - width x depth (mm): 568 x 505
• Height adjustment (mm): 300
• Worktop height range (mm): 700-1000, excluding worktop
• Operation: Motorised, stepless height adjustment
• Speed (mm/sec): 30
• Controls: Optional Mini wired control or radio hand control
• Lifting force (kg): 100
• Safety: Factory-fitted safety stop strip beneath the front edge of the worktop
• Electrical connection: 2 x plugs for 230V, max. 5A
• IP-class: IP20
• Frame depth from wall (mm): 560-590
• Suitable worktop depth (mm): 565-630
• Worktop should be 15mm shallower than adjoining fixed cabinet worktops
• Worktop width: Width of the lift
• Clearance to wall or adjoining cabinet (mm): 5
• Clearance to wall for tiles (mm): 15
• Tiling: From 700mm above floor, alternatively down to floor level
• Plumbing connections: Connection using flexible hoses
• Cover panel quantity: 2
• Cover panel height (mm): 438
• Cover panel thickness (mm): 12-20
• Material: Aluminium frame
• Fittings supplied: Brackets for fascia fronts and worktop

CAD design service:

• A CAD design service is available to help configure the Granberg Baselift Corner system for your kitchen
• We can assist with the corner lift layout, Plusmodule extensions, worktop dimensions and the positioning of cooking hobs and compatible Granberg wall cabinet lifts
• Please contact us with your plans, dimensions and requirements to discuss your proposed installation

Warranty:

• 5-year manufacturer warranty when registered with Granberg
• This product is covered against manufacturing defects for 5 years when registered on Granberg's website
• Without registration, the standard 3-year manufacturer warranty applies

Please note:

• This is a made-to-order lifting system configured for the individual installation
• Due to the custom nature of this product, it is non-returnable
• Worktop, hob, controls, fascia fronts, Plusmodules, cover panels and other accessories are not included unless specifically selected or stated in your quotation or order
