Granberg Motorised Washbasin Lift BASICLINE 415-03-05 - Incl. Mixer Tap with 150 mm Lever - White

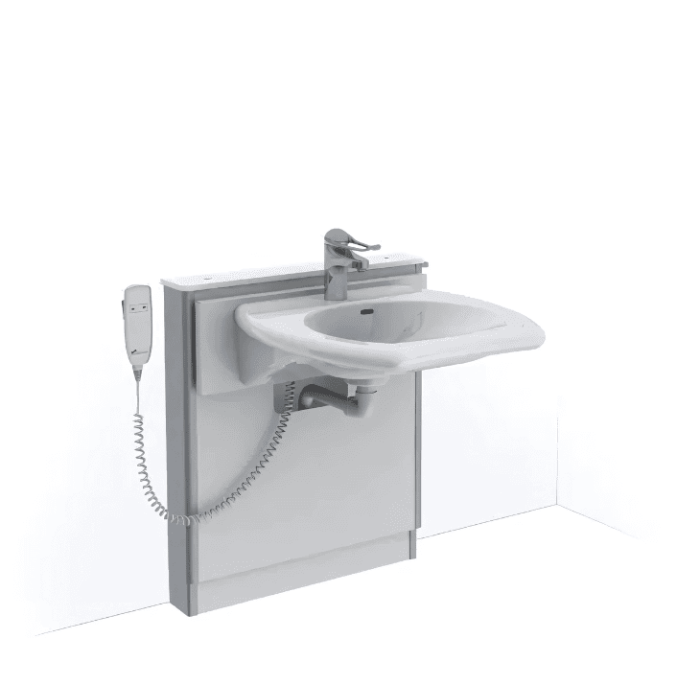

The Granberg BASICLINE 415-03-05 is a white, electrically height-adjustable washbasin system with 250 mm of continuous adjustment. Includes the wheelchair-accessible 425-003 porcelain basin, 150 mm lever mixer tap, wired hand controller and integrated safety stop. Provides 586 mm clear knee space for seated use.
The Granberg BASICLINE 415-03-05 is an electrically height-adjustable washbasin system designed to provide accessible washing facilities for seated and standing users. Finished in white, the low-profile lifting unit offers 250 mm of continuous height adjustment using a wired hand controller.
This complete system includes the Granberg 425-003 wheelchair-accessible porcelain washbasin, featuring a shallow bowl, tapered front edge and integrated overflow. The basin provides 586 mm of clear knee space to accommodate wheelchair users, while the mixer tap features an extended 150 mm lever for easier operation.
The BASICLINE 415 incorporates an integrated safety switch that stops downward movement if the washbasin encounters an obstruction. Flexible water supply and waste connections are concealed behind the lifting unit's back panel, providing a practical installation beneath a fixed mirror or mirror cabinet.
Key Features & Benefits
- Electrically height-adjustable washbasin with 250 mm of continuous vertical movement.
- Suitable for seated and standing users, including wheelchair users.
- Wall-mounted, low-profile lifting system finished in white.
- Granberg 425-003 porcelain washbasin with shallow bowl, tapered front edge, overflow and plug.
- 586 mm clear knee space beneath the washbasin.
- Granberg FMM 425-105 mixer tap with extended 150 mm operating lever.
- Wired hand controller with IP65 protection rating and support hook.
- Integrated safety switch stops downward movement when an obstruction is detected.
- Concealed flexible plumbing connections behind the lifting unit.
- Suitable for installation beneath a fixed mirror or mirror cabinet.
- Maximum washbasin load of 50 kg.
Included Components
- 415-0 BASICLINE motorised washbasin lift.
- 425-003 porcelain washbasin with overflow and plug.
- 425-105 FMM mixer tap with 150 mm lever.
- 425-410 wired hand controller.
- 425-403 safety switch.
- 425-331 flexible waste hose and water trap.
- 425-311 flexible water supply hoses.
Technical Specifications
- Manufacturer: Granberg
- Product code: 415-03-05
- Range: BASICLINE 415
- Finish: White
- Operation: Electric, continuously adjustable
- Mounting: Wall-mounted
- Overall width: 650 mm
- Overall depth: 695 mm
- Washbasin dimensions: 600 x 550 mm
- Height adjustment: 250 mm
- Clear knee space: 586 mm
- Distance from basin front edge to mixer tap lever: 324 mm
- Adjustment speed: 18 mm/second
- Lifting force: 100 kg
- Maximum washbasin load: 50 kg
- Controller: Wired hand control, IP65 rated
- Electrical supply: 230 V, maximum 1.5 A
- Lift protection rating: IPX4
- Safety system: Integrated obstruction-sensitive safety switch
- Back panel: 4 mm compact laminate with anodised aluminium sides
- Top shelf: 12 mm compact laminate
- Safety switch: Powder-coated sheet steel
- Installation cover: 4 mm compact laminate
- Plumbing: Flexible water supply hoses and waste hose with water trap
Warranty
Granberg provides a 5-year manufacturer's warranty against manufacturing defects when the product is registered on the Granberg website. Without registration, the standard manufacturer's warranty is 3 years.
| Manufacturer | Granberg |
|---|---|
| Bracket Range | Granberg BASICLINE 415 |
| Bracket Operation | Electric |
| Bracket Adjustment | Wired Hand Control |
| Height Adjustment (mm) | 250 |
| For Washbasin Range | BASICLINE 425-003 |
| Bracket Mounting | Floor & Wall |
| Safety Stop | Yes |
| Stock status | Available to order |
|---|---|
| Delivery time | 1-2 weeks |
| Returns Status | Returnable in 14 days |
