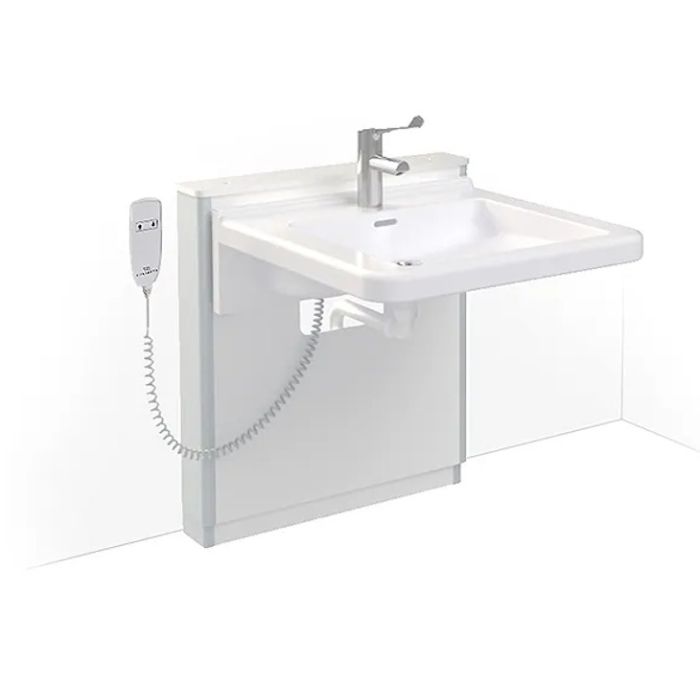

Granberg Motorised Washbasin Lift BASICLINE 415-10-20 - Incl. Mixer Tap with 190 mm Lever (TMV3 Approved) - White
Complete height adjustable pedestal washbasin lift. Electric operation with 250 mm continuously variable height. Wired hand controller. Includes the 425-010 wheelchair accessible washbasin with a shallow bowl, generous flat surfaces and easy-to-grip sides; with overflow and plug. Includes safety system. The 190 mm lever tap is designed for easy operation by hand or elbow, making it practical and hygienic in everyday use. With proven TMV3 thermostatic protection for safe temperature control, it is ideal for accessible facilities, sheltered accommodation, and domestic bathrooms. WRAS approved.
The Granberg Basicline 415 is a floor mounted electric washbasin lift the pedestal has a clean white finish. Supplied with a 190 mm lever tap that is WRAS and TMV3 approved.
Stylish and discreet, the entire system moves to the required height using the corded hand control.
This version includes the 425-010 washbasin and a safety system.
Key benefits:
- Complete height adjustable washbasin system
- 250 mm continuously variable height
- Low level, can be installed beneath a mirror or cabinet
- Electric operation with corded hand control
- Plumbing connections are elegantly concealed in the lifting unit
- Wheelchair accessible washbasin with shallow bowl, generous flat surfaces and easy-to-grip sides
- Depth of leg room under the washbasin 586 mm
- Includes safety stop switch - the washbasin will stop lowering if it comes into contact with any obstacle or the user's legs
- Sequential TMV3 mixer tap, 190 mm lever (WRAS Approved)
Includes:
- 415 Washbasin lift
- 425-120 Sequential TMV3 mixer tap, 190 mm lever (WRAS Approved)
- 425-410 Corded hand control
- 425-403 Safety switch for Basicline 415 washbasin lift
- 425-010 Washbasin with overflow and plug
- 425-331 Flexible drain hose with water trap
Technical details:
- Total width (mm): 650
- Total height (mm): 712-962 (adjustable)
- Total depth from front of washbasin to wall (mm): 695
- Width of washbasin (mm): 600
- Depth of washbasin (mm): 550
- Distance from front edge to tap lever (mm): 280
- Height from top of washbasin to floor (mm): 664-914 (adjustable)
- Washbasin centre-to-centre fixings (mm): 280
- Speed of operation: 18 mm / sec
- Lifting force (kg): 100
- Washbasin max. load (kg): 50
- Wired hand control: IP65 rated with support hook
- Electrical connection: Mains UK plug for 230 V / Max. 1.5A
- IP-class: IPX4
Material:
- Back panel: 4 mm compact laminate with sides of anodised aluminium
- Top shelf: 12 mm compact laminate
- Safety switch: Powder-coated sheet steel
- Installation cover: 4 mm compact laminate
Warranty:
- 5 year manufacturer warranty
- This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
| Manufacturer | Granberg |
|---|---|
| Bracket Range | Granberg BASICLINE 415 |
| Bracket Operation | Electric |
| Bracket Adjustment | Wired Hand Control |
| Height Adjustment (mm) | 250 |
| For Washbasin Range | BASICLINE 425-010 |
| Bracket Mounting | Floor & Wall |
| Safety Stop | Yes |
| Stock status | Available to order |
|---|---|
| Delivery time | 1-2 weeks |
| Returns Status | Returnable in 14 days |
