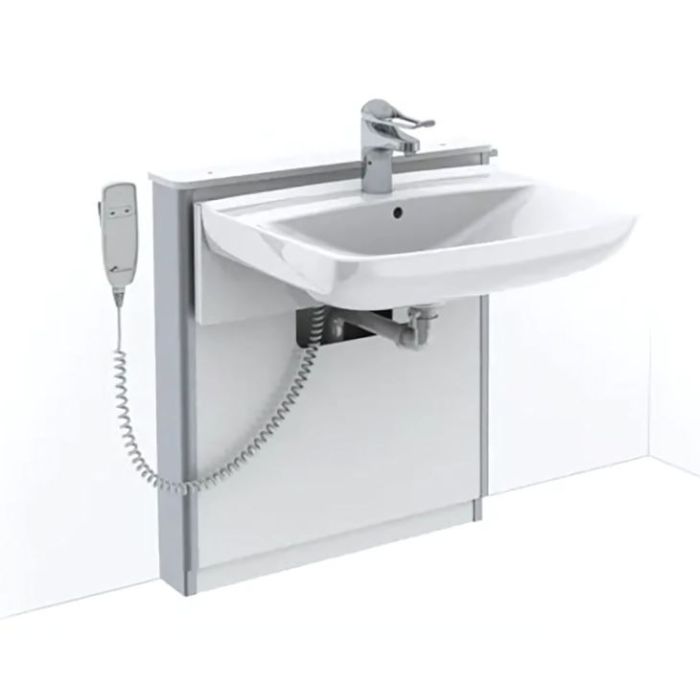

Granberg Motorised Washbasin Lift BASICLINE 415-11-05 - Incl. Mixer Tap with 150 mm Lever - White
The Granberg BASICLINE 415-11-05 is a white, electrically height-adjustable washbasin system with 250 mm of continuous adjustment. Includes the compact 425-011 porcelain basin measuring 600 x 445 mm, 150 mm lever mixer tap, wired hand controller and integrated safety stop. With an overall depth of 592 mm, it is suitable for children and smaller bathrooms, providing 482 mm of clear leg space beneath the basin.
The Granberg BASICLINE 415-11-05 is an electrically height-adjustable washbasin system designed to provide accessible washing facilities in compact bathrooms and spaces used by children. Finished in white, the wall-mounted lifting unit offers 250 mm of continuous vertical adjustment, operated using a wired hand controller.
This complete system includes the Granberg 425-011 compact porcelain washbasin, measuring 600 x 445 mm and featuring an integrated overflow and plug. Its reduced projection makes it suitable for smaller bathrooms, while providing 482 mm of clear leg space beneath the basin for seated users. The system is supplied with a Granberg FMM 425-105 mixer tap featuring an extended 150 mm operating lever.
The BASICLINE 415 incorporates an integrated safety switch that stops downward movement if the washbasin encounters an obstruction. Flexible water supply and waste connections are concealed behind the lifting unit's back panel, allowing installation beneath a fixed mirror or mirror cabinet.
Key Features & Benefits
- Electrically height-adjustable washbasin with 250 mm of continuous vertical movement.
- Compact washbasin configuration suitable for children and smaller bathrooms.
- Suitable for seated and standing users, subject to individual access requirements.
- Wall-mounted, low-profile lifting system finished in white.
- Granberg 425-011 compact porcelain washbasin measuring 600 x 445 mm.
- Washbasin supplied with integrated overflow and plug.
- Reduced overall projection of 592 mm from the wall.
- 482 mm clear leg space beneath the washbasin.
- Granberg FMM 425-105 mixer tap with extended 150 mm operating lever.
- Wired hand controller with IP65 protection rating and support hook.
- Integrated safety switch stops downward movement when an obstruction is detected.
- Concealed flexible plumbing connections behind the lifting unit.
- Suitable for installation beneath a fixed mirror or mirror cabinet.
- Maximum washbasin load of 50 kg.
Included Components
- 415-0 BASICLINE motorised washbasin lift.
- 425-011 compact porcelain washbasin with overflow and plug.
- 425-105 Granberg FMM mixer tap with 150 mm lever.
- 425-410 wired hand controller.
- 425-403 integrated safety switch.
- 425-331 flexible waste hose and water trap.
- 425-311 flexible water supply hoses with 3/8" connections (two supplied).
Technical Specifications
- Manufacturer: Granberg
- Product code: 415-11-05
- Range: BASICLINE 415
- Finish: White
- Operation: Electric, continuously adjustable
- Mounting: Wall-mounted
- Overall width: 650 mm
- Overall depth: 592 mm
- Overall height: 712–962 mm
- Washbasin dimensions: 600 x 445 mm
- Washbasin height above floor: 679–929 mm
- Height adjustment: 250 mm
- Clear leg space beneath basin: 482 mm
- Distance from basin front edge to mixer tap lever: 225 mm
- Mixer tap: Granberg FMM 425-105
- Mixer tap lever length: 150 mm
- Washbasin centre-to-centre fixings: 280 mm
- Adjustment speed: 18 mm/second
- Lifting force: 100 kg
- Maximum washbasin load: 50 kg
- Controller: Wired hand control, IP65 rated
- Electrical supply: 230 V, maximum 1.5 A
- Lift protection rating: IPX4
- Safety system: Integrated obstruction-sensitive safety switch
- Back panel: 4 mm compact laminate with anodised aluminium sides
- Top shelf: 12 mm compact laminate
- Safety switch: Powder-coated sheet steel
- Installation cover: 4 mm compact laminate
- Plumbing: Flexible water supply hoses and waste hose with water trap
Warranty
Granberg provides a 5-year manufacturer's warranty against manufacturing defects when the product is registered on the Granberg website. Without registration, the standard manufacturer's warranty is 3 years.
| Manufacturer | Granberg |
|---|---|
| Bracket Range | Granberg BASICLINE 415 |
| Bracket Operation | Electric |
| Bracket Adjustment | Wired Hand Control |
| Height Adjustment (mm) | 250 |
| For Washbasin Range | BASICLINE 425-011 |
| Bracket Mounting | Floor & Wall |
| Safety Stop | Yes |
| Stock status | Available to order |
|---|---|
| Delivery time | 1-2 weeks |
| Returns Status | Returnable in 14 days |
