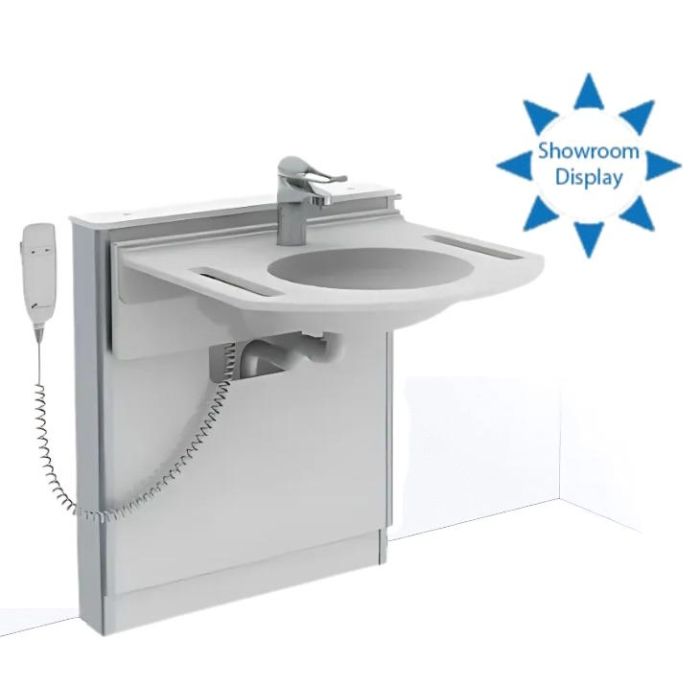

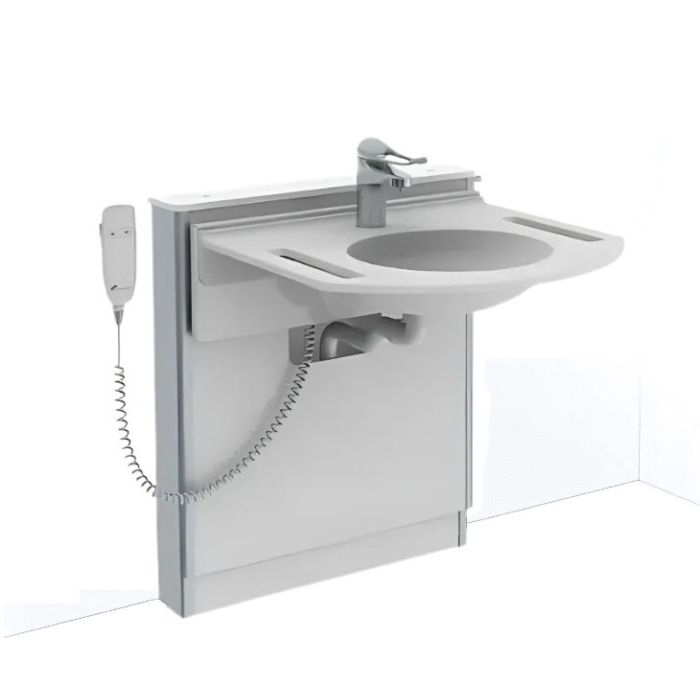

Granberg Motorised Washbasin Lift BASICLINE 415-15-05 - Incl. Mixer Tap with 150 mm Lever - White

The Granberg Basicline 415 is a floor-mounted electric washbasin lifting system with a clean white finish, designed to provide a discreet and flexible height adjustable solution for accessible bathrooms and washrooms.

The complete washbasin assembly provides 250 mm of continuously variable electric height adjustment and is operated using a corded hand control. Its low-level design allows the system to be installed beneath a suitable mirror or bathroom cabinet, while plumbing connections are discreetly concealed within the lifting unit.

This version includes the Granberg 425-015 wheelchair accessible solid surface washbasin. Its shallow bowl provides generous leg room for seated users, while integrated gripping slots on either side offer useful handholds and can also be used for hanging towels. The washbasin has no overflow, making it particularly suitable where infection control is a consideration, and is supplied with a slotted waste without a plug.

An integrated safety switch provides additional protection during operation. If the washbasin encounters an obstruction, including the user's legs, while being lowered, downward movement is stopped.

Key benefits:

• Complete floor-mounted height adjustable washbasin system
• 250 mm of continuously variable electric height adjustment
• Low-level design allows installation beneath a suitable mirror or bathroom cabinet
• Electric operation using a corded hand control
• Plumbing connections are discreetly concealed within the lifting unit
• Wheelchair accessible washbasin with a shallow bowl
• Integrated gripping slots on either side of the washbasin provide useful handholds and can also be used for towels
• 586 mm depth of leg room beneath the washbasin
• Washbasin has no overflow, making it particularly suitable where infection control is a consideration
• Supplied with slotted waste and no plug
• Integrated safety switch stops downward movement if the washbasin encounters an obstruction
• Includes Granberg FMM 425-105 mixer tap with 150 mm extended lever and PEX hoses

Includes:

• Granberg Basicline 415 electric washbasin lift
• 425-105 Granberg FMM mixer tap with 150 mm extended lever and PEX hoses, as shown in the product images
• 425-410 corded hand control
• 425-403 safety switch for the Basicline 415 washbasin lift
• 425-015 solid surface washbasin with integrated gripping slots
• Slotted waste - no overflow or plug
• 425-331 flexible drain hose with water trap

Optional tap upgrades with 2 x 500 mm PEX flexible hoses:

• Granberg FMM 425-106 mixer tap with 150 mm extended lever, 1.5 m hose hand shower and PEX hoses
• Granberg FMM 425-110 infrared mixer tap with 6 V battery, temperature control and PEX hoses
• Please note: The FMM taps are not UK TMV rated or WRAS approved for commercial applications
• For the Basicline 415 washbasin lifting system supplied with a TMV3 and WRAS approved tap, please see Product Code: 415-15-20

Technical details:

• Total width (mm): 650
• Total height (mm): 712-962
• Height adjustment range (mm): 250
• Total depth from front of washbasin to wall (mm): 695
• Washbasin width (mm): 600
• Washbasin depth (mm): 550
• Depth of leg room beneath washbasin (mm): 586
• Distance from front edge to tap lever (mm): 315
• Washbasin height above floor (mm): 654-904
• Washbasin centre-to-centre fixings (mm): 280
• Adjustment speed (mm/sec): 18
• Lifting force (kg): 100
• Maximum washbasin load (kg): 50
• Wired hand control: IP65 rated with support hook
• Electrical connection: Mains UK plug, 230 V, max. 1.5 A
• IP rating: IPX4

Materials:

• Back panel: 4 mm compact laminate with anodised aluminium sides
• Top shelf: 12 mm compact laminate
• Safety switch: Powder-coated sheet steel
• Installation cover: 4 mm compact laminate

Warranty:

• 5-year warranty against manufacturing defects when registered with Granberg
• Standard 3-year manufacturer warranty applies without registration
