Granberg Motorised Washbasin Lift BASICLINE 415-15-20 - with 190mm Lever Tap (TMV3 Approved) - White
Complete height adjustable pedestal washbasin lift. Electric operation with 250 mm continuously variable height. Wired hand controller. 425-015 shallow bowl solid surface washbasin with integrated grabrails, no overflow, slotted waste and no plug. Includes safety system. The 190 mm lever tap is designed for easy operation by hand or elbow, making it practical and hygienic in everyday use. With proven TMV3 thermostatic protection for safe temperature control, it is ideal for accessible facilities, sheltered accommodation, and domestic bathrooms. WRAS approved.

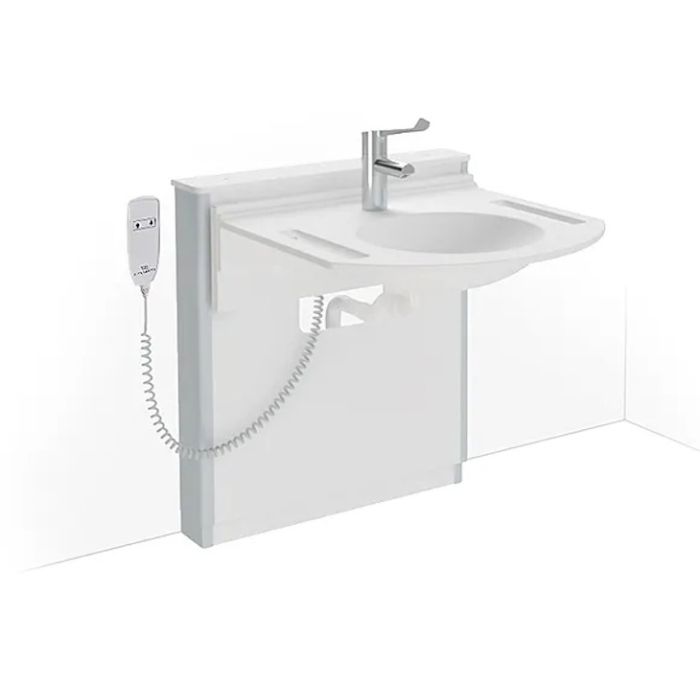

Granberg BASICLINE 415 Electric Washbasin Lift with Accessible Washbasin
The Granberg BASICLINE 415 is a floor-mounted electric washbasin lift with a clean white pedestal finish. Supplied as a complete height-adjustable system, it includes an accessible washbasin, a WRAS-approved TMV3 sequential mixer tap with a 190 mm lever, a corded hand control and a safety switch.
The washbasin can be raised or lowered through a continuously variable 250 mm range using the hand control. Plumbing connections are concealed within the lifting unit for a neat, discreet appearance.
This version includes the 425-015 solid surface washbasin, featuring a shallow bowl and integrated gripping slots on either side that can also hold towels.
Key Benefits
- Complete electric height-adjustable washbasin system.
- Continuously variable height adjustment through a 250 mm range.
- Low-profile design allows installation beneath a mirror or cabinet.
- Electric operation using a corded hand control.
- WRAS-approved TMV3 sequential mixer tap with a 190 mm lever.
- Plumbing connections concealed within the lifting unit.
- Wheelchair-accessible washbasin with a shallow bowl.
- Integrated gripping slots on either side of the washbasin, also suitable for towels.
- Washbasin supplied without an overflow or plug, with a slotted waste.
- Legroom depth beneath the washbasin: 586 mm.
- Safety switch stops downward movement if the washbasin encounters an obstruction or the user's legs.
What's Included
- 415: BASICLINE washbasin lift.
- 425-120: WRAS-approved TMV3 sequential mixer tap with a 190 mm lever.
- 425-410: Corded hand control.
- 425-403: Safety switch for the BASICLINE 415 washbasin lift.
- 425-015: Solid surface washbasin with integrated grabrails and slotted waste, without an overflow or plug.
- 425-331: Flexible drain hose with water trap.
Technical Details
- Total width: 650 mm.
- Adjustable total height: 712–962 mm.
- Total depth from the front of the washbasin to the wall: 695 mm.
- Washbasin width: 600 mm.
- Washbasin depth: 550 mm.
- Distance from the front edge to the tap lever: 265 mm.
- Adjustable height from the top of the washbasin to the floor: 654–904 mm.
- Washbasin fixing centres: 280 mm.
- Operating speed: 18 mm per second.
- Lifting force: 100 kg.
- Maximum washbasin load: 50 kg.
- Wired hand control: IP65-rated, with a support hook.
- Electrical connection: 230 V UK mains plug, maximum 1.5 A.
- Lift protection rating: IPX4.
Materials
- Back panel: 4 mm compact laminate with anodised aluminium sides.
- Top shelf: 12 mm compact laminate.
- Safety switch: powder-coated sheet steel.
- Installation cover: 4 mm compact laminate.
Warranty
This product includes a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, the standard 3-year warranty applies.
| Manufacturer | Granberg |
|---|---|
| Bracket Range | Granberg BASICLINE 415 |
| Bracket Operation | Electric |
| Bracket Adjustment | Wired Hand Control |
| Height Adjustment (mm) | 250 |
| For Washbasin Range | BASICLINE 425-015 |
| Bracket Mounting | Floor & Wall |
| Safety Stop | Yes |
| Stock status | Available to order |
|---|---|
| Delivery time | 1-2 weeks |
| Returns Status | Returnable in 14 days |
