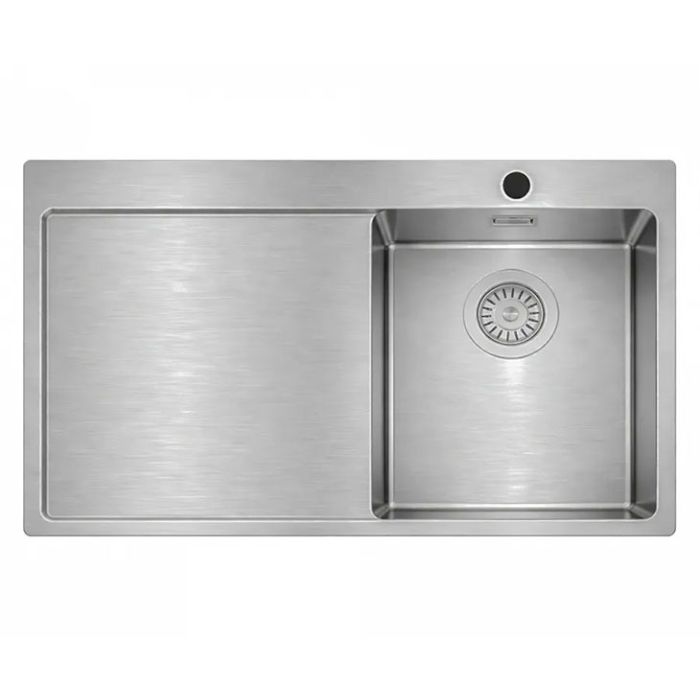

Granberg Stainless Steel Kitchen Sink EST-3401BR – 780 × 500 × 120 mm - Right w/ Left Drainer

The Granberg Ergosteel Trendline EST-3401BR is an excellent large right-handed shallow bowl kitchen sink, made from 1.2 mm thick stainless steel for a sleek and modern look, making it ideal for both domestic and commercial installations.

With one shallow depth bowl of just 120mm and a drainer, this sink is ideal for insetting into a height adjustable worktop lift for kitchen adaptations.

PVD (Physical Vapor Deposition) creates a thin coating on the stainless-steel surface. PVD coated sinks are ideal for any kitchen environment because of their durable design and ease of maintenance. The PVD coating process is eco-friendly due to the lack of harmful chemicals in the production process.

Key Benefits

• Provides added legroom under the sink, the specially designed waste/water trap is positioned towards the rear of the sink

• Insulated to protect the users legs and knees

• Profiled base improves water flow

• Rear mounted overflow

• Shallow dishwashing bowl with a depth of 120 mm

• Waste/water trap and overflow positioned to the rear of the sink bowl

• Shallow waste/water trap with 90 mm dia. waste outlet

• Ideal for installing into a height adjustable worktop system

• 1.2 mm thick stainless steel

• Universal flange allows it to be inset or under-mounted

• Includes manual basket waste, overflow and a shallow water trap

• Waste kit includes inlet options for washing machine and dishwasher waste feeds (See image gallery)

• Includes 200-520 mm flexible waste kit (Product Code: 61801)

• Also available in PVD colours: Black, Gold, Copper, Bronze and Champagne

Technical details:

• For cabinet size (mm): 400

• Material: Stainless Steel

• Plate thickness (mm): 1.2

• Tap hole diameter (mm): 38

• Internal corner radius (mm): R20

• External corner radius (mm): R10

• Inner dimensions (mm): 340 x 400

• Outer dimensions (mm): 780 x 500

• Back to waste centre (mm): 145

• Bowl depth (mm): 120

• Overall Depth to waste outlet (mm): 125

• Waste diameter (mm): 114

• Installation type: Inset, undermount and flush-mount

• Includes basket valve and water trap with flexible drain hose

Installation Methods:

Inset

A hole is cut in the worktop and then the sink is installed from above and sits neatly on top of the worktop, with a slim visible rim around the edge. Inset sinks are suitable for all types of worktop materials except natural stone and are a popular, versatile choice.

Flush-mount

The sink is installed so that its rim sits perfectly level with the surrounding worktop, creating a smooth, seamless finish. Flush-mount installation offers a premium appearance and makes it easier to wipe water and debris directly into the sink.

Under-mounted

The sink is mounted beneath the worktop, leaving the worktop edge fully exposed for a clean, contemporary look. Undermount installation provides uninterrupted worktop space and makes cleaning simple, as crumbs and spills can be brushed straight into the sink.

Heat Insulation Pad

• The heat insulation pad prevents leg/knee burns

• Material: Cellular rubber

• Thickness (mm): 4

• Temperature resistant acrylic glue

Warranty

• 5 years warranty

• The product is covered by a 5-year warranty against manufacturing defects
