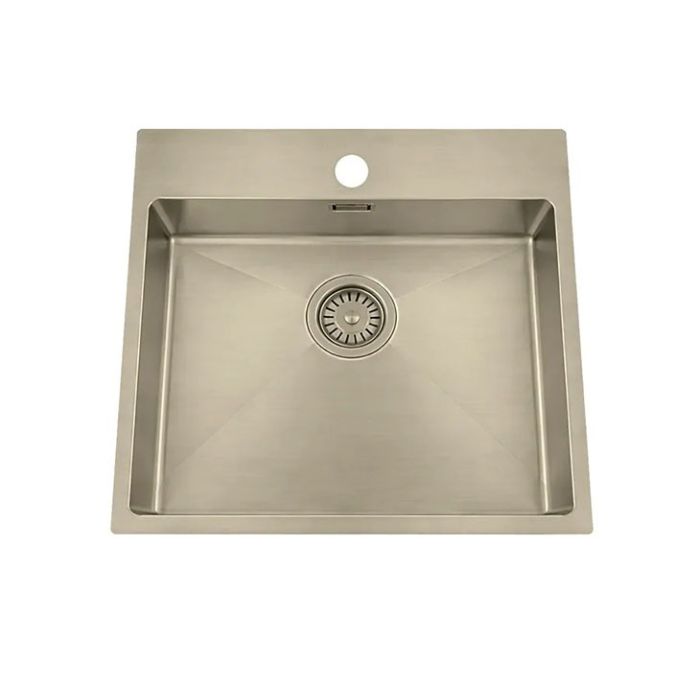

Granberg Stainless Steel Kitchen Sink EST-500B – 540 × 500 × 120 mm - PVD Champagne

The Granberg Ergosteel Trendline 618EST-500B with a brushed stainless steel Champagne PVD coated finish, an excellent shallow bowl kitchen sink manufactured from high quality materials making it ideal for both domestic and commercial installations.

With one bowl and a shallow depth of just 120mm, this sink is ideal for insetting into a height adjustable worktop lift for a compact kitchen adaptation where space is limited.

PVD (Physical Vapor Deposition) creates a thin coating on the stainless-steel surface. PVD coated sinks are ideal for any kitchen environment because of their durable design and ease of maintenance. The PVD coating process is eco-friendly due to the lack of harmful chemicals in the production process.

Key benefits:

Provides added legroom under the sink, the specially designed waste/water trap is positioned towards the rear of the sink
Insulated to protect the users legs and knees
Profiled base improves water flow
Rear mounted overflow
Shallow dishwashing bowl with a depth of 120mm
Waste/water trap and overflow positioned to the rear of the sink bowl
Shallow waste/water trap with 85mm dia. waste outlet
Ideal for installing into a height adjustable worktop system
1.2mm thick Champagne PVD coated stainless steel construction
Universal flange allows it to be inset or under-mounted
Includes manual basket waste, overflow and a shallow water trap
Waste kit includes inlet options for washing machine and dishwasher waste feeds (See image gallery)
Includes 200-520mm flexible waste kit (Product Code: 61802)
Also available in PVD coated colour versions Gold, Copper, Bronze and Champagne

Technical details:

For cabinet size (mm): 600
Plate thickness: 1.2mm, stainless steel
Champagne PVD coated finish
Inside corner radius (mm): 20
Tap hole diameter: 38
Inner dimensions (mm): 500 x 400
Outer dimensions (mm): 540 x 500
Bowl depth (mm): 120
Overall Depth to waste outlet (mm): 125
Mounting: Inset, under-mounted, under gluing and planar gluing
Includes basket valve and water trap with flexible drain hose

Mounting - Inset

A hole is cut in the worktop and the inset sink is put in position from above. The inset sink is then fastened underneath with fittings while the outer edge lies on top of the worktop. This method is suitable for all types of worktop materials except natural stone. The hole should be cut-out on site by a fitter.

Mounting - Under-mounted

A hole with an edge is milled out in the worktop from below. The inset sink is then glued on from underneath. The thickness of the visible material above the sink varies depends on the thickness of material. Only suitable for installation in solid surface materials.

Mounting - Planar gluing

Attaches the sink to a worktop to the flat surface of the sink using adhesives to ensure a secure ant watertight seal. Creates a seamless look with no visible edges. Only suitable for installation in solid surface materials.

Heat Insulation Pad

The heat insulation pad prevents leg/knee burns
Materials: 4mm thick Cellular rubber
Temperature resistant acrylic glue

Warranty:

3 years warranty
The product is covered by a 3-year warranty against manufacturing defects
