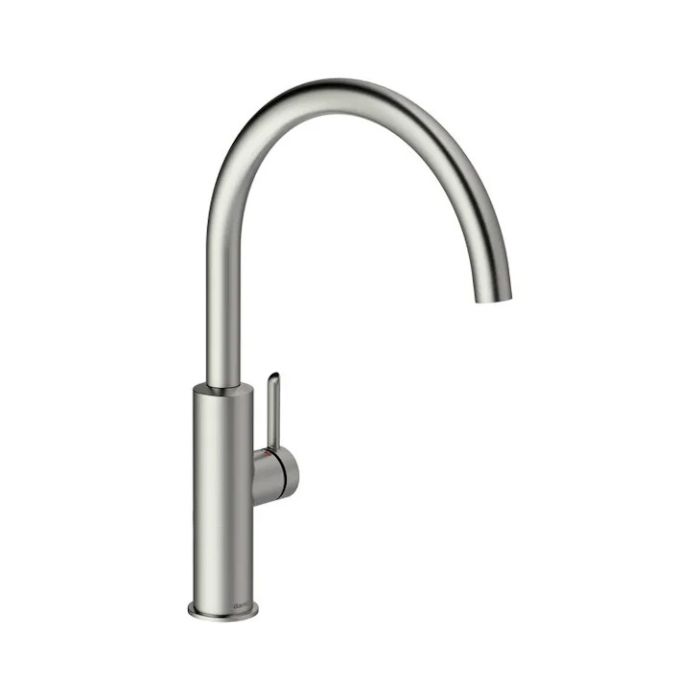

Granberg Trendline KM50 Single Lever Kitchen Mixer - Stainless Steel
Granberg Trendline KM50 single lever kitchen mixer in premium stainless steel, featuring a tall curved spout, Cold Start technology and a durable ceramic cartridge. The 237 mm spout outlet height and 225 mm reach provide generous clearance for everyday kitchen tasks. Features a maximum flow rate of 6 l/min at 300 kPa, 110° swivel limitation and removable coin-slot aerator. Includes a 46 mm cover plate. Supplied without dishwasher shut-off.
The Granberg Trendline KM50 is a contemporary single lever kitchen mixer combining Scandinavian design with practical everyday performance. Manufactured from premium stainless steel, the tall curved spout provides generous clearance above the sink, while the single side lever offers convenient control of water flow and temperature.
Cold Start technology helps reduce unnecessary hot water consumption by supplying cold water when the control lever is opened from its central position. This helps reduce energy consumption during everyday kitchen tasks. A maximum flow rate of 6 l/min at 300 kPa also helps conserve water.
The KM50 incorporates a durable ceramic cartridge for smooth and reliable operation, together with a 110° swivel limitation for controlled movement of the spout. A coin-slot aerator can be easily removed for cleaning and maintenance, while the included 46 mm cover plate provides a neat finish when concealing larger tap holes.
With an overall height of 357 mm, a spout outlet height of 237 mm and a reach of 225 mm, the KM50 provides generous working space for filling containers, washing dishes and everyday food preparation.
The stainless steel finish coordinates with Granberg Trendline stainless steel sinks and contemporary kitchen appliances.
This model is supplied without a dishwasher shut-off.
Key benefits:
- Contemporary single lever kitchen mixer with a tall curved spout
- Single side lever for convenient control of water flow and temperature
- Cold Start technology helps reduce unnecessary hot water consumption
- Maximum flow rate of 6 l/min at 300 kPa helps conserve water
- Durable ceramic cartridge for smooth and reliable operation
- 110° swivel limitation for controlled spout movement
- Coin-slot aerator for easy removal, cleaning and maintenance
- 46 mm cover plate included to conceal larger tap holes
- 237 mm spout outlet height provides generous clearance above the sink
- 225 mm spout reach for everyday kitchen tasks
- Single-hole worktop installation
- Premium stainless steel construction
- Contemporary stainless steel finish
- Coordinates with Granberg Trendline stainless steel kitchen sinks
- Supplied without dishwasher shut-off
Design and everyday usability:
- Tall curved spout provides practical clearance for filling containers and washing larger items
- Single lever operation allows water flow and temperature to be adjusted using one control
- Cold Start technology supplies cold water when the lever is opened from its central position
- 110° swivel limitation helps control the movement of the spout around the sink
- Removable coin-slot aerator simplifies routine cleaning and maintenance
- Suitable for worktops up to 50 mm thick
- Stainless steel construction complements modern kitchen layouts
Technical details:
- Manufacturer: Granberg
- Range: Trendline
- Model: KM50
- Product code: 60201
- Product type: Single lever kitchen mixer
- Material: Stainless steel
- Finish: Stainless Steel
- Installation: Single-hole worktop mounting
- Overall tap height: 357 mm
- Spout outlet height: 237 mm
- Spout reach: 225 mm
- Control lever projection: 74 mm
- Mixer body height: 78 mm
- Spout swivel limitation: 110°
- Maximum flow rate: 6 l/min at 300 kPa
- Maximum worktop thickness: 50 mm
- Connection length below worktop: 397 mm
- Water connection: G3/8
- Cartridge: Ceramic
- Cold Start technology: Yes
- Aerator: Removable coin-slot type
- Cover plate: 46 mm, included
- Dishwasher shut-off: No
Installation requirements:
- Designed for single-hole installation in a kitchen worktop or suitable sink mounting surface
- Maximum permitted worktop thickness is 50 mm
- Check the dimensional drawing before drilling or preparing the tap hole
- Allow sufficient clearance for the 74 mm control lever projection and 110° spout movement
- Ensure adequate space beneath the worktop for the water connections
- For height adjustable worktops, ensure the plumbing connections accommodate the full lifting movement
- Installation should be carried out in accordance with the manufacturer's instructions
Please note:
- This version of the Granberg Trendline KM50 is supplied without a dishwasher shut-off
- A 46 mm cover plate is included for concealing larger tap holes
- Refer to the product dimensional drawing when planning the tap position and installation
Manufacturer warranty:
- 2-year manufacturer warranty
| Manufacturer | Granberg |
|---|---|
| Tap Style | Monobloc Mixer - Single Lever |
| Mounting | Deck / Sink |
| Water Pressure | Normal Mains |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 2pm |
| Returns Status | Returnable in 14 days |
