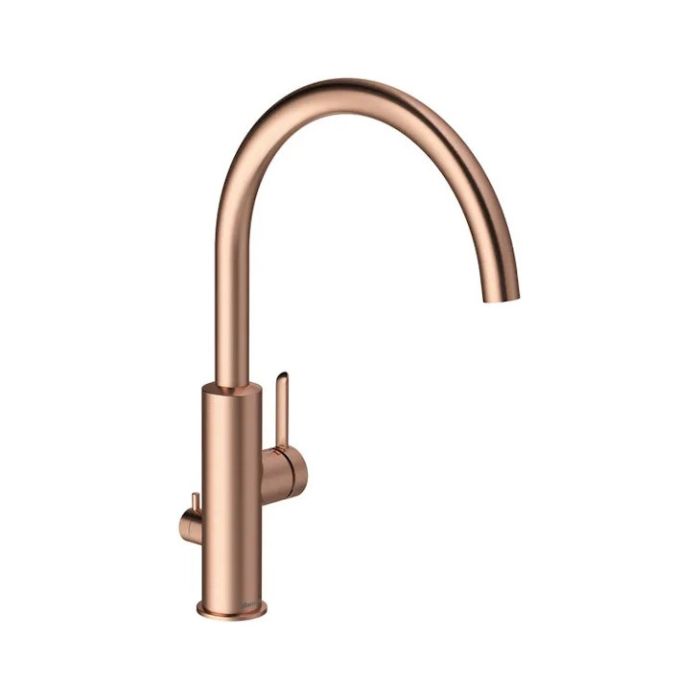

Granberg Trendline KM51 Single Lever Kitchen Mixer with Dishwasher Shut-off – PVD Copper (Brushed Copper)

The Granberg Trendline KM51 is a contemporary single lever kitchen mixer combining Scandinavian design with practical everyday performance. Manufactured from premium stainless steel with an elegant PVD Copper (Brushed Copper) finish, the tall curved spout provides generous clearance above the sink, while the single side lever offers convenient control of water flow and temperature.

Unlike the Granberg KM50, the KM51 incorporates an integrated dishwasher shut-off valve, allowing the water supply to a connected dishwasher to be controlled directly from the mixer. This provides a convenient way to isolate the dishwasher water supply without accessing a separate valve beneath the sink.

Cold Start technology helps reduce unnecessary hot water consumption by supplying cold water when the control lever is opened from its central position. This helps reduce energy consumption during everyday kitchen tasks. A maximum flow rate of 6 l/min at 300 kPa also helps conserve water.

The KM51 incorporates a durable ceramic cartridge for smooth and reliable operation, together with a 110° swivel limitation for controlled movement of the spout. A coin-slot aerator can be easily removed for cleaning and maintenance, while the included 46 mm cover plate provides a neat finish when concealing larger tap holes.

With an overall height of 360 mm, a spout outlet height of 240 mm and a reach of 225 mm, the KM51 provides generous working space for filling containers, washing dishes and everyday food preparation.

The PVD Copper (Brushed Copper) finish complements copper-finish kitchen sinks, warm-toned worktops and contemporary kitchen fittings, providing a coordinated appearance in modern kitchen designs.

Key benefits:

• Contemporary single lever kitchen mixer with a tall curved spout
• Integrated dishwasher shut-off valve for convenient control of the dishwasher water supply
• Allows the dishwasher water supply to be isolated directly from the mixer
• Single side lever for convenient control of water flow and temperature
• Cold Start technology helps reduce unnecessary hot water consumption
• Maximum flow rate of 6 l/min at 300 kPa helps conserve water
• Durable ceramic cartridge for smooth and reliable operation
• 110° swivel limitation for controlled spout movement
• Coin-slot aerator for easy removal, cleaning and maintenance
• 46 mm cover plate included to conceal larger tap holes
• 240 mm spout outlet height provides generous clearance above the sink
• 225 mm spout reach for everyday kitchen tasks
• Single-hole worktop installation
• Premium stainless steel construction
• Elegant PVD Copper (Brushed Copper) finish
• Coordinates with copper-finish kitchen sinks and fittings

Design and everyday usability:

• Tall curved spout provides practical clearance for filling containers and washing larger items
• Single lever operation allows water flow and temperature to be adjusted using one control
• Integrated dishwasher shut-off provides convenient control of the connected dishwasher water supply
• Cold Start technology supplies cold water when the lever is opened from its central position
• 110° swivel limitation helps control the movement of the spout around the sink
• Removable coin-slot aerator simplifies routine cleaning and maintenance
• Suitable for worktops up to 50 mm thick
• PVD Copper (Brushed Copper) finish complements contemporary kitchen designs

Technical details:

• Manufacturer: Granberg
• Range: Trendline
• Model: KM51
• Product code: 60202-04D
• Product type: Single lever kitchen mixer with dishwasher shut-off
• Material: Stainless steel
• Finish: PVD Copper (Brushed Copper)
• Installation: Single-hole worktop mounting
• Overall tap height: 360 mm
• Spout outlet height: 240 mm
• Spout reach: 225 mm
• Control lever projection: 74 mm
• Mixer body height: 80 mm
• Spout swivel limitation: 110°
• Maximum flow rate: 6 l/min at 300 kPa
• Maximum worktop thickness: 50 mm
• Water connection length below worktop: 415 mm
• Dishwasher connection length below worktop: 425 mm
• Water connection: G3/8
• Dishwasher connection: G1/2
• Cartridge: Ceramic
• Cold Start technology: Yes
• Aerator: Removable coin-slot type
• Cover plate: 46 mm, included
• Dishwasher shut-off: Yes, integrated

Installation requirements:

• Designed for single-hole installation in a kitchen worktop or suitable sink mounting surface
• Maximum permitted worktop thickness is 50 mm
• Check the dimensional drawing before drilling or preparing the tap hole
• Allow sufficient clearance for the 74 mm control lever projection and 110° spout movement
• Ensure adequate space beneath the worktop for the water connections and dishwasher connection
• Dishwasher connection: G1/2
• For height adjustable worktops, ensure the plumbing connections accommodate the full lifting movement
• Installation should be carried out in accordance with the manufacturer's instructions

Please note:

• This version of the Granberg Trendline KM51 includes an integrated dishwasher shut-off valve
• A 46 mm cover plate is included for concealing larger tap holes
• Refer to the product dimensional drawing when planning the tap position, water connections and dishwasher installation

Manufacturer warranty:

• 2-year manufacturer warranty
