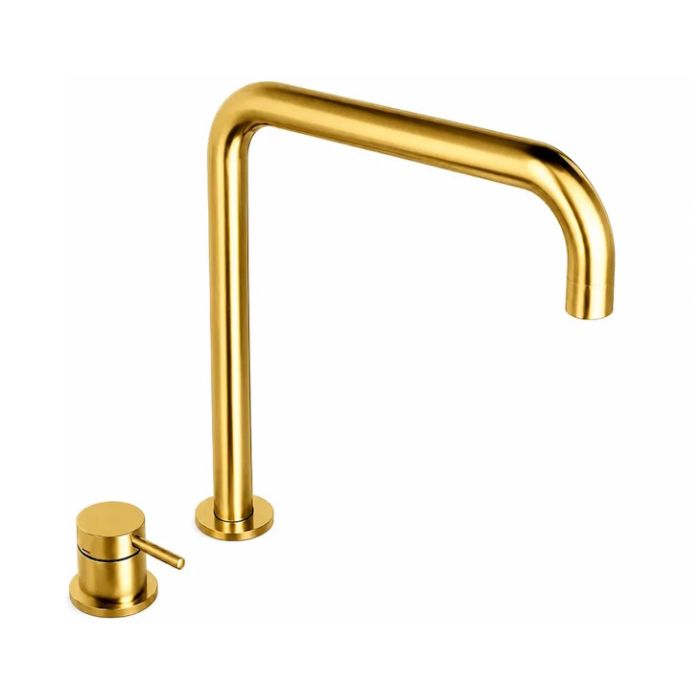

Granberg Trendline KM60 Kitchen Mixer with Separate Control Handle – PVD Gold (Sand)

The Granberg Trendline KM60 is a contemporary kitchen mixer featuring a separate spout and control handle, designed to provide flexible positioning and improved accessibility in modern kitchens. This version features an elegant PVD Gold (Sand) finish.

Unlike a conventional kitchen mixer, the KM60 has an independently mounted control handle that can be positioned to the left, right or in another convenient location away from the spout. This allows the tap controls to be installed where they are easiest to reach and operate, particularly for wheelchair users and people with reduced mobility.

When installed with a Granberg height adjustable kitchen worktop system, the separate control handle can be integrated into the front edge of the worktop, providing convenient access from a seated position. The recommended distance between the spout and control handle is between 100 and 600 mm, allowing flexibility when planning the sink and worktop layout.

The tall, squared spout provides generous clearance above the sink, with a reach of 220 mm. Manufactured from premium stainless steel with a PVD Gold (Sand) finish, the KM60 complements Granberg Trendline PVD Gold kitchen sinks and contemporary kitchen fittings.

Cold Start technology helps reduce unnecessary hot water consumption, while the adjustable spout rotation provides additional flexibility when using and cleaning the sink. The spout can also be locked in a fixed 0° position when required. An adjustable Neoperl® aerator provides a smooth and comfortable water flow.

This model is supplied without a dishwasher shut-off.

Key benefits:

• Contemporary kitchen mixer tap with separate spout and control handle
• Designed for accessible and height adjustable kitchen worktops
• Independent control handle allows flexible positioning away from the spout
• Control handle can be positioned to the left, right or in another convenient location
• Can be integrated into the front edge of a Granberg height adjustable worktop for improved accessibility
• Recommended distance between spout and control handle: 100-600 mm
• Cold Start technology helps reduce unnecessary hot water consumption
• Adjustable spout rotation provides flexibility when using and cleaning the sink
• Spout can be locked in a fixed 0° position when required
• Adjustable Neoperl® aerator for a smooth and comfortable water flow
• Tall, squared spout provides generous clearance above the sink
• 220 mm spout reach
• Two-hole worktop installation
• Premium stainless steel construction
• Elegant PVD Gold (Sand) finish
• Coordinates with Granberg Trendline PVD Gold kitchen sinks
• Supplied without dishwasher shut-off

Accessibility and installation flexibility:

• Separate control handle can be installed independently of the tap spout
• Allows the control position to be selected according to the user's reach and mobility requirements
• Particularly suitable for wheelchair accessible kitchens and seated worktop arrangements
• Compatible with suitable Granberg height adjustable kitchen worktop installations
• Control handle can be positioned along the front edge of the worktop where the installation allows
• Recommended separation between spout and control handle is 100-600 mm
• Tap-hole positions should be planned before the worktop is manufactured or drilled

Technical details:

• Manufacturer: Granberg
• Range: Trendline
• Model: KM60
• Product Code: 60208-03S
• Product type: Kitchen mixer with separate spout and control handle
• Material: Stainless steel
• Finish: PVD Gold (Sand)
• Installation: Two-hole worktop mounting
• Overall tap height (mm): 288 ± 10
• Spout outlet height (mm): 215 ± 10
• Spout reach (mm): 220 ± 10
• Spout diameter (mm): 22
• Spout base diameter (mm): 45
• Control handle height above worktop (mm): 45 ± 5
• Control lever projection (mm): 50 ± 5
• Minimum recommended distance between spout and control handle (mm): 100
• Maximum recommended distance between spout and control handle (mm): 600
• Maximum worktop thickness (mm): 40
• Water connection: G3/8
• Connection hose length (mm): 800
• Cold Start technology: Yes
• Adjustable spout rotation: Yes
• Fixed spout position: 0° locking option
• Aerator: Adjustable Neoperl®
• Dishwasher shut-off: No

Installation requirements:

• The spout and separate control handle require individual mounting holes in the worktop
• Maintain a recommended distance of 100-600 mm between the spout and control handle
• Maximum permitted worktop thickness is 40 mm
• Check the dimensional drawing before drilling the worktop
• Ensure the selected control position is accessible to the intended user
• Allow sufficient clearance for the control handle, connection hoses and any moving worktop components
• For height adjustable worktops, ensure plumbing connections accommodate the full lifting movement
• Installation should be carried out in accordance with the manufacturer's instructions

Please note:

• This version of the Granberg Trendline KM60 is supplied without a dishwasher shut-off
• Refer to the product dimensional drawing when planning the tap-hole positions
• The separate spout and control handle must be installed within the recommended 100-600 mm spacing

Manufacturer warranty:

• 2-year manufacturer warranty
