Granberg Wall Cabinet Lift InDIAGO 510KB - 70 cm Height, 31 cm Depth

Granberg InDIAGO 510KB Wall Cabinet Lift

The Granberg InDIAGO 510KB is an electric wall cabinet lift designed to make high-level kitchen storage easier to reach without compromising the appearance of your kitchen. Installed neatly inside the cabinet, the lifting mechanism lowers the shelves and their contents diagonally downwards and forwards, bringing everyday items comfortably within reach.

Unlike traditional wall cabinet lifting systems, the cabinet itself remains fixed to the wall while only the internal shelf assembly moves. This creates a clean, unobtrusive solution that improves accessibility for wheelchair users, seated users and anyone with reduced reach, while maintaining the original appearance of the kitchen.

The InDIAGO also features automatic door operation. As the lift begins to lower, the cabinet doors open automatically. When returning to the upper position, the doors close smoothly under motor control. The doors can also be opened manually whenever the lift is in its raised position, allowing the cabinet to function just like a conventional wall cabinet.

This version is designed for 700 mm high wall cabinets with a minimum internal cabinet depth of 310 mm and cabinet widths from 500–1000 mm.

Why Choose the InDIAGO 510KB?

• Electric height-adjustable wall cabinet lift.
• Lowers shelves diagonally downwards and forwards for improved accessibility.
• Designed for 700 mm high wall cabinets.
• Suitable for cabinet widths from 500–1000 mm.
• Designed for cabinets with a minimum internal depth of 310 mm.
• Automatic motor-driven opening and closing of cabinet doors.
• Doors can still be opened manually when the lift is in the raised position.
• Compact mechanism maximises available cabinet storage space.
• Cabinet base remains intact, preserving existing under-cabinet lighting.
• Suitable for both new kitchens and retrofit installations.
• Quiet, smooth operation with integrated safety features.

How It Works

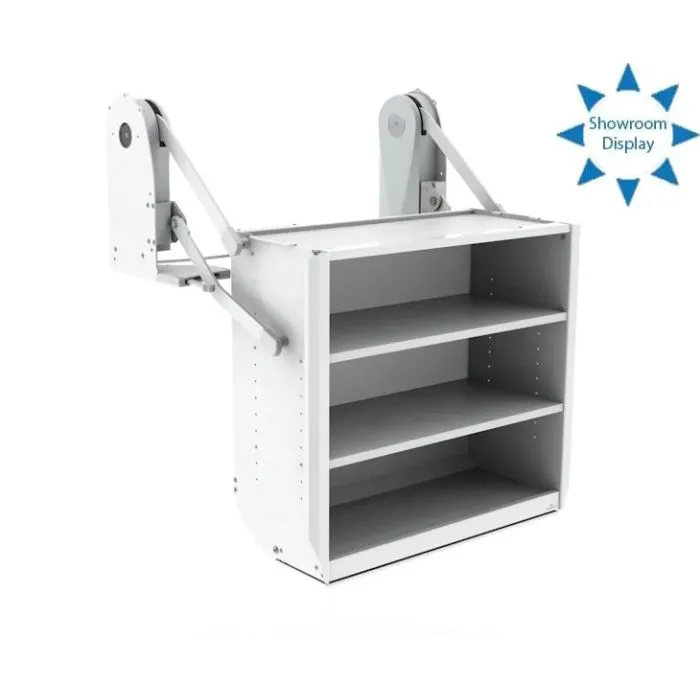

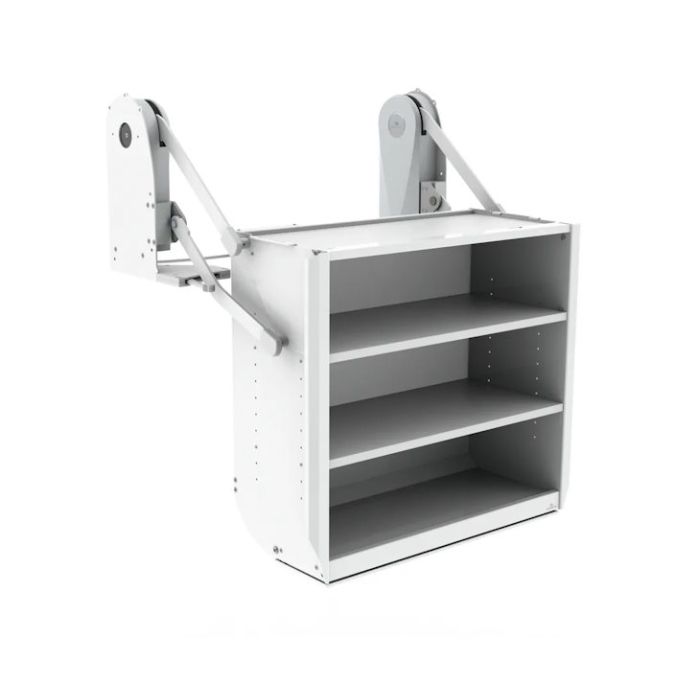

The InDIAGO 510KB is mounted entirely inside the wall cabinet, without removing the cabinet base. When activated, the internal shelf assembly moves in a smooth diagonal motion downwards and forwards, bringing stored items to a comfortable working height.

The movement is fully electric and steplessly adjustable, allowing the shelves to stop wherever required. As the shelves begin to lower, the cabinet doors automatically open. When the lift returns to its upper position, the doors close gently under motor control.

Because only the shelf assembly moves, the cabinet remains securely fixed to the wall while providing significantly improved access to stored items.

Choice of Controls

The InDIAGO 510KB can be supplied with a range of wired, wireless and remote-control options, allowing the operating method to be tailored to the user and kitchen layout.

• Recessed – Control Button, Wired, Black (Product Code: 61310-10)
• Recessed – Corded Mini Control Buttons with 5 metre Control Cable (Product Code: 61315)
• Recessed – Control Button with Radio Control, Black (Product Code: 61371-10)
• Recessed – Wireless Mini Control Buttons (Product Code: 61376)
• Black Single Channel Remote Control (Product Code: 61385-10)
• White Single Channel Remote Control (Product Code: 61385-01)
• Two to five-channel black remote controls are also available when installing multiple Granberg lifting systems. Please contact us to discuss your requirements.

Safety as Standard

The InDIAGO 510KB incorporates several integrated safety features to protect both the user and the kitchen during operation.

• Integrated safety switch beneath the moving shelf assembly.
• The lift immediately stops if an obstruction is detected.
• The lift will not operate if the cabinet doors cannot open fully.
• An audible warning sounds if a fault is detected.
• Smooth motor control provides gentle closing of the cabinet doors.

Preserves Existing Lighting

The InDIAGO 510KB is installed entirely inside the wall cabinet, allowing the cabinet base to remain untouched during installation.

Because the underside of the cabinet is retained, existing strip lighting, pelmets and under-cabinet lighting can normally remain in place. The compact lifting mechanism also occupies very little internal cabinet space, helping to maximise storage capacity.

Cabinet Compatibility

The InDIAGO 510KB is designed for installation inside compatible 700 mm high wall cabinets.

• Available cabinet widths: 500, 600, 700, 800, 900 and 1000 mm
• Cabinet height: 700 mm
• Minimum internal cabinet height: 660 mm
• Minimum internal cabinet depth: 310 mm
• Suitable cabinet side thickness: 16–20 mm
• Shelf depth: approximately 280 mm

Technical Specification

• Product Code: 510KB
• Mechanism height: 660 mm
• Mechanism depth: 310 mm
• Vertical travel: 540 mm
• Forward movement: 373 mm
• Operating speed: 23 mm/sec
• Maximum load capacity: 40 kg
• Electrical connection: 230V mains plug (2.0A)
• IP Rating: IP30
• Plug and Play electronics.
• No additional receiver socket required for wireless controls.

Materials & Finish

• White powder-coated aluminium lifting mechanism.
• White powder-coated sheet metal components.
• White melamine shelves (16 mm).
• HDF cabinet back and top panels.

Warranty

• 5 year manufacturer warranty.
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies.

Installation Notes

• Suitable for installation in both new and existing wall cabinets.
• The cabinet base does not need to be removed.
• Requires a minimum internal cabinet depth of 310 mm.
• Compatible with cabinet side thicknesses of 16–20 mm.
• Requires two cabinet doors for the automatic opening function.
• Not suitable for in-frame cabinet construction.
• Compatible with soft-close hinges with integrated damping.
• The electrical supply should be planned before installation.

Available Cabinet Widths

• 500 mm
• 600 mm
• 700 mm
• 800 mm
• 900 mm
• 1000 mm

Manufacturer Product Codes

510KB-050, 510KB-060, 510KB-070, 510KB-080, 510KB-090 and 510KB-100.
