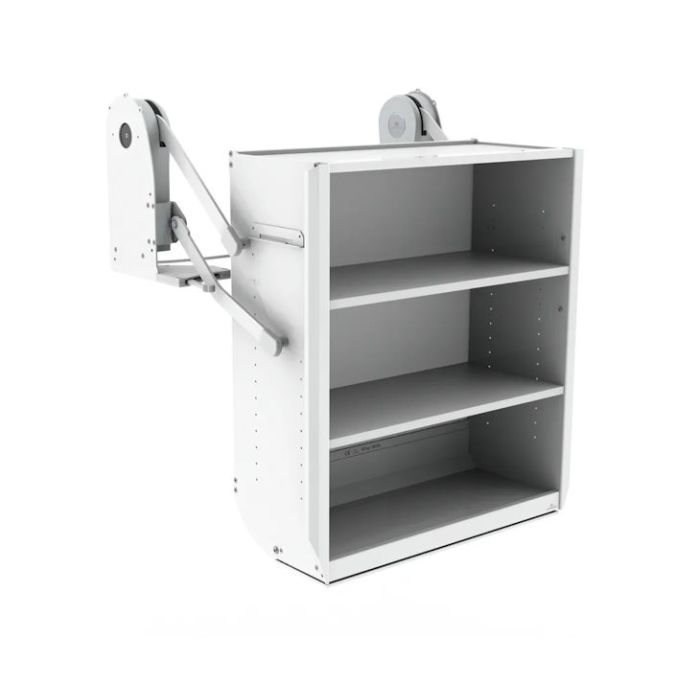

Granberg Wall Cabinet Lift InDIAGO 510SA - 81 cm Height, 26 cm Depth
The Granberg InDIAGO 510SA is an electric wall cabinet lift that lowers shelves and their contents diagonally downwards and forwards for easier access. Designed for 850 mm high wall cabinets with a minimum internal depth of 260 mm, it features automatic door opening, integrated safety protection and a compact mechanism that preserves cabinet space and existing under-cabinet lighting.
# Short Description
The Granberg InDIAGO 510SA is an electric wall cabinet lift that lowers shelves and their contents diagonally downwards and forwards for easier access. Designed for 850 mm high wall cabinets with a minimum internal depth of 260 mm, it features automatic door opening, integrated safety protection and a compact mechanism that preserves cabinet space and existing under-cabinet lighting.
# Long Description (HTML)
```html
Granberg InDIAGO 510SA Wall Cabinet Lift
The Granberg InDIAGO 510SA is an electric wall cabinet lift designed to make high-level kitchen storage easier to reach. Installed discreetly inside the cabinet, it lowers the internal shelves and their contents in a smooth curved movement downwards and forwards, bringing stored items closer to the user and towards the front of the worktop.
The wall cabinet itself remains securely fixed in position while only the internal shelf assembly moves. This provides a clean and unobtrusive accessibility solution for wheelchair users, seated users and anyone with reduced reach, without making the cabinet project further from the wall.
The InDIAGO also features automatic door operation. When the lift begins to lower, the cabinet doors open automatically. As the shelf assembly returns to its raised position, the movement slows and the doors close gently under motor control. The doors can still be opened normally while the lift is fully raised, allowing the cabinet to be used like a conventional wall unit.
This version has an 810 mm high lifting unit and is designed for 850 mm high wall cabinets. It requires a minimum internal cabinet height of 810 mm, a minimum internal cabinet depth of 260 mm and is available for cabinet widths from 500–1000 mm.
Why Choose the InDIAGO 510SA?
- Electric wall cabinet lifting system for improved access to high-level storage.
- Lowers shelves diagonally downwards and forwards towards the front of the worktop.
- Designed for 850 mm high wall cabinets.
- Suitable for cabinets with a minimum internal depth of 260 mm.
- Available for cabinet widths from 500–1000 mm.
- Movement can be stopped at any convenient height.
- Automatic motor-driven opening and closing of the cabinet doors.
- Doors can still be opened normally when the lift is fully raised.
- The cabinet does not protrude further from the wall.
- Compact mechanism preserves valuable cabinet storage space.
- Cabinet base remains intact, preserving existing lighting and light pelmets.
- Suitable for installation in new or existing kitchens.
How It Works
The InDIAGO 510SA is mounted inside the wall cabinet without requiring the cabinet base to be removed. When operated, the complete shelf assembly travels in a controlled curved movement downwards and forwards, making stored items easier to see, reach and handle.
The movement is fully motorised and steplessly adjustable, allowing the user to stop the shelves at any suitable position. As the lift begins its downward movement, the doors open automatically. When the shelves are raised, the system slows near the upper position so the doors close gently.
When lowered, the shelf assembly travels forwards towards the front of the worktop. Its movement is designed to provide clearance around a mixer tap and other suitable objects positioned beneath the cabinet.
Choice of Controls
The InDIAGO 510SA can be supplied with wired, wireless or handheld controls, allowing the operating method and control position to be selected around the user and kitchen layout.
- Recessed – Control Button, Wired, Black (Product Code: 61310-10)
- Recessed – Corded Mini Control Buttons with 5 metre Control Cable (Product Code: 61315)
- Recessed – Control Button with Radio Control, Black (Product Code: 61371-10)
- Recessed – Wireless Mini Control Buttons (Product Code: 61376)
- Black Single Channel Remote Control (Product Code: 61385-10)
- White Single Channel Remote Control (Product Code: 61385-01)
- Two to five-channel black remote controls are also available when installing multiple Granberg lifting systems. Please contact us to discuss your requirements.
Safety as Standard
The InDIAGO 510SA incorporates integrated safety features designed to protect the user, the lifting system and surrounding kitchen fittings during operation.
- Safety plate fitted beneath the moving shelf assembly.
- The lift stops if the safety plate encounters an obstruction.
- The shelf assembly is prevented from moving forwards if the cabinet doors cannot open fully.
- The movement stops if the doors attempt to close while the lift is operating.
- An audible warning indicates when a safety function or operational fault has been activated.
- Controlled motor operation provides smooth movement and gentle door closing.
Preserves Existing Lighting
The InDIAGO 510SA is installed inside the wall cabinet without requiring the cabinet base to be removed. The lift does not make the cabinet protrude further from the wall and its compact mechanism occupies minimal space inside the cabinet.
Because the cabinet base remains intact, existing strip lighting, light pelmets and suitable under-cabinet lighting can normally remain in position. This makes the lift suitable for both new kitchens and retrofit installations where the existing cabinet appearance and lighting are to be retained.
Cabinet Compatibility
The InDIAGO 510SA is designed for installation inside compatible 850 mm high wall cabinets.
- Available cabinet widths: 500, 600, 700, 800, 900 and 1000 mm
- Nominal wall cabinet height: 850 mm
- Minimum internal cabinet height: 810 mm
- Minimum internal cabinet depth: 260 mm
- Suitable cabinet side thickness: 16–20 mm
- Shelf depth: approximately 230 mm
- Suitable for integration into kitchens from different cabinet manufacturers.
Technical Specification
- Product Code: 510SA
- Type of lift: Diagonal lifting system for wall cabinets
- Lifting unit height: 810 mm
- Lifting unit depth: 260 mm
- Vertical travel: 540 mm
- Forward movement: 373 mm
- Height adjustment: Motorised and steplessly adjustable
- Operating speed: 23 mm/sec
- Maximum load capacity: 40 kg
- Electrical connection: 230V mains plug, maximum 2.0A
- IP Rating: IP30
- Operation: Wired button or radio control
- Automatic motor-driven door opening and closing.
Materials & Finish
- White powder-coated aluminium cabinet lifting system.
- White powder-coated sheet metal components.
- White melamine shelves, 16 mm thick.
- HDF back and top panels.
Warranty
- 5 year manufacturer warranty.
- This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies.
Installation Notes
- Suitable for installation in compatible new or existing wall cabinets.
- The cabinet base does not need to be removed.
- Requires a nominal cabinet height of 850 mm and a minimum internal cabinet height of 810 mm.
- Requires a minimum internal cabinet depth of 260 mm.
- Compatible with cabinet side thicknesses of 16–20 mm.
- Requires two cabinet doors for automatic door operation.
- Not suitable for in-frame cabinet construction.
- Hinges with integrated soft-close damping are compatible.
- Separate hinge dampers may need to be removed.
- The cabinet and its wall fixings must be checked for suitability before installation.
- The electrical supply and control position should be planned before installation.
Available Cabinet Widths
- 500 mm
- 600 mm
- 700 mm
- 800 mm
- 900 mm
- 1000 mm
Manufacturer Product Codes
510SA-050, 510SA-060, 510SA-070, 510SA-080, 510SA-090 and 510SA-100.
| Manufacturer | Granberg |
|---|---|
| Model | InDiago 510 |
| Style | Cabinet Shelves Lower to User |
| Max. Distance Lowered (mm) | 540 |
| For Cabinet Width (mm) | 500, 600, 700, 800, 900, 1000 |
| Cabinet Height (mm) | 850 or Higher |
| For Cabinet Depth (mm) | 260 - 309 (Internal) |
| Max. Load (kg / St) | 40 / 6.3 |
| Colour | White - 01 |
| Stock status | Made to order |
|---|---|
| Delivery time | 2-3 weeks |
| Returns Status | Returnable in 14 days |
