Granberg Wall Mounted Cranked Combi Kitchen Module 6350-ES30S4 - Right, Choice of Widths 2190 / 2390mm

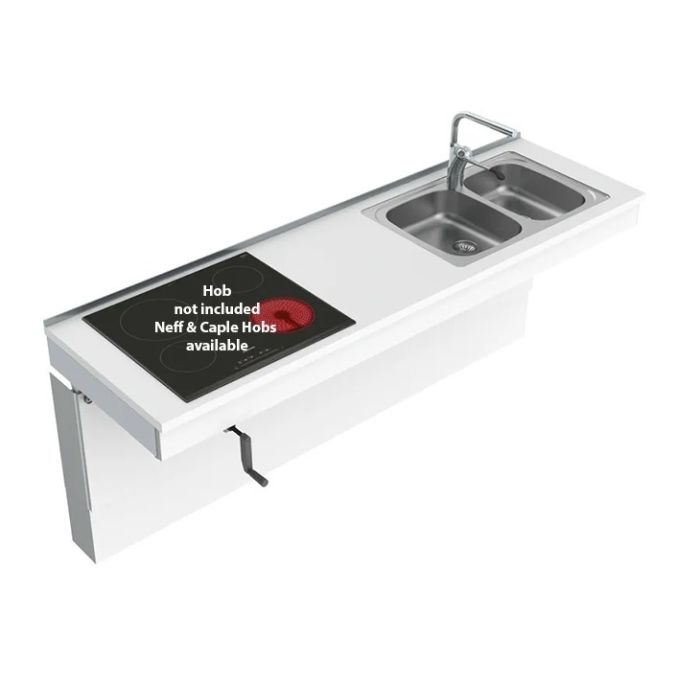

Granberg’s Combi Kitchen Module 6350-ES30S4R, wall mounted with 300mm of height adjustment by a cranked winding handle with a 30mm White laminate worktop. The manual worktop lift features a right-hand ES30 under-glued inset twin shallow 120mm depth insulated sink bowls, with overflows and free space for a left-hand 4 zone cooking hob. The insulated underside of the sinks prevents scalding and burns to the user.

Choice of optional Granberg FM Mattsson kitchen monobloc mixer taps, 190mm easy to reach lever with a swivel spout - with or without dishwasher cut-off valve.

The folding crank handle, prevents removal and theft, that can be ordered left or right hand mounted.

Pre-fitted front facia, the rear cover panels are easy to fit and hide the legs and services.

The modules are manufactured 10mm shorter in width, to allow for a 5mm clearance gap at both ends for safe movement, ideal for the direct replacement of 2200 to 2400mm width cabinets. The module has a reduced depth of 15mm to accommodate splashbacks and wall tiles.

Electric floor standing systems or Manual wall mounted variations are also available.

Key benefits:

• Right hand combi kitchen module with 300mm of hand cranked height adjustment, 700-1000mm above floor, plus the 30mm worktop
• Worktop décor - K1040 Un 30mm White Laminate finished with a brushed aluminium rear edge trim
• Folding crank handle, prevents removal and theft
• The wall mounted legs are concealed by 2x matt white sliding cover panels with 2x dark grey coloured steel end plates
• Tilt able worktop plane for adjustment
• Full extension drawers can be added (except; below the hob) as a factory fitted option - (Contact us if required)
• Range of widths 2190 and 2390mm to suit standard kitchen base unit spaces: 2200 and 2400mm
• The modules are 10mm shorter in width to allow for a 5mm gap both sides of the unit for the up/down movement
• Adjustable depth 576-606mm including the Alu. front to suit adjoining cabinets and worktops
• 100mm free space below the foot of each leg for services
• Quick solution, top frame supplied pre-assembled for fast site installation
• White Powder Coated RAL 9003 aluminium 103mm facia front with plastic end caps
• Right hand mounted ES30 kitchen sink with two insulated shallow depth sink bowls with overflows. Inset and under-glued into the worktop of your choice
• Free space for a 4 zone electric cooking hob (do not fit gas hobs)
• All components available separately
• Optional Granberg FM Mattsson (FMM) kitchen monobloc mixer tap with 190mm easy reach lever and swivel spout that can be adjusted to 60°, 85°, 110°, 360° or fixed
• Pair of flexible Water Hoses 2-pack, 3/8", length 500mm with Tap connectors for FMM taps

Optional choice of tap style:

• - 60210 FMM Inc. dishwasher shut off valve (Not WRAS approved)
• - 60211 FMM Excl. dishwasher shut off valve (Not WRAS approved)

Cranked Combi Kitchen Module 6350-ES30S4 Right includes:

• Wall mounted Manulift 6350 with 2x legs
• Folding crank handle, prevents removal and theft, right or left hand located - as per the product image
• 2x 12mm matt white melamine cover panels hide service installations under the worktop
• White aluminium front facia
• Worktop décor - K1040 Un 30mm White Laminate
• Brushed aluminium rear edge strip
• Right ES30 under-glued inset sinks with 2x shallow traps, strainer wastes and a flexible drain hose
• Optional choice of Granberg FMM Mixer tap with long lever with or without dishwasher cut-off valve, and flexible water hoses
• Left hand free space for your electric cooking hob

Recommended accessories:

• Full extension, push-to-open integrated drawers
• Cutlery trays
• Power Switch
• FMM long lever kitchen mixer taps, tap hole cutter and flexible hoses
• 4 Zone cooking hob - Please contact us for prices for Neff and other brands
• Mini cabinet on wheels

Technical details:

• Height adjustment: Manually cranked adjustable by 300mm (700 - 1000mm excl. worktop)
• Crank handle inset from left- or right-hand side of the worktop end by 235mm
• Folding crank handle, prevents removal and theft
• 1x turn for height adjustment of 10mm
• Max. distributed load / Lifting force: 100kg (220lbs)
• Frame depth: 576 - 606mm from the wall (Incl. front)
• Tilt able worktop plane for adjustment
• Front height: 103mm
• All fittings for assembly supplied wall fixings not included
• Space to adjoining wall / cabinet side (mm): 5
• Space to wall (for tiles): 15mm
• Tiling: From 700 mm above the floor (alternatively tile down to floor level)
• Worktop frame Material: Aluminium frame
• ES30 sink Overall size: 766mm width x 496mm depth
• Main bowl size: 340mm width x 400mm depth x 120mm deep
• Second bowl size: 293mm width x 400mm depth x 120mm deep
• Plate thickness: 0.8 mm, brushed stainless steel
• Shallow traps, strainer wastes and a flexible waste kit

4-zone Hob space planning: (The hob shown in images is not included):

• Inset by 50mm from the left hand end of worktop
• Inset from the front by 50mm
• Please refer to your hob manufactures installation instructions
• The hob cut-out should be made on site to suit the cooking hob dimensions
• Not suitable for gas hobs

Warranty:

• 2 year manufacturer warranty

Please note:

• Due to the custom nature of this product, it is made-to-order and is therefore non-returnable
• The Tap hole is not pre-drilled and the hob space is not cut out
