Granberg Wall Mounted Cranked Mini Kitchen Module 6350-ES11S2 - Right, Choice of Widths 1190-1790mm

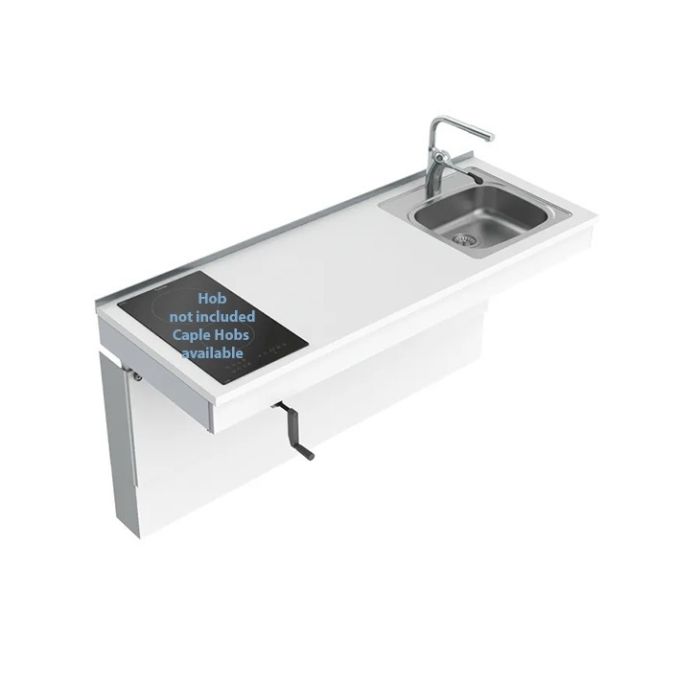

Granberg’s Mini Kitchen Module 6350-ES11S2R, wall mounted with 300mm of height adjustment by a cranked winding handle with a 30mm White laminate worktop. This wall mounted manual worktop lift features a right hand ES11 under-glued inset shallow 120mm depth insulated kitchen sink bowl with overflow and free space for a left-hand 2 zone cooking hob. The sinks insulated underside prevents scalding and burns to the user.

Choice of optional Granberg FM Mattsson kitchen monobloc mixer taps, 190mm easy to reach lever with a swivel spout - with or without dishwasher cut-off valve.

The folding crank handle, prevents removal and theft, that can be ordered left or right hand mounted.

Pre-fitted front facia, the rear cover panels are easy to fit and hide the legs and services.

The modules are manufactured 10mm shorter in width, to allow for a 5mm clearance gap at both ends for safe movement, ideal for the direct replacement of 1200 to 1800mm width cabinets. The module has a reduced depth of 15mm to accommodate splashbacks and wall tiles.

Electric floor standing systems or Manual wall mounted variations are also available.

Key benefits:

• Right hand mini kitchen module with 300mm of hand cranked height adjustment, 700-1000mm above floor, plus the 30mm worktop
• Worktop décor - K1040 Un 30mm White Laminate finished with a brushed aluminium rear edge trim
• Folding crank handle, prevents removal and theft
• The wall mounted legs are concealed by 2x matt white sliding cover panels with 2x dark grey coloured steel end plates
• Tilt able worktop plane for adjustment
• Full extension drawers can be added (except; below the hob) as a factory fitted option - (Contact us if required)
• Range of widths 1190, 1390, 1590 and 1790mm to suit standard kitchen base unit spaces: 1200, 1400, 1600 and 1800mm
• The modules are 10mm shorter in width to allow for a 5mm gap both sides of the unit for the up/down movement
• Adjustable depth 576-606mm including the Alu. front to suit adjoining cabinets and worktops
• 100mm free space below the foot of each leg for services
• Quick solution, top frame supplied pre-assembled for fast site installation
• White Powder Coated RAL 9003 aluminium 103mm facia front with plastic end caps
• Right hand mounted ES11 insulated single bowl kitchen sink with overflow. Inset and under-glued into the worktop
• Free space for a 2 zone electric cooking hob (do not fit gas hobs)
• Optional Granberg FM Mattsson (FMM) kitchen monobloc mixer tap with 190mm easy reach lever and swivel spout that can be adjusted to 60°, 85°, 110°, 360° or fixed
• Pair of flexible Water Hoses 2-pack, 3/8", length 500mm with Tap connectors for FMM taps

Optional choice of tap style:

• - 60210 FMM Inc. dishwasher shut off valve (Not WRAS approved)
• - 60211 FMM Excl. dishwasher shut off valve (Not WRAS approved)
• All components available separately

Mini Kitchen Module 6350-ES11S2 Right includes:

• Wall mounted Manulift 6350 with 2x legs
• Folding crank handle, prevents removal and theft, right or left hand located - as per the product image
• 2x 12mm matt white melamine cover panels hide service installations under the worktop
• White aluminium front facia
• Worktop décor - K1040 Un 30mm White Laminate
• Brushed aluminium rear edge strip
• Right hand mounted - ES11 under-glued inset insulated sink with a shallow trap, strainer waste and a flexible drain hose
• Optional choice of Granberg FMM Mixer tap with long lever with or without dishwasher cut-off valve, and flexible water hoses
• Left hand free space for your electric cooking hob

Recommended accessories:

• Full extension, push-to-open integrated drawers
• Cutlery trays
• Power Switch
• Mini cabinet on wheels
• FMM long lever kitchen mixer taps, tap hole cutter and flexible hoses
• 2 Zone cooking hob - Please contact us for prices for Neff and other brands

Technical details:

• Height adjustment: Manually cranked adjustable by 300mm (700 - 1000mm excl. worktop)
• Crank handle inset from left or right-hand side of the worktop end by 235mm
• Folding crank handle, prevents removal and theft
• 1x turn for height adjustment of 10mm
• Max. distributed load / Lifting force: 100kg (220lbs)
• Frame depth: 576 - 606mm from the wall (Incl. front)
• Tilt able worktop plane for adjustment
• Front height: 103mm
• All fittings for assembly supplied, wall fixings not included
• Space to adjoining wall / cabinet side (mm): 5
• Space to wall (for tiles): 15mm
• Tiling: From 700 mm above the floor (alternatively tile down to floor level)
• Worktop frame Material: Aluminium frame
• ES11 sink overall size: 496mm width x 500mm depth
• Bowl size: 400mm width x 340mm depth x 120mm deep
• Plate thickness: 0.8 mm, brushed stainless steel
• Shallow trap, strainer waste and a flexible waste kit

2-zone Hob space planning: (The hob shown in images is not included):

• Inset by 50mm from the left hand end of worktop
• Inset from the front by 50mm
• Please refer to your hob manufactures installation instructions
• The hob cut-out should be made on site to suit the cooking hob dimensions
• Not suitable for gas hobs

Warranty:

• 2 year manufacturer warranty

Please note:

• Due to the custom nature of this product, it is made-to-order and is therefore non-returnable
• The Tap hole is not pre-drilled and the hob space is not cut out
