Granberg Wall Mounted Manual Mini Kitchen Module 6380-ES11S2 - Right, Choice of Widths 1190-1790mm

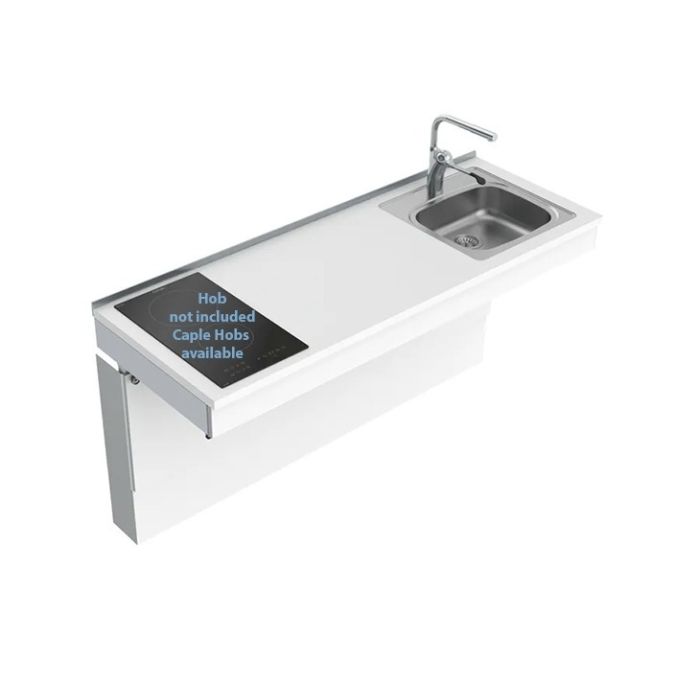

Complete wall mounted manual mini kitchen module by Granberg. Right-hand mounted under-glued inset ES11 single bowl insulated shallow 120mm depth kitchen sink and free space for a left hand 2 zone hob, to be cut out on site to suit your hob dimensions. Optional single lever tap with swivel spout, choice of with or without dishwasher cut-off valve. Inc. tap hole cutter and 3/8", 500mm flexible water hoses. White facia front. Worktop décor - K1040 Un 30mm White Laminate, finished with a brushed aluminium rear edge trim. Easy to remove matt white cover panels hide the legs and services below the worktop. Height adjustable range of 300m, in 25mm increments The built-in gas spring in the support legs facilitates height adjustment, with a locking pin. Maximum load 100kg.

Granberg’s Mini Kitchen Module 6380-ES11S2R, wall mounted with 300mm of height adjustment by gas strut legs with a 30mm White laminate worktop. This wall mounted manual worktop lift features a right hand ES11 under-glued inset shallow 120mm depth insulated kitchen sink bowl with overflow and free space for a left-hand 2 zone cooking hob. The sinks insulated underside prevents scalding and burns to the user.

Choice of optional Granberg FM Mattsson kitchen monobloc mixer taps, 190mm easy to reach lever with a swivel spout - with or without dishwasher cut-off valve.

For occasional height adjustments. Height adjustable range 300mm, in increments of 25mm. The built-in gas spring in the support legs facilitates height adjustment, with a locking pin.

Pre-fitted front facia, the rear cover panels are easy to fit and hide the legs and services.

The modules are manufactured 10mm shorter in width, to allow for a 5mm clearance gap at both ends for safe movement, ideal for the direct replacement of 1200 to 1800mm width cabinets. The module has a reduced depth of 15mm to accommodate splashbacks and wall tiles.

Electric floor standing systems or Manual wall mounted variations are also available.

Key benefits:

  • Right hand mini kitchen module with 300mm of manual height adjustment, 700-1000mm above floor, plus the 30mm worktop
  • Worktop décor - K1040 Un 30mm White Laminate finished with a brushed aluminium rear edge trim
  • Built-in gas spring in the support legs facilitates height adjustment, with a locking pin
  • Pull out the locking pin, adjust the height in 25mm increments with the help of the gas spring. Lock the position with the locking pin
  • The wall mounted legs are concealed by 2x matt white sliding cover panels with 2x dark grey coloured steel end plates
  • Tilt able worktop plane for adjustment
  • Full extension drawers can be added (except; below the hob) as a factory fitted option - (Contact us if required)
  • Range of widths 1190, 1390, 1590 and 1790mm to suit standard kitchen base unit spaces: 1200, 1400, 1600 and 1800mm
  • The modules are 10mm shorter in width to allow for a 5mm gap both sides of the unit for the up/down movement
  • Adjustable depth 576-606mm including the Alu. front to suit adjoining cabinets and worktops
  • 100mm free space below the foot of each leg for services
  • Quick solution, top frame supplied pre-assembled for fast site installation
  • White Powder Coated RAL 9003 aluminium 103mm facia front with plastic end caps
  • Right hand mounted ES11 insulated single bowl kitchen sink with overflow. Inset and under-glued into the worktop
  • Left hand free space for a 2 zone electric cooking hob (do not fit gas hobs)
  • Optional Granberg FM Mattsson (FMM) kitchen monobloc mixer tap with 190mm easy reach lever and swivel spout that can be adjusted to 60°, 85°, 110°, 360° or fixed
  • Pair of flexible Water Hoses 2-pack, 3/8", length 500mm with Tap connectors for FMM taps
  • Optional choice of tap style:

  • - 60210 FMM Inc. dishwasher shut off valve (Not WRAS approved)
  • - 60211 FMM Excl. dishwasher shut off valve (Not WRAS approved)
  • All components available separately

Mini Kitchen Module 6380-ES11S2 Left includes:

  • Wall mounted Manulift 6380 with 2x legs
  • Built-in gas spring in the support legs facilitates height adjustment, with a locking pin.
  • 2x 12mm matt white melamine cover panels hide service installations under the worktop
  • White aluminium front facia
  • Worktop décor - K1040 Un 30mm White Laminate
  • Brushed aluminium rear edge strip
  • Right hand mounted - ES11 under-glued inset insulated sink with a shallow trap, strainer waste and a flexible drain hose
  • Optional choice of Granberg FMM Mixer tap with long lever with or without dishwasher cut-off valve, and flexible water hoses
  • Left hand free space for your electric cooking hob

Recommended accessories:

  • Full extension, push-to-open integrated drawers
  • Cutlery trays
  • Power Switch
  • Mini cabinet on wheels
  • FMM long lever kitchen mixer taps, tap hole cutter and flexible hoses
  • 2 Zone cooking hob - Please contact us for prices for Neff and other brands

Technical details:

  • Occasional height adjustment: Manually adjustable by 300mm (700 - 1000mm excl. worktop) in 25mm increments
  • Built-in gas spring in the support legs facilitates height adjustment, with a locking pin
  • Pull out the locking pin, adjust the height in 25mm increments with the help of the gas spring. Lock the position with the locking pin
  • Max. distributed load / Lifting force: 100kg (220lbs)
  • Frame depth: 576 - 606mm from the wall (Incl. front)
  • Tilt able worktop plane for adjustment
  • Front height: 103mm
  • All fittings for assembly supplied, wall fixings not included
  • Space to adjoining wall / cabinet side (mm): 5
  • Space to wall (for tiles): 15mm
  • Tiling: From 700 mm above the floor (alternatively tile down to floor level)
  • Worktop frame Material: Aluminium frame
  • ES11 sink overall size: 496mm width x 500mm depth
  • Bowl size: 400mm width x 340mm depth x 120mm deep
  • Plate thickness: 0.8 mm, brushed stainless steel
  • Shallow trap, strainer waste and a flexible waste kit

2-zone Hob space planning: (The hob shown in images is not included):

  • Inset by 50mm from the left hand end of worktop
  • Inset from the front by 50mm
  • Please refer to your hob manufactures installation instructions
  • The hob cut-out should be made on site to suit the cooking hob dimensions
  • Not suitable for gas hobs

Warranty:

  • 2 year manufacturer warranty

Please note:

  • Due to the custom nature of this product, it is made-to-order and is therefore non-returnable
  • The Tap hole is not pre-drilled and the hob space is not cut out
  • The cover panels must be removed to allow for height adjustments to be made
Technical Information
Manufacturer Granberg
Mounting / Model Mini Kitchen Module
Max. Load (kg / St) 100 / 15.7
Method of Operation Manual - Gas Strut Legs
Height Adjustment (mm) 300
Mounting Wall Mounted
Stock status Made to order
Delivery time3-4 weeks
Returns Status Custom Made, non-returnable
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
Product Code: 6380-ES11S2-R
Availability Made to order (Info)
Expected delivery 3-4 weeks
VAT Exemption is available on this product - deducted at Checkout (Info)
Complete wall mounted manual mini kitchen module by Granberg. Right-hand mounted under-glued inset ES11 single bowl insulated shallow 120mm depth kitchen sink and free space for a left hand 2 zone hob, to be cut out on site to suit your hob dimensions. Optional single lever tap with swivel spout, choice of with or without dishwasher cut-off valve. Inc. tap hole cutter and 3/8", 500mm flexible water hoses. White facia front. Worktop décor - K1040 Un 30mm White Laminate, finished with a brushed aluminium rear edge trim. Easy to remove matt white cover panels hide the legs and services below the worktop. Height adjustable range of 300m, in 25mm increments The built-in gas spring in the support legs facilitates height adjustment, with a locking pin. Maximum load 100kg.
