Granberg Wall Mounted Motorised Combi Kitchen Module 6300-ES11S4 - Left, 2190-2990mm

Granberg 6300-ES11S4L Electric Mini Kitchen Module with Left-Hand Sink

The Granberg 6300-ES11S4L is a wall-mounted electric kitchen module combining a height-adjustable worktop, a left-hand sink and space for a right-hand four-zone electric hob.

The module provides 300 mm of stepless height adjustment and includes a 30 mm White laminate worktop. The left-hand ES11 stainless steel sink has a shallow 120 mm bowl, an overflow and an insulated underside to help protect users from contact with hot surfaces.

A shallow trap, strainer waste and flexible waste kit are included.

Optional Granberg FM Mattsson mixer taps feature a 190 mm lever and an adjustable swivel spout, with a choice of models with or without a dishwasher shut-off valve.

Designed for Accessible Kitchens

The module can be integrated into kitchens from different manufacturers, subject to the installation dimensions and supporting wall being suitable. The top frame is supplied pre-assembled, with plug-and-play motor and control connections to simplify installation.

The ALU-design control button and key-operated safety lock are factory-fitted into the front fascia in your specified position. Sliding rear cover panels conceal the lifting legs and services.

Floor-standing electric systems and manually operated wall-mounted alternatives are also available.

Key Benefits

• Wall-mounted electric kitchen module with a left-hand sink and right-hand hob space.
• 300 mm of stepless motorised height adjustment.
• Frame height adjusts from 700 to 1000 mm above the floor, excluding the 30 mm worktop.
• K1040 Un White laminate worktop with a brushed aluminium rear edge trim.
• Left-hand ES11 insulated stainless steel sink, inset and under-glued into the worktop.
• Shallow trap, strainer waste and flexible waste kit included.
• Space for a four-zone electric hob. Not suitable for gas hobs.
• Adjustable worktop plane for levelling.
• Pre-assembled top frame for quicker installation.
• Plug-and-play motor and control connections.
• ALU-design corded control with large up and down buttons.
• Control button and key-operated safety lock factory-fitted in your specified position.
• White powder-coated aluminium front fascia, RAL 9003, with plastic end caps.
• Two matt white sliding cover panels and two dark grey steel end plates conceal the lifting system.
• 100 mm clearance beneath each leg for services.
• Full-extension drawers available as a factory-fitted option, except beneath the hob. Please contact us before ordering.
• Components are also available separately.

Available Widths and Installation Clearances

The modules are manufactured 10 mm narrower than the nominal installation space, providing a 5 mm clearance at each end for movement.

• 2190 mm module for a 2200 mm installation space.
• 2390 mm module for a 2400 mm installation space.
• 2590 mm module for a 2600 mm installation space.
• 2790 mm module for a 2800 mm installation space.
• 2990 mm module for a 3000 mm installation space.
• Adjustable frame depth, including the front: 576–606 mm.
• Rear clearance allowance for tiles or splashbacks: 15 mm.

Optional Mixer Taps

Choose a Granberg FM Mattsson monobloc kitchen mixer tap with a 190 mm lever. The swivel spout can be limited to 60°, 85°, 110° or 360°, or fixed to prevent rotation.

• 60210: mixer tap with dishwasher shut-off valve. Not WRAS approved.
• 60211: mixer tap without dishwasher shut-off valve. Not WRAS approved.
• Flexible water supply hoses for FMM taps: pair of 500 mm hoses with 3/8-inch connections and tap connectors.

Optional Induction Hob

The Caple C8400i 59 cm induction hob is available as an optional extra.

• Dial controls.
• Four cooking zones.
• Ten power levels.
• Child safety lock.
• Automatic pan detection.
• Residual heat indicators.

Please contact us for prices for Neff and other hob brands.

Integrated Safety System

An anti-pinch safety stop strip is fitted beneath the front edge of the worktop frame. Contact with the strip stops downward movement.

Additional side safety stop strips are available and are required where the worktop is positioned beside furniture or other objects, such as a waste bin, that could create an entrapment risk.

When correctly installed, the underside of the frame is 597 mm above the floor at its lowest position and 897 mm at its highest position. The installation must prevent entrapment against adjoining surfaces throughout the full movement range.

What's Included

• Wall-mounted motorised 6300 worktop lift with two leg motors. Lifts wider than 2400 mm have three leg motors.
• ALU-design control button, measuring 82 × 82 × 17 mm.
• Safety lock with keys.
• Safety stop system beneath the front edge of the worktop frame.
• Two 12 mm matt white melamine cover panels to conceal service installations.
• White aluminium front fascia.
• K1040 Un White laminate worktop, 30 mm thick.
• Brushed aluminium rear edge trim.
• Left-hand ES11 insulated sink, inset and under-glued into the worktop.
• Shallow trap, strainer waste and flexible waste kit.
• Right-hand space for an electric cooking hob.

Mixer taps, flexible water supply hoses and the cooking hob are optional extras unless selected with your order.

Recommended Accessories

• Factory-fitted full-extension, push-to-open drawers.
• Cutlery trays.
• Power switch.
• Two-button multi-compartment frame.
• Mini cabinet on wheels.
• FMM long-lever kitchen mixer taps.
• Tap hole cutter and flexible water supply hoses.
• Four-zone electric cooking hob.

Technical Details

• Product code: 6300-ES11S4L.
• Height adjustment: motor-driven and stepless through 300 mm.
• Frame height above the floor: 700–1000 mm, excluding the worktop.
• Worktop thickness: 30 mm.
• Operating speed: 30 mm per second.
• Maximum distributed load / lifting force: 100 kg, approximately 220 lb.
• Electrical connection: 230 V mains plug, maximum 5 A.
• Protection rating: IP20.
• Frame depth from the wall, including the front: 576–606 mm.
• Front fascia height: 103 mm.
• Frame material: aluminium.
• Adjustable worktop plane for levelling.
• Clearance to an adjoining wall or cabinet side: 5 mm.
• Rear clearance allowance for tiles: 15 mm.
• Tiling: from 700 mm above the floor, or down to floor level.
• Assembly fittings supplied. Wall fixings are not included.

ES11 Sink Specification

• Position: left-hand side.
• Overall sink dimensions: 496 mm wide × 500 mm deep.
• Bowl dimensions: 400 mm wide × 340 mm front to back × 120 mm deep.
• Material: brushed stainless steel, 0.8 mm thick.
• Insulated underside.
• Overflow included.
• Inset and under-glued into the worktop.
• Shallow trap, strainer waste and flexible waste kit included.

Hob and Tap Installation

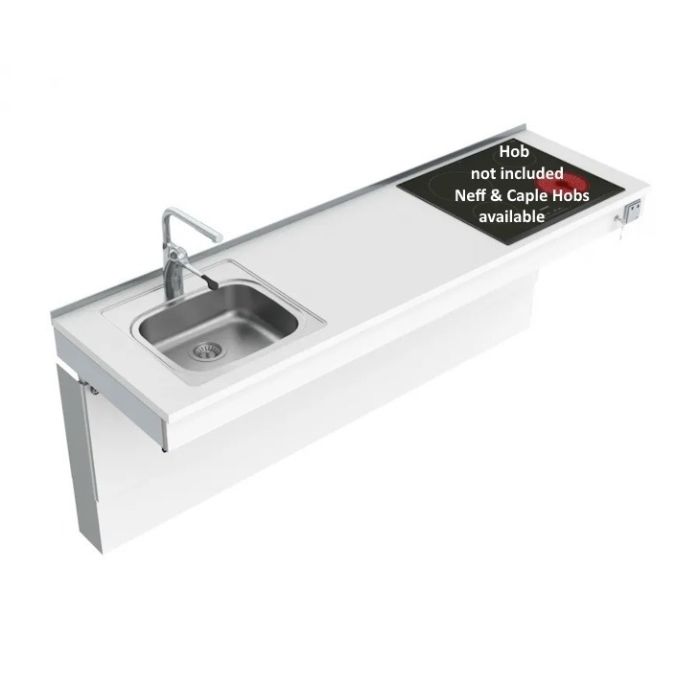

The hob shown in the product images is not included unless selected as an optional extra.

The worktop is supplied without a pre-drilled tap hole or hob cut-out. These must be completed on site to suit the selected tap and hob.

• The hob is intended for the right-hand side of the module.
• Allow a 50 mm inset from the front edge, subject to the hob manufacturer's installation requirements.
• Confirm the required end clearance and cut-out position before cutting.
• Follow the hob manufacturer's cut-out dimensions, ventilation requirements and installation instructions.
• Not suitable for gas hobs.

Warranty

This product includes a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, the standard 3-year warranty applies.

Made-to-Order Product

This kitchen module is made to order. Please confirm all dimensions, options, control positions and installation requirements before approving your order.

Made-to-order products are non-returnable unless faulty or supplied incorrectly. Your statutory rights are unaffected.
