Granberg Wall Mounted Motorised Combi Kitchen Module 6300-ESHS4 - Right, Choice of Widths 2190-2990mm

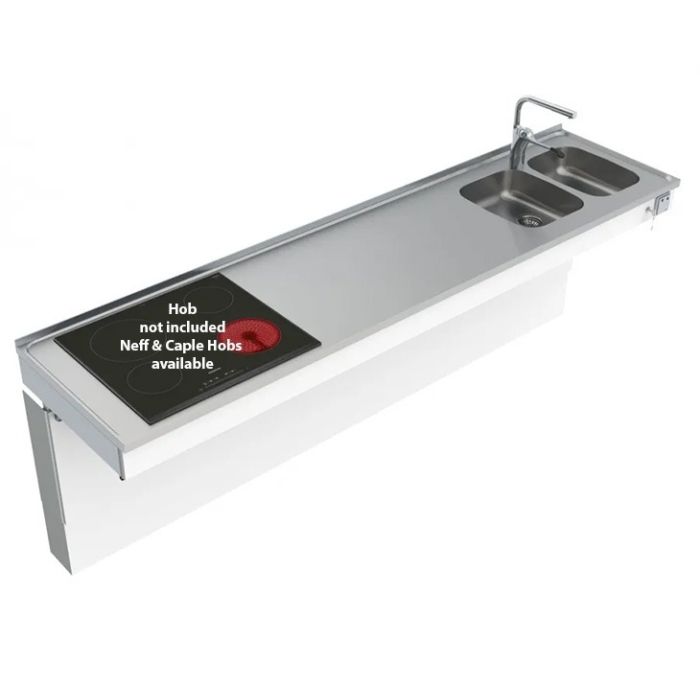

A complete wall mounted electric worktop lifting module by Granberg, ESH stainless steel smooth worktop/drying area with left-hand twin shallow 120mm depth insulated sink bowls, with overflows and right-hand 4 zone cooking hob cut-out to your dimensions. Optional single lever tap with swivel spout, choice of with or without dishwasher cut-off valve. Inc. tap hole cutter and 3/8", 500mm flexible water hoses. White facia front with pre-fitted ALU-design up/down button and key lock. Brushed aluminium rear edge trim. Easy to remove matt white cover panels hide the legs and services below the worktop. Height adjustable range of 300mm. Maximum load 100kg.
Granberg combi kitchen module 6300-ESHS4R, a wall mounted electric worktop lift, 300mm of step less height adjustment. Stainless worktop/drying area with two right hand insulated shallow kitchen sink bowls with overflows and custom size hob cut-out to your dimensions to the left. The insulated underside of the sinks prevents scalding and burns to the user.
Choice of optional Granberg FM Mattsson kitchen monobloc mixer taps, 190mm easy to reach lever with a swivel spout - with or without dishwasher cut-off valve.
The underside of the ESH stainless steel worktop/drying area is supported by a fully-glued MDF board.
The ALU-design control button and safety lock will be pre-fitted in the front facia, the rear cover panels are easy to fit and hide the legs and services.
Compatible with any kitchen manufacturer this complete electric worktop lifting system is easy and quick to install with "Plug and Play" electronics and motor systems.
The modules are manufactured 10mm shorter in width, to allow for a 5mm clearance gap at both ends for safe movement, ideal for the direct replacement of 2200 to 3000mm width cabinets. The module has a reduced depth of 15mm to accommodate splashbacks and wall tiles.
The anti-pinch safety strip is located under the front edge of the worktop front facia. If anything touches the strip, the lift unit stops. Side safety strips are available as an optional extra.
Electric floor standing systems or Manual wall mounted variations are also available.
Key benefits:
- Right hand combi kitchen module with 300mm of motorised height adjustment, 730-1030mm above the floor
- The wall mounted legs are concealed by 2x matt white sliding cover panels with 2x dark grey coloured steel end plates
- Tilt able worktop plane for adjustment
- Full extension drawers can be added (except; below the hob) as a factory fitted option - (Contact us if required)
- Range of widths 2190, 2390, 2590, 2790 and 2990mm to suit standard kitchen base unit spaces: 2200, 2400, 2600, 2800 and 3000mm
- The modules are 10mm shorter in width to allow for a 5mm gap both sides of the unit for the up/down movement
- Adjustable depth 576-606mm including the Alu. front to suit adjoining cabinets and worktops
- 100mm free space below the foot of each leg for services
- Quick solution, top frame supplied pre-assembled for fast site installation
- Simple 'plug and play' setup for easy motor configuration
- Granberg corded control button ALU-design 82 x 82 x 17mm, with large easy to use up/down buttons
- White Powder Coated RAL 9003 aluminium 103mm facia front with plastic end caps
- The control button and key lock are factory fitted in the facia front in your specified position
- ESH stainless steel worktop/drying area with right left hand 120mm deep insulated shallow bowls with overflows and flexible waste kit
- Customizable (on order) space for a 4 zone electric cooking hob (do not fit gas hobs)
- All components available separately
- Optional Granberg FM Mattsson (FMM) kitchen monobloc mixer tap with 190mm easy reach lever and swivel spout that can be adjusted to 60°, 85°, 110°, 360° or fixed
- Pair of flexible Water Hoses 2-pack, 3/8", length 500mm with Tap connectors for FMM taps
- - 60210 FMM Inc. dishwasher shut off valve (Not WRAS approved)
- - 60211 FMM Excl. dishwasher shut off valve (Not WRAS approved)
Optional choice of tap style:
Integrated safety system:
- Anti-pinch safety stop strip located below the front edge of the worktop frame
- This strip prevents the lift from descending if contact is made
- Additional side safety stop strips can be added, required if the worktop is situated adjacent to other furniture* or objects like a waste bin
- *When correctly installed the frames underside from the floor should be 597mm at its lowest and 897mm at the highest point. Entrapment should be prevented with adjoining surfaces
Combi Kitchen Module 6300-ESHS4 Right includes:
- Wall mounted motorised 6300 worktop lift with 2x leg motors
- Lifts wider than 2400mm will have 3x leg motors
- Control button, ALU-design
- Safety lock with keys
- Safety stop system under the front edge of the worktop frame
- 2x 12mm matt white melamine cover panels hide service installations under the worktop
- White aluminium front facia
- Smooth stainless steel worktop and drying area with raised perimeter
- Brushed aluminium rear edge trim
- ESH worktop/drying area with right left hand 120mm shallow depth, insulated sink bowls, with overflows, dual shallow traps, strainer wastes and a flexible drain hose
- Optional choice of Granberg FMM Mixer tap with long lever with or without dishwasher cut-off valve, and flexible water hoses
- Left hand customizable cut-out, to suit your electric cooking hob
Recommended accessories:
- Full extension, push-to-open integrated drawers
- Cutlery trays
- Power Switch
- 2 Button multi-compartment frame
- FMM long lever kitchen mixer taps, tap hole cutter and flexible hoses
- 4 Zone cooking hob - Please contact us for prices for Neff and other brands
- Mini cabinet on wheels
Technical details:
- Height adjustment: Motor-driven, steplessly adjustable by 300mm (730 - 1030mm)
- Speed: 30mm / sec.
- Safety: Security strip, contact with the strip stops the lift
- Electrical connection: Mains plug for 230 V, max 5.0 A
- Max. distributed load / Lifting force: 100kg (220lbs)
- IP-class: IP 20
- Frame depth: 576 - 606mm from the wall (Incl. front)
- Tilt able worktop plane for adjustment
- Front height: 103mm
- All fittings for assembly supplied wall fixings are not included
- Space to adjoining wall / cabinet side (mm): 5
- Space to wall (for tiles): 15mm
- Tiling: From 700 mm above the floor (alternatively tile down to floor level)
- Worktop frame Material: Aluminium frame
- ESH sink: Smooth 1mm stainless steel sheet
- Main bowl size: 340mm width x 400mm depth x 120mm deep
- Rinse bowl size: 293mm width x 400mm depth x 120mm deep
- Shallow traps, strainer wastes and a flexible waste kit
4-zone Hob cut-out (The hob shown in images is not included):
- Inset by 500mm from the Left hand end of worktop
- Pre-cut to your specified dimensions
- Inset from the front by 50mm
- Specify your Width x Depth (mm), as per your hob manufactures installation instructions
Stainless steel worktop:
- Hygienic and wear-resistant drying area
- Smooth 1mm stainless steel sheet with a raised edge perimeter
- The underside of the stainless steel worktop is supported by a fully-glued MDF board
- Overall thickness of worktop: 30mm
Warranty:
- 2 year manufacturer warranty
Please note:
- Due to the custom nature of this product, it is made-to-order and is therefore non-returnable
- The Tap hole is not pre-drilled
| Manufacturer | Granberg |
|---|---|
| Mounting / Model | Combi Kitchen Module |
| Max. Load (kg / St) | 100 / 15.7 |
| Method of Operation | Electric - Push Button |
| Height Adjustment (mm) | 300 |
| Mounting | Wall Mounted |
| Stock status | Made to order |
|---|---|
| Delivery time | 3-4 weeks |
| Returns Status | Custom Made, non-returnable |
