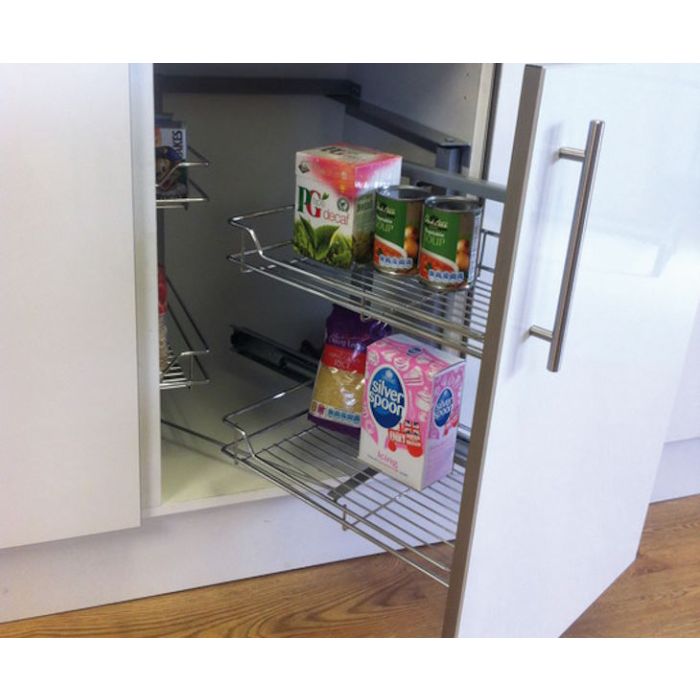

Hafele Pull and Swing Corner Storage Unit, 800-1000 mm CAB, 4x Linear Silver Wire Baskets - Right
Storage system for corner and straight kitchen cabinet widths of of 800/900 and 1000 mm. Right handed, with 400 and 500/600 mm door widths. Internal cabinet height: 530 mm. Internal cabinet depth: 490 mm. Soft closing. 4 x Linear silver painted steel baskets. Max. load 19kg.
This clever storage mechanism can be retro fitted to corner and straight kitchen base units of 800, 900 and 1000mm widths.
On opening the cabinet, the mechanism swings out to allow access to all the contents of the cabinet.
This is the right hand configuration, please check your handing prior to ordering.
Set includes:
- 1x Rear hanging frame and base mounting track
- 1x Door hanging frame and base mounting track
- 1x Door frame
- Door panel hanging plates
- 3 way adjustable and soft close mechanism
- 2x Rear storage baskets - Linear silver painted steel
- 2x Front storage baskets - Linear silver painted steel
- Fixing materials
- Fitting instructions
Technical details:
- Side mounting
- For cabinet widths of (mm): 800/900 and 1000
- Internal cabinet height (mm): 530
- Internal cabinet depth (mm): 490
- For door widths (mm): 400 and 500/600
- Max. load bearing capacity:
- - Front basket: Max. 4.5kg per basket
- - Rear basket: Max. 5kg per basket
- Right handed
Please note:
- Cabinet and door front are not included
| Manufacturer | Hafele |
|---|---|
| Pull Out Model | Hafele Pull & Swing |
| Installed Height Range | 530 |
| Cabinet Width (mm) | 800, 900, 1000 |
| Cabinet Door Width (mm) | 400, 500, 600 |
| Handing | Right |
| Built-in Depth (mm) | 490 |
| Basket Style | Linear Silver-painted Steel |
| Shelving / Basket / Tray - Material | Silver Painted Linear Wire |
| Soft Close | Yes |
| Door Style | Hinged Door Cabinets |
| Opening Style | Baskets Pull Out Together |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 4pm |
| Returns Status | Returnable in 14 days |
