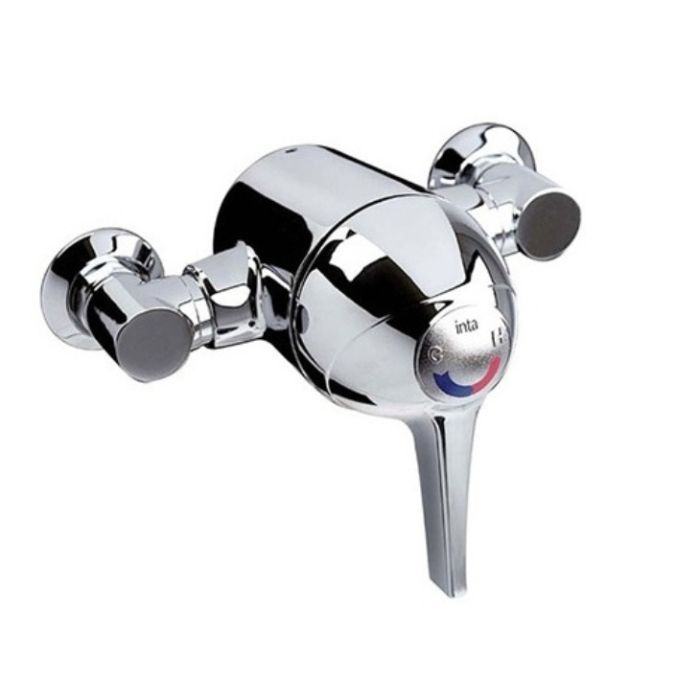

Inta Acura Exposed TMV3 Thermostatic Sequential Control Shower Valve (Bottom Outlet)

The Inta Acura exposed sequential shower control has been developed by adopting the principles of inclusive design, with a long lever for users with a limited hand dexterity.

As a result, the Acura delivers a shower which is suitable for any user, regardless of their sight or dexterity.

Giving you the best of both worlds, the Acura offers the ultimate balance between performance and design.

Key benefits:

• Sequential control shower valve for combined control of temperature and flow
• The shower valve has a bottom outlet ½” male shower connector, suitable for use with a flexible hose and riser rail kit
• Single piece thermal cartridge technology
• Fail safe on hot and cold supplies
• Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems
• Doc M Compliant
• Chrome finish

Safety features:

• Anti-scald - thermostatic cartridge doesn't allow the water to get hot enough to scald

Approvals:

• TMV3 scheme approved (HP only)
• WRAS approved

Technical details:

• Max inlet pressure (static): 10 bar
• Min inlet pressure (dynamic): 0.2 bar
• Max inlet temperature: 85°C
• Factory set at 41°C to prevent scalding, with temp stop
• Temperature Stability: +/-2°C
• Inlet connections: 15mm compression elbows
• Outlet bottom connection: G ½" BSP
• Min temperature differential to achieve failsafe: 10°C
• Max inlet pressure Ratio: 5:1

Warranty:

• 5 year manufacturer warranty

Please note:

• With flexible hose kits, where the handset is capable of falling within 25mm of the top of the shower tray, additional backflow prevention devices may be required
