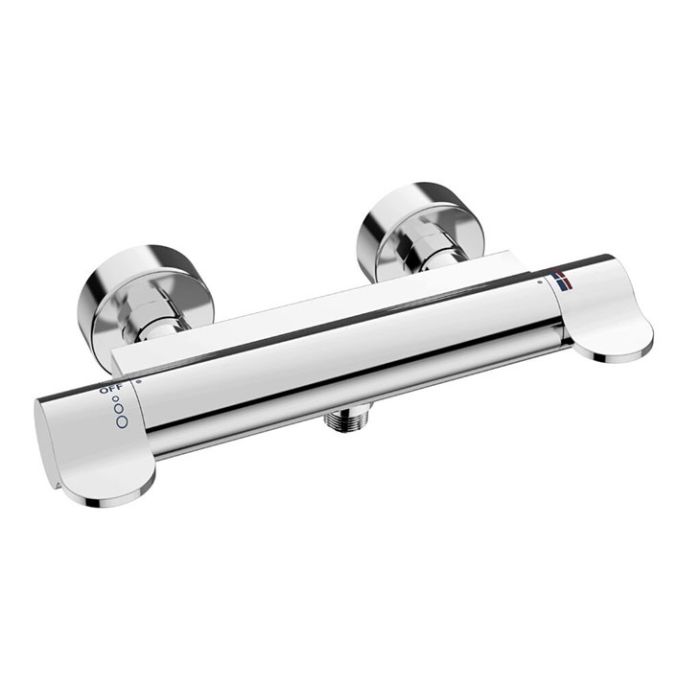

Inta Acura Safe Touch Thermostatic Bar Shower TMV3
Thermostatic bar shower with paddle handles for accessible operation. TMV3 and WRAS approved, with Safe Touch body and anti-scald cold water fail-safe technology. From the Inta Acura range, with G ½" bottom outlet for a flexible shower hose connection (not included).
The Inta Acura Safe Touch Thermostatic Bar Shower is a TMV3 and WRAS approved thermostatic shower valve designed for safe, accessible showering in domestic, healthcare and care environments.
Designed with paddle-style handles to aid operation for users with limited dexterity, the shower provides independent control of water temperature and flow. The thermostatic cartridge maintains a stable mixed water temperature, while anti-scald cold water fail-safe technology provides additional protection should the water supplies be interrupted.
The Safe Touch shower body is designed to remain cooler during operation, helping to reduce the risk of accidental contact with a hot valve body.
The Acura shower complies with NHS D08 and BS 7942 requirements and is suitable for use with a range of plumbing systems, including combination boilers, unvented supplies, gravity systems and mains pressure systems.
Key benefits:
- Paddle handles to aid operation for users with limited dexterity
- Independent control of temperature and water flow
- Thermostatic temperature control
- Anti-scald cold water fail-safe technology
- Safe Touch shower body
- Temperature stability of ±2°C
- Factory pre-set temperature of 41°C with maximum temperature stop
- Fast-fix mounting brackets
- Wide range of compatible riser kits available
Approvals and compliance:
- TMV3 approved
- WRAS approved
- Complies with NHS D08
- Complies with BS 7942
Technical details:
- Product code: ST10010CP
- Maximum inlet pressure (static): 5 bar
- Minimum inlet pressure (dynamic): 0.2 bar
- Maximum inlet temperature: 85°C
- Factory pre-set temperature: 41°C with maximum temperature stop
- Temperature stability: ±2°C
- Maximum inlet pressure ratio: 5:1
- Minimum temperature differential between hot inlet and mixed outlet to achieve cold water fail-safe: 10°C
- Inlet centres: 150 mm
- Valve width: 292 mm
- Connections: G ½"
Suitable plumbing systems:
- Combination boilers
- Unvented mains pressure systems
- Pumped systems
- Gravity systems
| Manufacturer | Inta |
|---|---|
| Shower Type | Direct Fed (Mixer) |
| Shower Features | Thermostatic Mixers |
| Fixings | Exposed |
| Control | Manual Lever |
| Water Pressure | Low, Normal Mains, High Pressure Systems |
| Technologies | Thermostatic Control, Fail Safe on Hot & Cold Supplies, Exposed Bottom Entry, TMV a Recommended Extra |
| Approvals | WRAS Approved, TMV3 (Healthcare Sector) |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 1.30pm |
| Returns Status | Returnable in 14 days |
