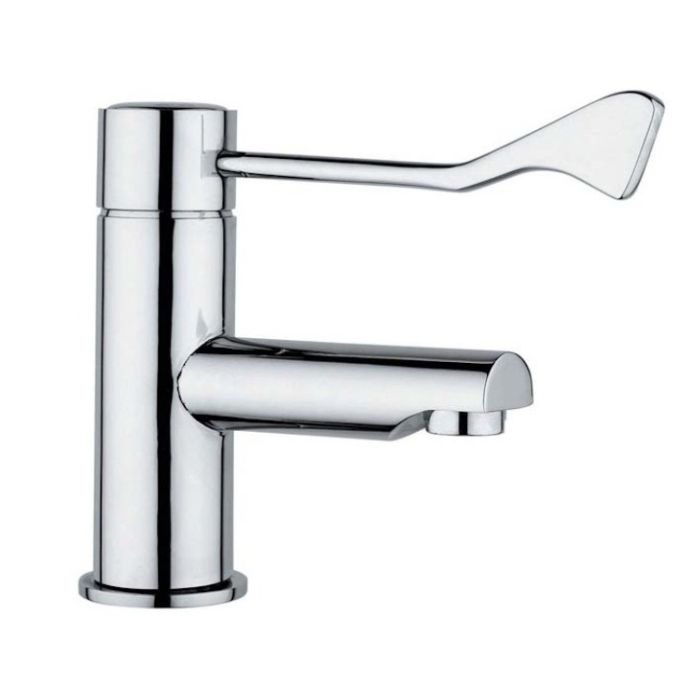

Inta Contemporary Sequential Tap

This single lever sequential spray mixer tap will provide a spray of water, giving cold to hot with 180 degrees of movement of the lever handle via a ceramic disc cartridge.

A flow regulating device incorporated within the outlet nozzle provides a maximum flow of 3.6 l/m at a pressure of 0.5 bar. For pressures under 0.5 bar the limiter insert may need to be removed to effect a suitable spray pattern. (See installation instructions for more information).

The extended lever allows the user to operate the tap with their elbow preventing contamination.

.

Key benefits:

• 170mm Extended lever is ideal for applications where hygiene is important
• Smooth sequential lever operated control
• Extended lever for users with limited dexterity or to avoid contact with hands
• The smooth operation of the reinforced cartridge ensures strength and durability
• Reinforced cartridge for heavy duty use

Technical details:

• Hot and cold water indicators located on head of tap
• Min operating pressure (with outlet flow limiter) : 0.5 bar
• Min operating pressure (without outlet flow limiter) : 0.1 bar
• Max operating pressure: 5 bar
• Flow rate (with outlet flow limiter, pressure above 0.5 bar): 3.6 l/m
• Flow rate (with outlet flow limiter removed pressure at 0.1 bar): 2.0 l/m
• Max basin thickness: 45mm
• Connections: 10mm ∅ chromed copper tails

Warranty:

• 1 year manufacturer warranty

Note:

• In order to prevent scalding, the hot watwer tap should be connected to the hot water supply via a thermostatic mixing valve (TMV)
