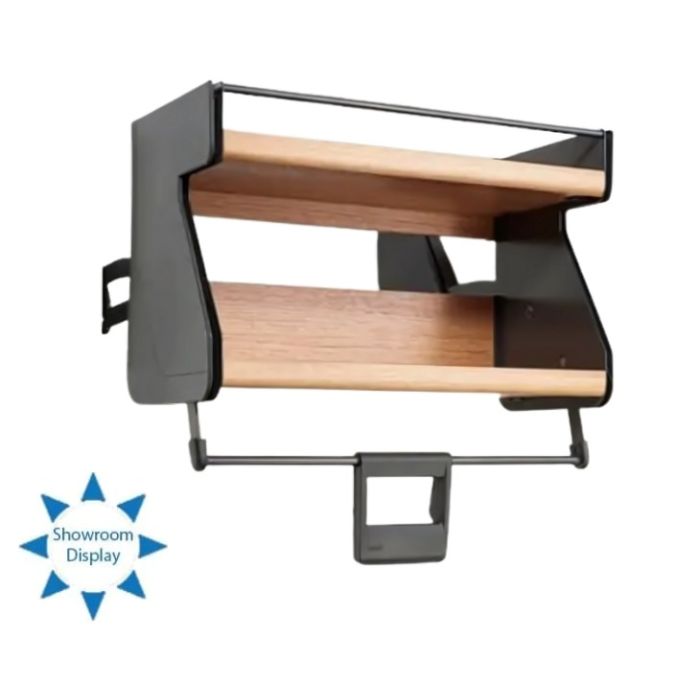

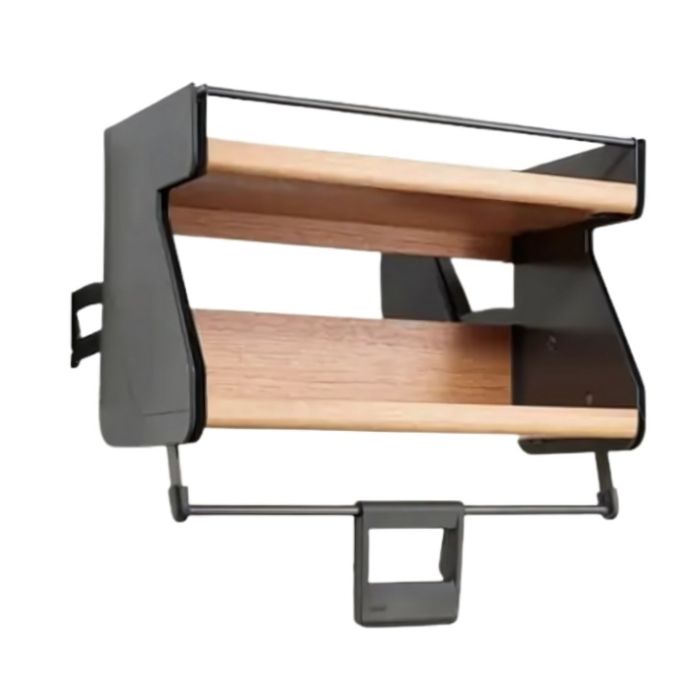

Kessebohmer iMove Pull-down Shelves, 600mm Wall CAB 2 Tier - Anthracite/Oak

The Kesseböhmer iMove is a stylish pull-down storage system designed to make better use of space within high wall cabinets. Its sleek, minimal design allows stored items to be brought down to a more comfortable and reachable level for a standing user.

This 600 mm version features two storage trays with a combined Anthracite and Oak finish. A grab handle positioned beneath the lower tray allows the iMove to be pulled down, lowering the trays by 340 mm from their stored position.

Please note: The Kesseböhmer iMove is designed to improve access for standing users and is not designed for use by people in a seated position.

Key benefits:

• Two-tier pull-down storage system for high wall cabinets
• Brings stored items down by 340 mm to make high-level storage easier to reach for standing users
• Grab handle positioned beneath the lower tray
• Concealed hinges provide a clean and minimal appearance
• Metal construction with an Anthracite and Oak finish
• Optional extension handle available to increase the reach range
• Optional extension handle dimensions (mm): 300 x 124 x 15

iMove Lock Function:

• To reach the lowest loading position, the user moves the fitting beyond a point of resistance
• The mechanism then engages and remains in the lowered holding position
• The holding force is factory set at the lightest level
• If the unladen trays disengage from the holding position, the holding force can be increased using the adjustment switch
• Adjusting the holding force does not increase or alter the permitted maximum load

Technical details:

• Number of trays: 2
• Suitable wall cabinet width (mm): 600
• Minimum clear internal cabinet depth (mm): 267
• Installation height within cabinet (mm): 595
• Tray drop-down height / minimum clearance required above worktop (mm): 340
• Tray width (mm): 556
• Maximum load per tray (kg): 4
• Finish: Powder coated
• Materials: Metal and Oak wood
• Colour / finish: Anthracite / Oak

Installation notes:

• The wall cabinet must be securely fixed to the wall
• Some physical effort is required to pull the iMove down, particularly when the trays are empty
• The drilling pattern supplied with the product must be followed during installation; failure to use the specified drilling pattern may cause fitting issues
• For cabinets fitted with a door, 110° hinges are recommended to provide unobstructed movement of the mechanism
• 110° hinges are not included

Warranty:

• 10-year Kesseböhmer manufacturer warranty
