590–1000mm
The compact Manulift range for smaller accessible worktop sections, preparation areas and more concentrated sink or hob layouts.
Granberg Manulift 6350HA - Winding Handle - For sinks & hobs
Height Adjustable Worktops
Granberg Manulift 6350HA - Winding Handle
A wall-mounted manual worktop lift with precise stepless height adjustment by folding winding handle, designed for accessible sink, hob, preparation and drawer configurations without an electric lifting motor.
Winding-handle operation
300mm stepless adjustment
100kg load
103mm HA front
Watch the winding-handle adjustment
590–1000mm
Compact
1001–1800mm
Medium
1801–2400mm
Long
Manual adjustment without fixed height steps
Wind the worktop to the height you actually want
The Manulift 6350 takes a different approach from both an electric worktop lift and Granberg's gas-assisted Manulift 6380. Its height is controlled mechanically using a folding crank handle.
Turning the handle moves the complete worktop smoothly through its 300mm adjustment range. Because there are no predetermined height positions, the worktop can be stopped wherever it is most comfortable within the available range.
That makes the 6350 useful where powered adjustment is not required but a more precise manual system is preferred to a worktop that can only be repositioned at defined intervals.
Choosing the product
Three ordering ranges. Your lift is made to the required width.
Select the product whose width band contains the finished size required for the moving worktop, then enter the exact width when configuring the product.
1001–1800mm
A versatile middle range with more room to combine preparation space with a shallow sink, hob or integrated drawer arrangement.
1801–2400mm
The longest Manulift 6350 configuration for a substantial straight adjustable worktop run.
The defining feature

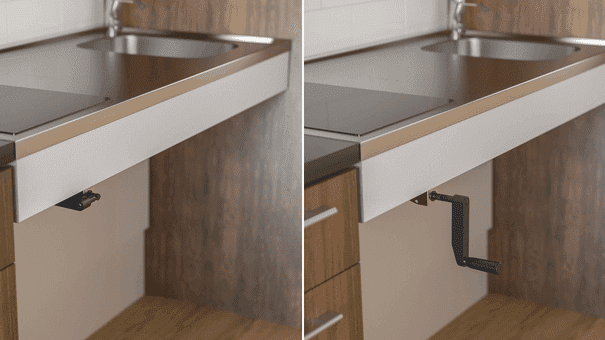

A folding crank replaces the electric motor
The Manulift 6350 is adjusted by turning a permanently attached cranked winding handle. The mechanical system raises or lowers the worktop progressively, giving precise control over its final position.
When specifying the lift, the handle can be positioned on either the left or right side to suit the kitchen layout and intended operating position.
The folding design also keeps the handle connected to the lift rather than relying on a removable crank that needs to be stored separately.
Left or right hand
Choose the operating side when configuring the lift.
235mm inset
The handle position is inset from the selected worktop end.
Stepless positioning
Stop at any appropriate point within the 300mm height range.
The folding winding handle gives direct mechanical
control over the height of the complete worktop.
Granberg's two manual approaches
Manulift 6350 or Manulift 6380?
Both provide 300mm of manual height adjustment, but the way that adjustment happens is fundamentally different. Choose according to how often the height will change and how precisely it needs to be positioned.
Manulift 6350
Turn the folding crank to raise or lower the worktop. Adjustment is stepless, so the surface can be stopped at the preferred height.
Crank
Winding-handle operation
Stepless
No fixed height intervals
300mm
Total adjustment
100kg
Maximum distributed load
Manulift 6380
The worktop is manually repositioned with assistance from gas springs, then secured using locking positions. It is particularly suited to planned, infrequent changes.
Gas assisted
Manual repositioning
25mm
Height increments
300mm
Total adjustment
HA / LA
Two front configurations
Core Manulift specification
The same fundamental mechanism across all three widths
The product range changes by worktop width, while the principal adjustment range, frame geometry and load capability remain consistent.
Adjustment
Stepless manual movement.
Frame height
Millimetres, excluding worktop.
Maximum load
Distributed across the system.
Front height
HA compartment frame.
Frame depth
Millimetres from the wall.
Worktop depth
Recommended millimetre range.
The 103mm HA frame creates space for compatible sinks,
drawers and cooking functions within the moving surface.
More than a simple preparation worktop
The 103mm HA frame can carry real kitchen functions
The deeper HA compartment frame gives the Manulift more integration space beneath the worktop than a slimline manual system.
Its internal supports can be moved sideways and adjusted to suit the worktop arrangement, helping accommodate appropriate shallow sinks, drawers, hobs and other components.
Granberg specifies shallow sink bowls up to 120mm deep for integration with the system. Plumbing connections must remain flexible so they can follow the worktop through its full movement.
Shallow sink
Compatible bowl depth up to 120mm.
Cooking hob
Plan the hob position around the adjustable frame.
Drawer integration
The 103mm compartment provides additional usable depth.
Optional facia
The front can be finished as part of the wider kitchen design.
Before ordering
Plan the manual worktop as a complete moving installation
The lifting mechanism may be manual, but sinks, hobs, plumbing, clearances and surrounding cabinetry still need to accommodate the complete 300mm movement.
Confirm the finished width
Choose the catalogue range that contains the exact worktop width required.
Check the wall structure
The 6350 is wall mounted, so suitable structural fixing must be established before installation.
Choose the handle side
Position the folding crank where it can be reached without conflicting with adjacent kitchen elements.
Maintain side clearance
Allow 5mm between the moving worktop and adjoining cabinet or wall surfaces.
Plan plumbing for movement
Sink services must use appropriate flexible connections throughout the full adjustment range.
Coordinate tiles & finishes
Account for the 15mm rear allowance and the changing relationship between the worktop and wall finish.
Need help configuring the Manulift around a sink or hob?
Send us the required worktop size, room plan, proposed sink or hob position and intended handle side and we can help check the layout before ordering.
Try the manual adjustment for yourself
See the Manulift 6350 in our showroom
Granberg Kitchen Three includes working examples of both Granberg manual worktop systems, making it particularly useful if you want to compare the winding-handle 6350 directly with the gas-assisted 6380.
Continue exploring
Understand manual worktop adjustment before you choose
What Is a Worktop Lift?
Learn how adjustable kitchen worktops work, what they can carry and how they can support seated, standing and multi-user kitchens.
Read the worktop-lift guide →What Is a Manual Worktop Lift?
Compare winding-handle and gas-assisted systems, understand when manual adjustment makes sense and where electric operation may be more appropriate.
Read the manual worktop guide →Granberg Manulift 6380
Need occasional planned adjustment rather than a winding handle? Compare the gas-assisted Manulift 6380HA and 6380LA systems.
Compare the Manulift 6380 →
Made by Granberg
Accessible kitchen engineering from Sweden
Manulift forms part of Granberg's broader accessible kitchen range, alongside electric worktop lifts, height-adjustable islands, wall-cabinet systems, shallow sinks and specialist storage.
Explore Granberg →Manual worktop design & specification support
Is a winding-handle worktop the right solution for your kitchen?
Send us the worktop dimensions, wall construction, intended sink or hob layout and preferred crank position. We can help check the Manulift 6350 specification and compare it with gas-assisted or electric alternatives where useful.
Granberg Manulift 6350HA - Winding Handle - For sinks & hobs
-
Granberg Manulift 6350HA Cranked Winding Handle, Wall, 103mm Front - 590-1000mmProduct Code: 6350HA-059100Email for Quote
Made to order
1-2 weeks
-
Granberg Manulift 6350HA Cranked Winding Handle, Wall, 103mm Front - 1001-1800mmProduct Code: 6350HA-109180Email for QuoteMade to order
1-2 weeks
-
Granberg Manulift 6350HA Cranked Winding Handle, Wall, 103mm Front - 1801-2400mmProduct Code: 6350HA-189240Email for QuoteMade to order
1-2 weeks
