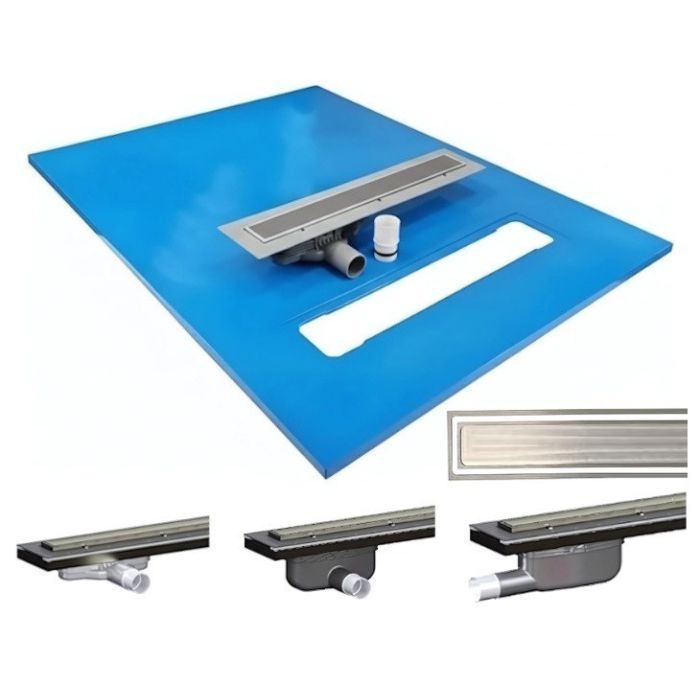

Maxxus Linear Former, Microcement Wetroom Kit with Purus Living Linear Drain, Silver Grid - Choice of Size

Maxxus linear shower deck with an adapted Purus Living linear channel drain for wet rooms with a microcement floor finish. Silver grid that creates a 3 mm upstand.

Available in a range of sizes, the Purus gully outlet can be either low side, side or end parallel (side side).

Key benefits:

• For microcement flooring
• Material Tanking Collar
• Suitable for timber and concrete floors
• Strong and durable base yet only 22 or 24 mm thick - refer to plan drawings for information
• Vacuum formed GRP
• Made from 50% recycled materials and is 100% recyclable
• Solid right through - no pockets or hollow cavities
• Creates a level access floor with no step
• Built in gradients for water removal to the waste
• Accepts 470kg (75 stone) loading over 400 mm joist centres
• Self-supporting - no requirement for additional support underneath
• Removable sprung NOOD water trap
• The NOOD no-odour water trap which will not allow any foul air to escape even if the gully dries out
• Brushed Grey aluminium grid that creates a 3 mm upstand
• Choice of size

Installation:

• May be trimmed down to any size
• Fast 1 hour install - laid straight on joists no under boarding needed
• Totally flat underside and recessed screw holes allow for easy fixing
• No release agent to inhibit bonding of the microcement floor

Includes Purus Living Linear drain with three outlet types with Purus NOOD traps:

• 600 mm or 800 mm lengths depending on the floor former size
• Plastic-bodied unit
• Choice of three gully outlets each with a ABS pipe reducer 2” to 1½” (50 mm to 40 mm):
• - Low Side Outlet up to 32 ltr/min flow rate - depth (mm): 52
• - End Parallel Outlet up to 72 ltr/min flow rate - depth (mm): 105
• - Side Outlet up to 72 ltr/min flow rate - depth (mm): 105
• Please select above
• Note: Download PDF installation instructions for more information

Grid technical detail:

• Adaptor grid for Purus Living Linear drain for use with microcement floor finishes
• Manufactured from high grade anodised aluminium with a Silver finish
• Creates a 3 mm upstand
• Designed and manufactured by Wetroom Innovations Ltd

Warranty:

• Maxxus floor formers come with a 25-year manufacturer guarantee

Manufacturer product codes:

• MC983SL, MC988SL, MC984SL, MC987SL, MC985SL, MC989SL, MC986SL, MC981SL, MC982SL

Please note:

• The Microcement flooring materials and tanking kit are not included
