Maxxus Vinyl Wetroom Kit – Tray & Drain - Multiple Sizes & Grids

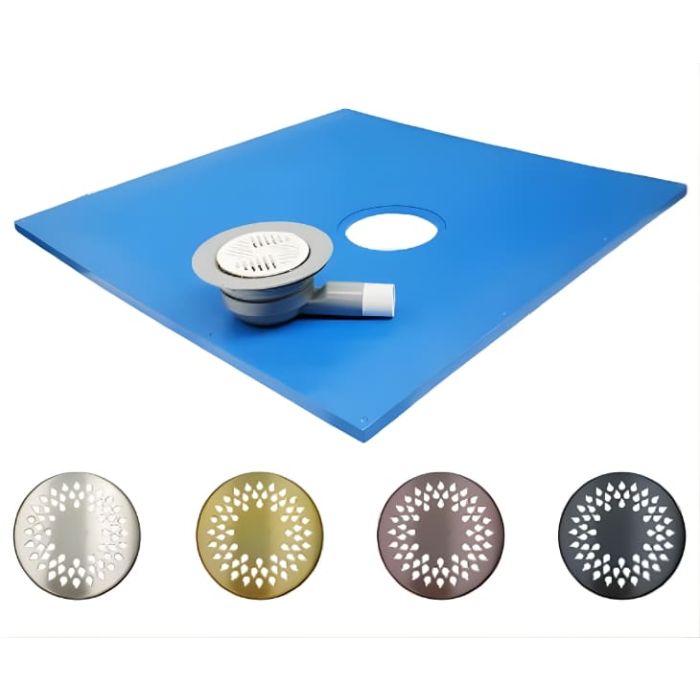

The Maxxus Vinyl Wetroom Kit is a complete solution for creating a level access wet room floor with vinyl finishes, combining a strong 22 mm floor former with an integrated Purus Minimax drain. Suitable for both timber and concrete floors, it features built-in gradients for effective drainage, a flat underside for easy installation, and a clamping ring to ensure a secure, watertight vinyl finish. Self-supporting and capable of supporting up to 470 kg, it offers a durable and practical option for both domestic and commercial wet room installations, with a choice of sizes and grid finishes to suit your design.
Designed for both timber and concrete floors, the Maxxus tray is manufactured from vacuum-formed GRP and is just 22 mm thick, providing a strong yet low-profile solution. With a flat underside and offset waste position, it is quick to install and easy to position on site. Built-in gradients ensure effective drainage, while the surface is designed to bond directly with vinyl flooring systems.
The MV version includes a Purus Minimax two-part waste with a clamping ring specifically designed for vinyl installations, ensuring a secure, watertight finish. A 130 mm Art Deco grid is supplied as standard, with a range of upgrade options available to suit your design preferences.
Key benefits:
- Complete wetroom kit for vinyl floor finishes
- Includes clamping ring for secure vinyl installation
- Suitable for timber and solid floors
- Strong, durable floor former at just 22 mm thickness
- Manufactured from vacuum-formed GRP
- Made from 50% recycled materials and 100% recyclable
- Solid construction with no hollow cavities
- Creates a level access, step-free wetroom floor
- Built-in gradients for efficient water drainage
- Supports up to 470 kg load capacity
- Self-supporting with no under-boarding required
- Can be trimmed to size on site
- Includes Purus Minimax two-part gravity or pumped waste
- Supplied with standard white 130 mm Art Deco grid
- Optional upgrade to stainless steel and coloured grid finishes
- Available in multiple sizes
Installation:
- Flat underside and recessed screw holes for secure fixing
- Offset waste allows flexible positioning during installation
- No release agent, ensuring strong bonding with adhesives and vinyl
- Designed for fast installation on timber or concrete floors
Purus Minimax two-part waste:
- Gravity or pumped horizontal wetroom waste (Product Code: 52719)
- Includes Purus NOOD no-odour water trap to prevent foul air escape
- Projects only 80 mm below the Maxxus tray
- 47 litres per minute flow rate
- 40 mm solvent weld outlet
- Supplied with 130 mm white plastic Art Deco grid as standard
Optional grid upgrades (130 mm diameter):
- Grey ABS plastic Art Deco grid (Product Code: 7130066)
- Black ABS plastic Art Deco grid (Product Code: 7130060)
- Lockable stainless steel Wave design grid (Product Code: 7138394)
- Push-fit stainless steel Drop design grid (Product Code: 7138392)
- Brushed brass coloured Drop design grid (Product Code: 7138392BB)
- Bronze coloured Drop design grid (Product Code: 7138392BZ)
- Black coloured Drop design grid (Product Code: 7138392MB)
Warranty:
- 25 year manufacturer guarantee
Manufacturer product codes:
- MV934, MV930, MV931, MV941, MV929, MV936, MV932, MV935, MV1411, MV933, MV942, MV1808
FAQs:
- Is this wetroom kit suitable for vinyl flooring? Yes, this version includes a clamping ring specifically designed for secure vinyl floor installations.
- Can this be installed on timber floors? Yes, it is suitable for both timber and concrete subfloors.
- Does the tray require additional support? No, the Maxxus tray is self-supporting and does not require under-boarding.
- What is the flow rate of the waste? The Purus Minimax waste provides a flow rate of 47 litres per minute.
- Can the tray be cut to size? Yes, it can be trimmed on site to suit your layout.
| Manufacturer | Maxxus |
|---|---|
| Brand / Model | Maxxus |
| Size (mm) | 900x900, 1000x1000, 1135x770, 1200x800, 1200x900, 1200x1200, 1300x800, 1400x900, 1450x1150, 1500x800, 1650x900, 1800x800 |
| Floor Former Thickness (mm) | 22 |
| Grid / Grate Finish | Not Applicable |
| Waste Option / Floor Finish | Purus Minimax 2-part Gravity / Pumped - Vinyl |
| Floor Finish | Vinyl Flooring |
| Optional Waste Type | Gravity Waste, Pumped Waste |
| Flow Rate / l/min | 47 |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 1.30pm |
| Returns Status | Returnable in 14 days |
