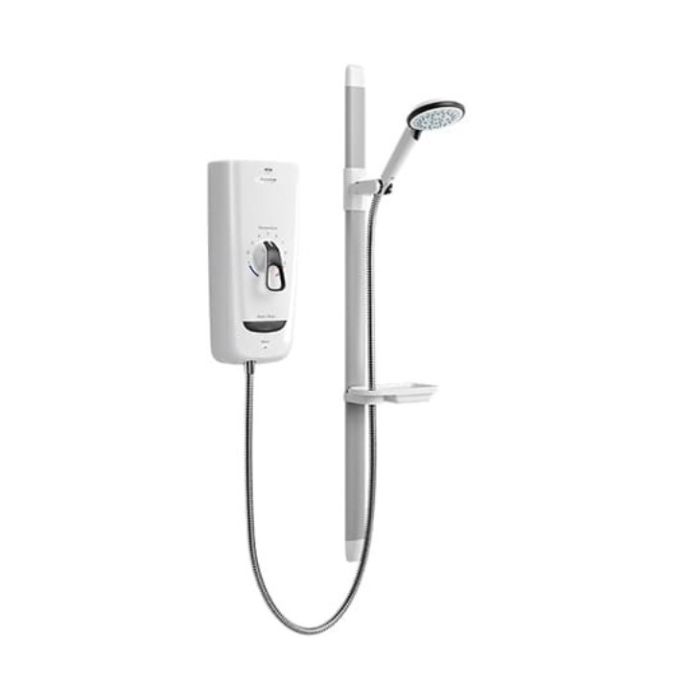

Mira Advance ATL Flex Electric Shower - 8.7kW

The new Mira Advance ATL Flex is an electric shower designed to provide enhanced safety, accessibility and ease of use.

Electronic thermostatic temperature control, phased shutdown and multiple maximum temperature settings help provide a safer and more consistent showering experience, while high-contrast controls, audible feedback and tactile features support users with visual impairments.

Mira Clearscale™ Pro technology is included as standard to help reduce limescale build-up, while the 1000 mm riser rail, 2000 mm flexible hose and easy-to-use showerhead holder provide additional flexibility for a wide range of users.

Key benefits:

• Electronic thermostatic temperature control
• Factory-set maximum temperature settings from 41-48°C
• Phased shutdown flushes hot water from the tank to help make the shower safer for the next user
• Mira Clearscale™ Pro technology helps reduce limescale build-up by up to 50%
• Easily accessible controls with high contrast on critical touch points
• Audible and tactile features to assist visually impaired users
• Audible beeps when switching the shower on and off and when the desired temperature is reached
• Audible clicks when adjusting the temperature dial
• Four selectable maximum temperature settings
• Anti-glare matt finish control panel
• 1000 mm riser rail
• 2000 mm flexible shower hose
• 110 mm diameter showerhead with three spray modes: Coverage, Soft and Task
• Rub-clean showerhead nozzles
• Extra-long slide bar with friction-grip showerhead holder
• Hose retaining ring - see the Water Backflow image in the image gallery for further information
• Soap dish included
• Designed and manufactured in the UK

Technical details:

• Hose length (mm): 2000
• Riser rail length (mm): 1000
• Output (kW): 8.7
• Supply voltage: 230 V +10%
• Supply rating: 40 A
• Terminal block connections: Maximum 16 mm²
• Cable entry points: Right side - rising, falling or rear
• Water supply: Mains pressure cold water feed
• Water entry points: Right side - rising, falling or rear with an elbow
• Inlet connections: 15 mm compression
• Outlet connection: ½" BSP male
• Minimum maintained pressure: 0.5 bar, equivalent to 5 metre head
• Minimum maintained pressure for BEAB Care: 1.0 bar
• Maximum maintained pressure: 5.0 bar, equivalent to 50 metre head
• Maximum static pressure: 10.0 bar, equivalent to 100 metre head

Approvals:

• WRAS Approved
• KIWA UK Approved
• BEAB Care Approved
• BEAB Approved
• RNIB Approved - Gold Award

Manufacturer warranty:

• Shower: 2-year manufacturer warranty
• Fittings: 1-year manufacturer warranty

Please note:

• The Mira Advance Flex replaces the discontinued Mira Advance ATL Flex 9.0 kW, Product Code: 1.1643.005
