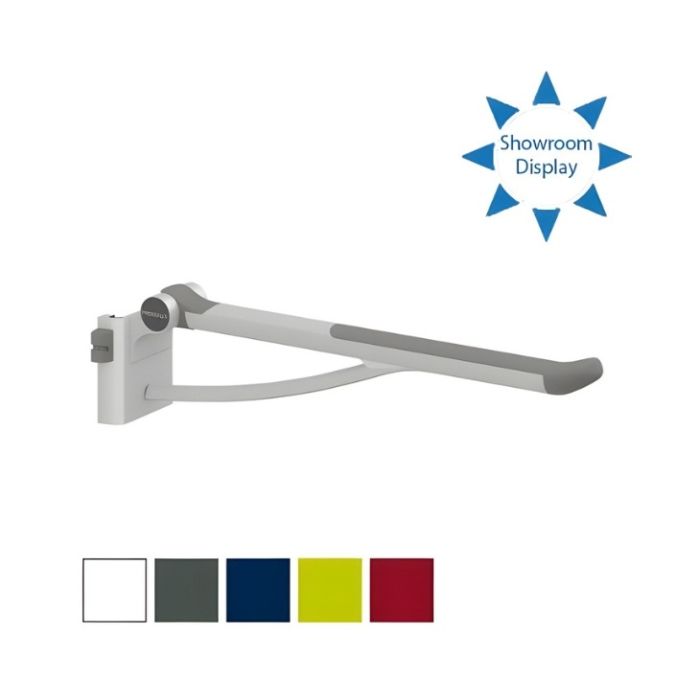

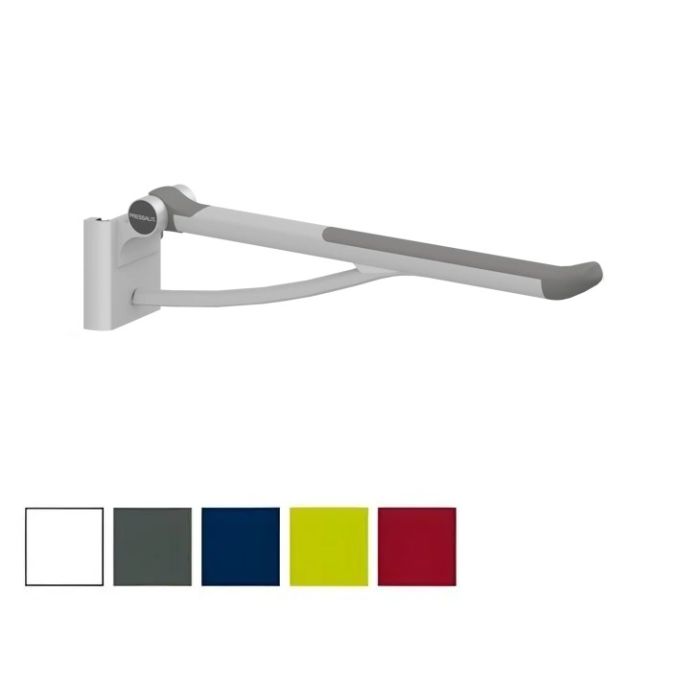

Pressalit PLUS 700mm Counterbalanced Support Arm – LH Operated for SELECT & PLUS VERT Tracks, Choice of Colour

PLUS counterbalanced support arm, foldable, with an actual length of 700 mm. The ergonomically shaped arm provides a clear sense of where the support arm ends and is designed to provide secure support when sitting down, standing up or transferring sideways from a wheelchair.

The support arm is vertically adjustable when fitted to the Select side profiles positioned either side of compatible manual and electric toilet lifters. It is also suitable for use with left-hand operated grooved PLUS vertical wall tracks in 210 mm and 400 mm lengths.

The oval-shaped arm provides a comfortable surface to lean or push against. The enlarged end section makes the arm easier to pull forward from a seated position, while the counterbalanced mechanism helps prevent uncontrolled movement.

This support arm is supplied with the vertical track bracket only. It must be mounted onto a compatible PLUS vertical wall track, which is not included, or onto the left side profile of a compatible Pressalit SELECT Toilet Lifter.

Suitable for use with toilet pans projecting approximately 540–550 mm.

Key benefits:

• Suitable for left-hand operated Pressalit PLUS grooved vertical wall tracks in 210 mm and 400 mm lengths
• Compatible with the left side profile of Pressalit SELECT Toilet Lifters
• 700 mm actual support arm length
• Left-hand grip lock operation
• Counterbalanced mechanism helps prevent the support arm moving unless guided up or down
• Can be folded upwards when not in use to create more usable room space
• Ergonomic grip suitable for users with reduced hand strength
• Soft, slip-resistant gripping surface with a warm feel
• Oval-shaped arm provides a comfortable surface for leaning and pushing against
• Enlarged end section makes the arm easier to pull forward from a seated position
• Designed to provide a clear sense of where the support arm ends
• Underside shaped to allow compatible accessories to be fitted
• Suitable for indoor wet environments including bathrooms and washrooms
• Suitable for private homes, care homes, nursing homes and hospitals
• Doc M compliant
• Available in a range of colours

Counterbalanced mechanism:

• Helps prevent the support arm moving unless it is deliberately guided up or down
• If positioned at an intermediate angle, such as approximately 45°, the arm will remain in position until it is moved again

Technical details:

• Total projection from wall including vertical wall track, not included (mm): 730
• Actual support arm length (mm): 700
• Top of rail distance from wall or face of Select side profile when folded (mm): 53
• Inner grab distance from wall or face of Select side profile when folded (mm): 68
• Total arm projection from wall or face of Select side profile when folded (mm): 220
• Track bracket width (mm): 128
• Track bracket height (mm): 150
• Left-hand push-button lock for use with compatible grooved track
• Suitable toilet pan projection (mm): 540–550
• Maximum load (kg): 150
• Weight (kg): 2.79

Materials:

• Support arms primarily constructed from 10-micrometre anodised aluminium
• Non-slip gripping surface manufactured from soft SEBS with a glass-reinforced nylon core
• Hinge arm also manufactured from soft SEBS
• Internal components and fasteners primarily manufactured from stainless steel
• Hinge barrel capped with ABS polymer

Compatibility:

• Pressalit PLUS Wall Track, Grooved, 210 mm for Left-Hand Operated Support Arms - Product code: R9871112
• Pressalit PLUS Wall Track, Grooved, 400 mm for Left-Hand Operated Support Arms - Product code: R9873112
• Pressalit SELECT Toilet Lifters, manual and electric, wall and floor outlet versions, using the left side profile

Warranty:

• 5 year manufacturer warranty

Manufacturer product codes:

• R371370000
• R371370112
• R371370035
• R371370108
• R371370277

Former manufacturer codes:

• The Pressalit PLUS range has superseded several former Pressalit products
• This item has replaced: R3105, RF105, R3117, RF117, RF117000, RF117112, RF117026, RF117035, RF117108 and RF117277
• Please check for any changes to the current product specification when replacing an older model
• PLUS range products cannot be mounted onto older Pressalit wall tracks, and older Pressalit products cannot be mounted onto PLUS wall tracks
