Purus Line Vinyl Plus 1000 mm Linear Drain, Brushed Brass Coloured Chess Grid - Outlet Choice

Purus Line Vinyl Plus 1000 mm linear drain with a Brushed Brass coloured stainless steel Chess grid, designed for wetrooms with vinyl sheet flooring up to 3 mm thick.

Suitable for installation into concrete / screed floors and timber floors, with an integrated clamping frame designed to securely fix the vinyl sheet flooring around the drain.

Key benefits:

• 1000 mm nominal length linear drain
• 1030 mm overall channel length
• PP-bodied channel unit
• Removable sprung NOOD water trap
• NOOD no-odour water trap helps prevent foul air escaping even if the trap dries out
• Removable Brushed Brass coloured stainless steel Chess design grid
• Grid sits flush with the vinyl sheet flooring when correctly installed
• Integrated clamping frame securely fixes the vinyl sheet flooring around the drain
• Suitable for vinyl sheet flooring up to 3 mm thick
• Includes 2 x support legs for concrete / screed floor installation
• Choice of three NOOD waste outlet configurations

Technical details:

• Nominal drain length: 1000 mm
• Overall channel length: 1030 mm
• Overall width: 130 mm
• Grid length: 988 mm
• Grid width: 88 mm
• Channel depth: 21 mm, plus outlet depth as detailed below
• Grid loading: Class K3, maximum 300 kg
• Grid material: Stainless steel
• Grid finish: Brushed Brass coloured
• Grid design: Chess
• Maximum vinyl sheet flooring thickness: 3 mm

Waste options:

• Choice of three NOOD water trap outlets, each supplied with a push-fit ABS pipe reducer from 2" to 1½" (50 mm to 40 mm)

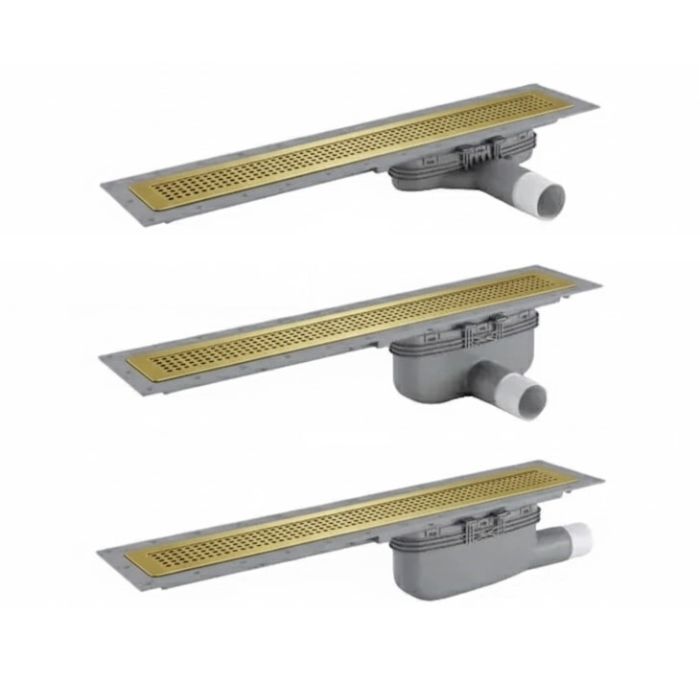

• Product Code 53328BB: Low Side Outlet - flow rate 30-36 litres/min - outlet depth / overall depth: 52 / 73 mm
• Product Code 53327BB: Side Outlet - flow rate 60-72 litres/min - outlet depth / overall depth: 105 / 126 mm
• Product Code 53329BB: End Parallel Outlet - flow rate 60-72 litres/min - outlet depth / overall depth: 105 / 126 mm
• Please select the required outlet configuration

Installation guidance:

• The minimum floor gradient should be 1:150 to ensure water flows towards the drain
• The gradient should generally be no steeper than 1:50 to help reduce the risk of slipping
• A nominal fall of approximately 2% is commonly used
• Do not install the drain on a raised platform; it is designed to be installed level with the surrounding finished floor
• Refer to the PDF installation instructions for full fitting guidance

Concrete / screed floor installation:

• Create suitable falls within the screed so water drains towards the channel
• Supplied with 2 x plastic support legs for setting the drain height and level before casting the concrete or screed
• Support legs provide an adjustable height from approximately 88-195 mm
• Refer to the PDF installation instructions for full installation details

Warranty:

• The Purus Line Vinyl Plus has a design life of 25 years when installed, used and maintained in accordance with the manufacturer's instructions and used with normal shower water

Manufacturer product codes:

• 53328BB, 53327BB, 53329BB
