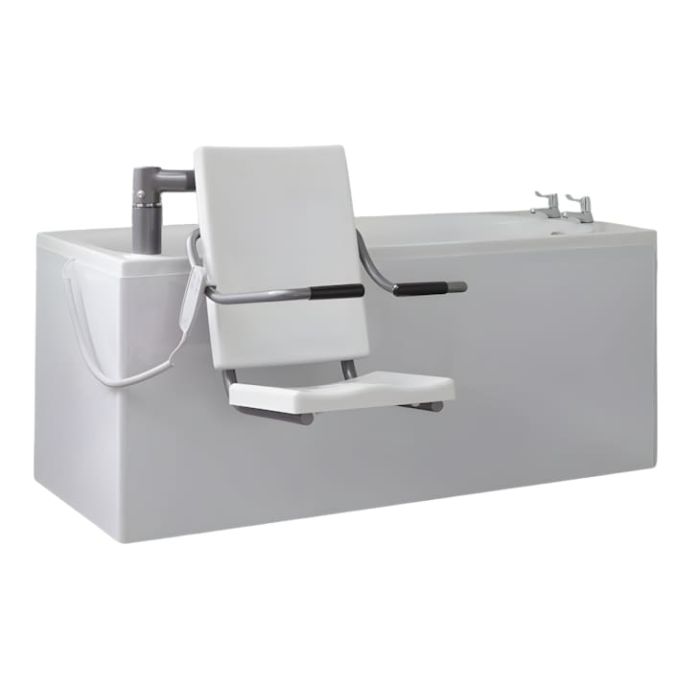

Renaissance Excel 300 Fixed Height Bath with Powered Swing Seat – Choice of Size & Waste

The Renaissance Excel 300 is a fixed height assisted bath with a powered swing seat, designed to provide safe, controlled transfers for users who require support getting into and out of the bath.

The powered seat lifts, rotates and lowers the bather into the bath, then reverses the movement to assist with a safe exit. This reduces manual handling for carers while supporting independence and dignity for the user.

Its fixed height design makes it a practical solution for domestic bathrooms, care homes and multi-user environments where reliability and ease of use are essential.

Key benefits:

• Fixed height bath with powered swing seat
• Supports safe and controlled transfers in and out of the bath
• Reduces manual handling and carer strain
• Electrically operated with emergency battery backup in case of power failure
• Removable seat insert for improved hygiene and easier cleaning
• Robust construction suitable for domestic and care environments
• Choice of bath size, waste position and left or right-hand seat configuration
• Bath height: 720mm
• Safe working load: 24st / 150kg
• Acrylic bath shell, manufactured in the UK, CE compliant

Available sizes & configurations:

• 1700 x 750mm – End or centre waste
• 1800 x 800mm – End waste
• Left or right-hand swinging seat options

Handset:

• Simple and intuitive operation
• “Seat in” lifts, rotates and lowers the user into the bath
• “Seat out” lifts, rotates and lowers the user to the transfer position
• Movement stops immediately when the button is released

Panel options:

• Full front panel or hoist access front panel available
• Front panel cut-out for hoist access (mm): 1030 L x 150 H
• Optional rear and end panels available

Tap options, supplied fitted and plumbed:

• Pair of lever taps with underbath TMV3 valve – WRAS approved
• Bath filler with underbath TMV3 valve – WRAS approved
• TMV2 bath/shower mixer – suitable for domestic installations
• Bath/shower mixer with top-fixing shower and underbath TMV3 valve – WRAS approved
• If taps are not selected, the bath will be supplied undrilled

Shower option:

• TMV3 shower system CAT5 Fluid Safe (Shepherd’s Crook) recommended for commercial and multi-user environments
• Please note: bath filler not included with this option

Seat upgrades:

• Lap belt – provides additional user security
• Nursing arms – improve comfort and upper body support

Sensory options:

• Optional upgrades available to enhance comfort and relaxation during bathing

Optional Air Spa System:

• 12 jets integrated into the base of the bath
• Multiple massage intensity settings
• Simple push-button operation
• Automatic purge cycle dries the system after use

Optional Colour-changing Lights:

• Chromotherapy lighting system
• Manual mode for fixed colour selection
• Automatic mode cycles through colours for a calming bathing environment

Optional Bluetooth Wireless Sound System:

• Wirelessly connect to play music or audio
• Enhances relaxation and user experience

Delivery:

• Standard delivery – one person to kerbside
• Two-person delivery – to ground floor bathroom
• Please contact us for installations beyond ground floor or restricted access

Commissioning:

• Professional commissioning ensures correct installation and safe operation
• Recommended for all installations
• Essential for commercial environments to support LOLER compliance
• Ongoing service and maintenance packages available

Electrical requirements:

• 230V AC supply required
• Requires 30mA RCD and 4A waterproof switched fused spur (not supplied)
• Supplied with UK 3-pin plug for testing only – must be hardwired on installation
• Battery backup requires continuous power supply
• All electrical work must be carried out by a qualified electrician

Warranty:

• 12-month warranty on mechanical and electrical components
• 25-year manufacturer guarantee on bath shell

Please note:

• Made to order – non-returnable once manufacturing has commenced
• Order confirmation form required prior to production

Manufacturer product codes:

• 1775XL3CLF, 1775XL3CLH, 1775XL3CRF, 1775XL3CRH, 1775XL3ELF, 1775XL3ELH, 1775XL3ERF, 1775XL3ERH, 1880XL3ELF, 1880XL3ELH, 1880XL3ERF, 1880XL3ERH
