Renaissance Excel 400 Height Adjustable Bath for Hoist Use – Choice of Size & Waste
Renaissance Excel 400 height adjustable assisted bath with 340mm lift range. Designed for hoist transfers with no seat required. Improves carer ergonomics and reduces manual handling strain. Available in multiple sizes with optional changing top, TMV tap and shower options, plus Air Spa, lighting and Bluetooth upgrades. Max load 185kg. Manufactured in the UK.

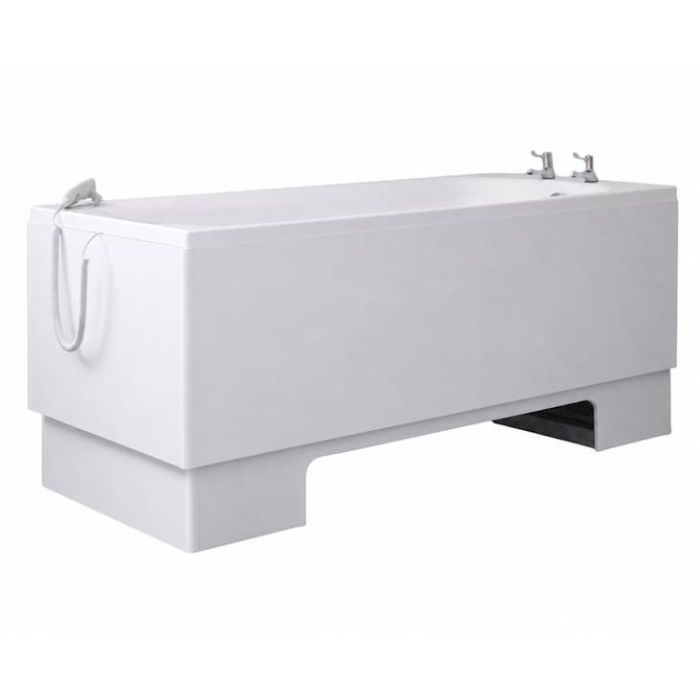

The Renaissance Excel 400 is a height adjustable assisted bath designed for environments where a seat is not required and transfers are carried out using ceiling track hoists, mobile hoists, slings or cradles.
With a smooth 340mm height adjustment range, the bath raises and lowers to suit the carer’s working height, helping to reduce strain and support safer manual handling during bathing.
Its open design provides clear access for hoist transfers, making it a practical solution for care homes, hospitals and accessible bathrooms where flexibility and safety are essential.
Key benefits:
Height adjustable bath with 340mm stepless lift range
Designed for use with ceiling track hoists, mobile hoists and slings
Improves carer ergonomics and reduces manual handling strain
Electrically operated with emergency battery backup in case of power failure
Choice of hoist access panels or full panels to suit installation
Supplied with front, rear and end panels
Bath height range: 720mm to 1060mm
Safe working load: 30st / 185kg
Acrylic bath shell, manufactured in the UK, CE compliant
Available sizes & configurations:
1700 x 750mm – End or centre waste
1800 x 800mm – End waste
Handset:
Simple and easy to use
“Bath up” raises the bath to a comfortable working height
“Bath down” lowers the bath after bathing
Movement stops immediately when the button is released
Optional luxury changing top (for hoist use):
Removable changing top designed for use with hoist transfers
Includes removable, machine washable mesh cover
Optional head and support cushions available
Available for both 1700 x 750mm and 1800 x 800mm bath sizes
Panel options:
Choice of hoist access panels or full front and rear panels
Front panel cut-out for hoist access (mm): 1030 L x 150 H
Designed to maximise flexibility for different installation requirements
Tap options, supplied fitted and plumbed:
Pair of lever taps with underbath TMV3 valve – WRAS approved
Bath filler with underbath TMV3 valve – WRAS approved
TMV2 bath/shower mixer – suitable for domestic installations
Bath/shower mixer with top-fixing shower and underbath TMV3 valve – WRAS approved
If taps are not selected, the bath will be supplied undrilled
Shower option:
TMV3 shower system CAT5 Fluid Safe (Shepherd’s Crook) recommended for commercial and multi-user environments
Please note: bath filler not included with this option
Sensory options:
Optional sensory upgrades available to enhance comfort and relaxation
Optional Air Spa System:
12 jets integrated into the base of the bath
Multiple massage intensity settings
Simple push-button operation
Automatic purge cycle dries the system after use
Note: air jets are surface mounted and not recessed
Optional Colour-changing Lights:
Chromotherapy lighting system
Manual mode for fixed colour selection
Automatic mode cycles through colours for a calming environment
Optional Bluetooth Wireless Sound System:
Wirelessly connect to play music or audio
Enhances relaxation and overall bathing experience
Delivery:
Standard delivery – one person to kerbside
Two-person delivery – to ground floor bathroom
Please contact us for installations beyond ground floor or restricted access
Commissioning:
Professional commissioning ensures correct installation and safe operation
Recommended for all installations
Essential for commercial environments to support LOLER compliance
Ongoing service and maintenance packages available
VAT Exemption is available on this product - deducted at Checkout (Info)
Renaissance Excel 400 height adjustable assisted bath with 340mm lift range. Designed for hoist transfers with no seat required. Improves carer ergonomics and reduces manual handling strain. Available in multiple sizes with optional changing top, TMV tap and shower options, plus Air Spa, lighting and Bluetooth upgrades. Max load 185kg. Manufactured in the UK.
Simply copy this text directly into your specification document...
Renaissance Excel 400 Height Adjustable Bath for Hoist Use – Choice of Size & Waste
Product code: EXCEL400
Renaissance Excel 400 height adjustable assisted bath with 340mm lift range. Designed for hoist transfers with no seat required. Improves carer ergonomics and reduces manual handling strain. Available in multiple sizes with optional changing top, TMV tap and shower options, plus Air Spa, lighting and Bluetooth upgrades. Max load 185kg. Manufactured in the UK.
The Renaissance Excel 400 with 340mm of height adjustment, helps to prevent carers from hurting their backs while assisting and washing client users. The bath does not feature a seat. Supplied with Full front and rear panels, this bath is designed for use with ceiling track hoists, slings and/or cradles. 1700x750mm with an end waste. Optional luxury mesh changing top with head and side supports. Tap and shower options with TMV2 and TMV3 temperature control. Optional 12 Jet Air Spa system, Colour-changing Lights and Bluetooth audio. Max load: 30st / 185kg. Manufactured in the UK.
The Renaissance Excel 400 with 340mm of height adjustment, helps to prevent carers from hurting their backs while assisting and washing client users. The bath does not feature a seat. With hoist panels (front and rear) this bath is designed for use with mobile hoists and ceiling track hoists with slings and/or cradles. 1700x750mm with an end waste. Optional luxury mesh changing top with head and side supports. Tap and shower options with TMV2 and TMV3 temperature control. Optional 12 Jet Air Spa system, Colour-changing Lights and Bluetooth audio. Max load: 30st / 185kg. Manufactured in the UK.
Excel 400 - 1700x750mm, Hoist Panels & Centre Waste
The Renaissance Excel 400 with 340mm of height adjustment, helps to prevent carers from hurting their backs while assisting and washing client users. The bath does not feature a seat. With hoist panels (front and rear) this bath is designed for use with mobile hoists and ceiling track hoists with slings and/or cradles. 1700x750mm with a centre waste. Optional luxury mesh changing top with head and side supports. Tap and shower options with TMV2 and TMV3 temperature control. Optional 12 Jet Air Spa system, Colour-changing Lights and Bluetooth audio. Max load: 30st / 185kg. Manufactured in the UK.
The Renaissance Excel 400 with 340mm of height adjustment, helps to prevent carers from hurting their backs while assisting and washing client users. The bath does not feature a seat. Supplied with Full front and rear panels, this bath is designed for use with ceiling track hoists, slings and/or cradles. 1800x800mm with an end waste. Optional luxury mesh changing top with head and side supports. Tap and shower options with TMV2 and TMV3 temperature control. Optional 12 Jet Air Spa system, Colour-changing Lights and Bluetooth audio. Max load: 30st / 185kg. Manufactured in the UK.
The Renaissance Excel 400 with 340mm of height adjustment, helps to prevent carers from hurting their backs while assisting and washing client users. The bath does not feature a seat. With hoist panels (front and rear) this bath is designed for use with mobile hoists and ceiling track hoists, slings and/or cradles. 1800x800mm with an end waste. Optional luxury mesh changing top with head and side supports. Tap and shower options with TMV2 and TMV3 temperature control. Optional 12 Jet Air Spa system, Colour-changing Lights and Bluetooth audio. Max load: 30st / 185kg. Manufactured in the UK.
Luxury Changing Top (Use with 1700x750mm end waste bath) - Excel 100 and 400
Removable changing top, for use with 1700 x 750mm End Waste Baths, Renaissance Excel 100 and 400. Machine washable mesh top. Optional Head and Side Cushions.
Luxury Changing Top (Use with 1800x800mm End Waste bath) - Excel 100 and 400
Removable changing top, for use with 1800 x 800 End Waste Baths, Renaissance Excel 100 and 400. Machine washable mesh top. Optional Head and Side Cushions.
Deck mounted TMV2 bath / shower mixer with bottom exit hose and shower kit. (Not suitable for use with Excel 400 with Changing Top). Supplied fitted and plumbed with bath.
TMV3 Shower System with Shepherd's Crook, CAT5 Fluid Safe
Renaissance TMV3 Shower System with Shepherd's Crook, CAT5 Fluid Safe, with deck mounted Hot and Cold shower control valves. The Shepherd's Crook prevent the shower hose entering the bath water, thereby preventing back syphoning and contamination of the water supply. Supplied fitted and plumbed with bath.
For Renaissance Lenis, Valens, Talis and Excel baths. Push button air spa, 12x jets, 3x speed heated air bath system. A relaxing jacuzzi effect with auto-dry.
Factory fitted, chromotherapy underwater colour-changing lights, relaxes the user while bathing. 2x control settings; one allows the colours to change continually, the other holds it on a specific colour.
Bluetooth Audio System, with a built-in speaker system that uses the bath as an amplifier, allowing you to stream music from any Bluetooth enabled device. The chrome knob is for the volume control.
Select this option to have your bath commissioned by a Renaissance installer. (Excludes installation). A highly recommended service for all powered Renaissance baths. The LOLER inspection ensures safe use of the bath and for the manufacturer warranty.
Made to order (Info)
Please Email for a lead time
